LED Strip Profiles & Channels: Premium Aluminum Housing Solutions

Types of LED Strip Profiles

Surface Mount Profiles

Our surface mount LED strip aluminum profiles are designed for easy installation on walls, ceilings, and cabinets. These versatile channels create a sleek, professional finish while protecting your LED strips from dust and damage. Available in various depths to accommodate different strip widths and provide optimal heat dissipation.

Recessed Profiles

Create seamless, integrated lighting with our LED strip recessed channels. These profiles sit flush within surfaces, offering a minimalist look with maximum impact. Perfect for modern interiors, these ceiling LED strip channels can be installed in drywall, wood, or tile for clean, shadow-free illumination.

Corner Profiles

Our LED strip corner profiles are specifically designed for 90° installations, allowing you to highlight architectural edges with precise, continuous light. These corner aluminum LED strip channels ensure perfect illumination around corners without visible gaps or inconsistencies.

Angled Profiles

The angled LED strip profile collection offers options at 30°, 45°, and 60° angles to direct light exactly where you need it. These profiles are ideal for under-cabinet lighting, display cases, and feature highlighting where directed light creates the desired effect.

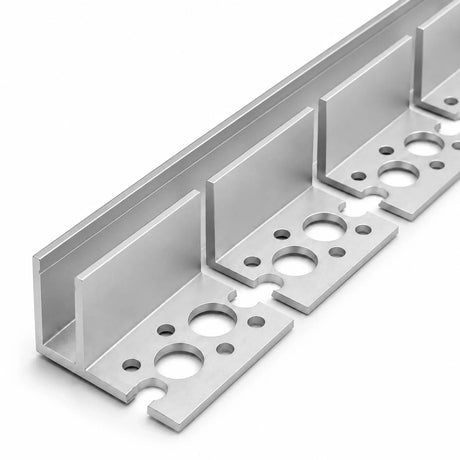

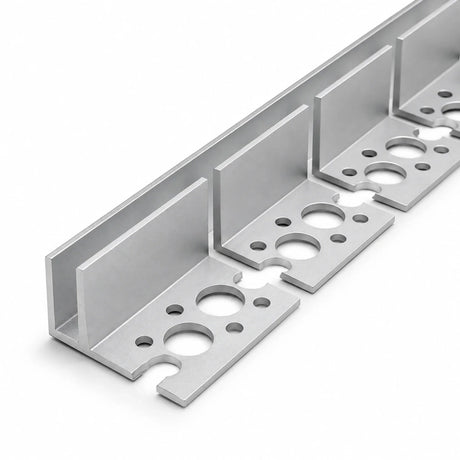

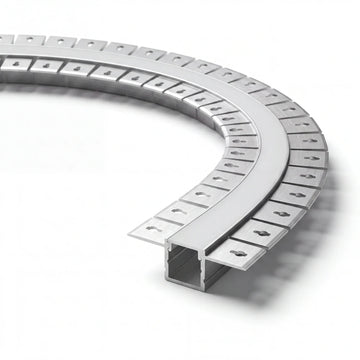

Bendable Profiles

Our bendable LED strip channels and flexible LED strip channels allow for creative, curved installations that follow architectural features or create custom shapes. These LED strip curved profiles can be gently shaped to achieve smooth, continuous lighting along curved surfaces.

Material & Quality Features

Premium Aluminum Construction

Our aluminium LED strip channels are crafted from high-grade anodized aluminum that offers superior heat dissipation, extending the lifespan of your LED strips. The LED strip in aluminium profile combination creates a professional finish while ensuring optimal performance.

Diffuser Options

Each LED strip profile cover is available in multiple diffuser options:

• Clear: Maximum brightness with visible LEDs
• Frosted: Balanced light output with reduced LED visibility
• Opal: Smooth, homogeneous light with no visible LED dots



Finish Variations

Choose from silver anodized (standard), white, or LED strip profile black finishes to complement your interior design. Our black LED strip channel options provide a sophisticated, contemporary look that pairs beautifully with modern décor.

Application Solutions

Indoor Commercial Applications

• Retail displays and shelving illumination
• Office space accent and indirect lighting
• Restaurant and hospitality mood lighting
• Museum and gallery exhibit highlighting

Residential Solutions

• Kitchen under-cabinet task lighting
• Ceiling LED strip channel installations for cove lighting
• Staircase and hallway safety lighting
• Home entertainment ambient lighting
• Wardrobe and closet illumination

Specialized Applications

• Outdoor LED strip profiles for garden and patio lighting
• Tile edge LED strip light channels for bathroom and kitchen feature lighting
• Drywall LED strip channels for seamless ceiling integration
• Display case and cabinet internal lighting

How to Choose the Right LED Strip Profile

Consider Your LED Strip Dimensions

Ensure your LED strip mounting channel is compatible with your LED strip width. Our profiles accommodate strips from 8mm to 20mm wide, with specific models designed for high-density and COB strip lighting.

Evaluate Installation Location

For outdoor or humid environments, choose outdoor LED strip light channels with weather-resistant features. Interior installations offer more flexibility in profile selection.

Determine Mounting Method

Consider whether your installation requires surface mounting, recessing, or corner installation. Our LED strip mounting profiles include specific solutions for each scenario, complete with appropriate mounting hardware.

Consider Light Effect

Different diffuser options and profile shapes create varying lighting effects. Opal diffusers provide smooth, uniform light, while angled profiles direct illumination to specific areas.

Technical Specifications

Material Properties

• Construction: Anodized aluminum (standard) or plastic LED strip channels for specific applications
• Finish Options: Silver, white, or black anodized
• Heat Dissipation: Optimized thermal management design

Dimensions & Compatibility

• Width Accommodation: 8mm-20mm LED strips
• Standard Lengths: 1m and 2m sections (custom cutting available)
• Profile Heights: 7mm-15mm depending on model

Accessories Included

• End caps for clean termination
• Mounting brackets for secure installation
• Connectors for extended runs
• Diffuser covers in clear, frosted, or opal options

Installation Best Practices

Preparation

Measure carefully and mark installation locations before beginning. Ensure power connections are properly planned, particularly for longer LED strip lighting channel runs that may require multiple power injection points.

Mounting Considerations

Use mounting clips every 50cm for secure attachment. For recessed installations, ensure cutout dimensions match profile measurements exactly for a clean fit.

Professional Finish Tips

Install end caps for a polished appearance. When joining sections, use connecting pins to ensure perfect alignment of both the aluminum LED strip profiles and diffusers.

Frequently Asked Questions

Compare surface mounted versus recessed LED profiles

Surface-mounted profiles sit on top of the substrate and are quick to install and service, while recessed profiles are hidden for a flush, minimalist look but require cutting into the substrate and more precise installation.

What profile width fits a 12 millimetre LED strip?

Choose a profile with an internal channel at least 2–3 mm wider than the strip (so ~14–15 mm internal width) to allow for the strip, wiring tolerance and thermal expansion.

Best diffusers for even light distribution in profiles

Opal or frosted diffusers are best for even, dot-free light; they sacrifice a little raw lumen output for much smoother distribution compared with clear covers.

Profiles and channels rated for outdoor use and IP ratings

Outdoor-rated profiles use sealed end caps, gaskets and IP65–IP68 covers or housings; specify the IP rating based on exposure (IP65 for splash, IP67/IP68 for temporary/permanent immersion).

How to measure channel depth for flush mounting installations

Measure the total depth from the finished surface to the back of the recess and allow extra room for the diffuser and cable the internal depth must match profile height plus clearance for wiring and thermal expansion.

Which profile depth do I need for my LED strip?

Pick a depth that comfortably houses the strip and diffuser while allowing airflow; higher-power strips need deeper profiles (10–20 mm+), while low-profile strips can work in shallower channels (6–10 mm).

Can LED strip profiles be cut to custom sizes?

Yes aluminium profiles can be cut to length with a fine-tooth saw and plastic diffusers trimmed to match, but always deburr cuts and reseal ends for outdoor use.

Are your profiles suitable for outdoor use?

Many aluminium profiles are suitable outdoors when used with the correct IP-rated end caps and seals; always check the product’s IP and UV/finish specification before external installation.

How do I install LED strip profiles in corners or around curved surfaces?

Use corner-specific profiles or flexible/bendable profiles for curves; for tight radii, use segmented straight sections with mitred joins or dedicated curved profile systems.

What's the difference between surface mount and recessed profiles?

Surface mount profiles are installed on top of the surface and are easier to retrofit, while recessed profiles are embedded for a flush finish and a more architectural appearance that conceals the fixture.

Do I need special tools to install LED strip profiles?

Basic tools (fine-tooth saw, drill, screwdriver, file, silicone gun) are usually sufficient; specialized bending tools are helpful for flexible profiles or engineered curves but not always required.

How do diffusers affect light output?

Diffusers reduce visible LED dots and soften glare but cut raw lumen output slightly more opaque diffusers give smoother light but lower peak brightness.

Can I connect multiple profile sections together?

Yes profiles are normally joined using connectors, mitred corners, or couplers; ensure mechanical joins are secure and cable runs/junctions are properly sealed for outdoor use.

What are LED strip profiles and how do they differ from installing LED strips without channels?

Profiles are aluminium channels with diffusers that protect the strip, improve heat dissipation, and provide a finished look; installing strips without channels risks poorer thermal performance, visible LEDs, and a less durable finish.

What are the main types of LED strip profiles and where is each best used?

Surface profiles for retrofit and visible trims, recessed for flush architectural lines, corner profiles for 90° details, and bendable/flexible profiles for curves and custom shapes.

How do aluminium and plastic profiles compare in heat management, durability, and appearance?

Aluminium offers superior heat dissipation and a premium finish, while plastic profiles are cheaper, lighter and easier to shape but offer poorer thermal performance and potentially shorter life outdoors.

How do you choose the correct LED profile for different strip widths (8 mm, 10 mm, 12 mm, 20 mm)?

Match the internal channel width to the strip width plus clearance (~+2–3 mm); for wider strips (20 mm) choose deeper profiles that also accommodate wider diffusers and cables.

Best practices for cutting, drilling, and mounting LED profiles on ceilings, walls, and furniture

Measure and mark precisely, use a fine-tooth saw and deburr edges, pre-drill fixing holes, fix with appropriate screws or clips, and seal end caps and joins where needed for a clean, long-lasting finish.

How should diffusers, end caps, and mounting clips be used to complete a professional LED profile installation?

Insert the strip, snap in the diffuser, cap both ends to protect from dust/water, and use mounting clips at recommended intervals to prevent sagging; seal and cable-gland outdoor entries as required.

How much does an aluminium profile improve LED strip lifespan and brightness stability compared with bare mounting?

Aluminium profiles significantly improve heat dissipation, which reduces LED junction temperature and generally extends lifespan and maintains lumen output more consistently than bare mounting.

How do different diffuser types (opal, frosted, clear) change light distribution, dot visibility, and lumen output?

Opal/frosted diffusers produce smooth, dot-free light with reduced glare but lower measured lumen output; clear diffusers preserve maximum brightness but show individual LED points more readily.

When is a deeper or wider profile needed to achieve fully dotless “neon-style” lines of light?

Deeper/wider profiles are needed when using higher-density strips or when maximal diffusion is required; choose a profile that allows a larger diffuser and distance between LEDs and the cover to eliminate dotting.

How can recessed LED strip profiles be used for shadow gaps, ceiling coves, and wall washes?

Recessed profiles produce hidden light sources ideal for shadow gaps and coves, providing uniform indirect illumination and clean architectural lines for ceiling and wall wash effects.

Which profiles work best for under-cabinet, shelving, and wardrobe lighting to avoid glare and hotspots?

Shallow surface or corner profiles with opal diffusers and narrow beam strips are ideal to provide even task light without visible hotspots or glare.

How can corner and bendable profiles be used to highlight architectural details or create curves?

Corner profiles neatly conceal strips along 90° edges, while bendable profiles let you follow curved lines and organic shapes for signage, feature walls, and bespoke retail or hospitality installations.

What should specifiers look for when choosing LED strip profiles (height, internal width, finish, diffuser type, IP rating)?

Specify internal width to match strip size, profile height for mounting depth and thermal needs, finish to suit design, diffuser type for desired light quality, and IP rating for environmental protection.

How do UK suppliers bundle profiles with LED strips, drivers, and accessories to create complete linear lighting systems?

Suppliers commonly offer kits combining profiles, pre-cut diffusers, LED strips, compatible drivers, end caps, clips and glands so installers receive a matched system that simplifies specification and installation.
