LED Strip Light Controllers

Frequently Asked Questions

What are the main types of LED strip light controllers (dimmers, RGB/RGBW, pixel, DMX/DALI) and how do they differ?

Dimmers control brightness for single-colour strips, RGB/RGBW controllers mix colour channels, pixel controllers control each LED or segment individually, and DMX/DALI controllers use professional lighting protocols for large or commercial systems.

How do you choose the right controller for single-colour, RGB, RGBW, or addressable LED strips?

The controller must match the strip type (single-colour, RGB, RGBW, or addressable), the strip voltage, and have enough current capacity, while also offering the control features you need such as zones, scenes, or smart integration.

What is the difference between a driver (power supply) and a controller for LED strips?

A driver converts mains power into low-voltage DC electricity, while a controller manages brightness, colour, and effects by regulating how that power is delivered to the LED strip.

How do you calculate the correct controller current/wattage rating for a given LED strip run?

Multiply the strip’s wattage per metre by the total length, divide by voltage to find current, and choose a controller rated higher than this value to allow safe headroom.

How to match controller voltage and power requirements to strip?

The controller and power supply must match the strip’s rated voltage exactly (12V, 24V, etc.) and be able to handle the strip’s maximum current or wattage draw.

What are best practices for wiring controllers between the power supply and LED strips to avoid overload and voltage drop?

Keep cable runs short and adequately sized, inject power on long runs, avoid overloading controller channels, and place drivers close to the load whenever possible.

When is it necessary to use signal amplifiers or additional receivers for large LED strip installations?

Signal amplifiers or additional receivers are required when control signals weaken over long distances or when multiple long strip runs need to mirror the same effects without colour or brightness loss.

Which controller types work with RGBW versus addressable strips?

RGBW strips require multi-channel RGBW controllers, while addressable strips require pixel controllers capable of sending digital data to ICs such as WS2811 or WS2812.

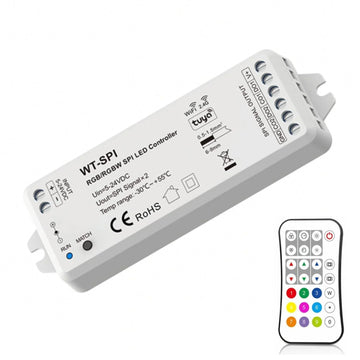

Which controllers are suitable for addressable/digital pixel LED strips (for example WS2811) and how do they differ from standard RGB controllers?

Pixel controllers output digital data to control each LED individually, whereas standard RGB controllers only adjust overall colour and brightness across the entire strip.

How do you calculate power draw per meter for pixel or RGB strips?

Use the manufacturer’s maximum wattage per metre specification at full output and multiply by total length, allowing extra capacity for peak loads during animations.

Which controller types work best for smartphone and voice control setups?

Wi-Fi or Bluetooth controllers with app support and compatibility with Alexa or Google Assistant are best for smartphone and voice-controlled lighting systems.

How can LED strip controllers integrate with smart home platforms like Alexa and Google Assistant?

Controllers integrate either directly via native cloud support or indirectly through smart home hubs and platforms such as Home Assistant or SmartThings.

What are the pros and cons of IR, RF, Wi-Fi, Bluetooth, and DMX control for LED strips?

IR is simple but requires line-of-sight, RF offers better range, Wi-Fi and Bluetooth enable smart features, and DMX provides robust, scalable control for professional installations.

What extra features do advanced controllers offer (multi-zone control, scenes, timers, music-sync)?

Advanced controllers allow multiple zones, programmable scenes, timers, scheduling, music-sync effects, and network control across large installations.

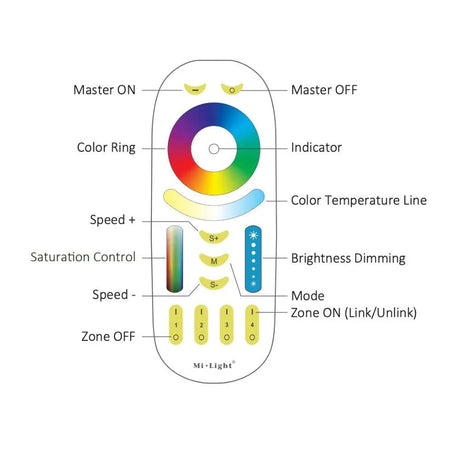

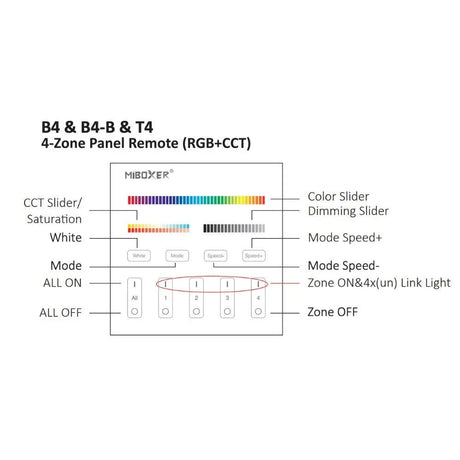

How do you wire multiple zones with a single controller?

Multiple zones can be wired using controllers with separate outputs or by pairing multiple receivers to one master controller, ensuring each zone has adequate power.

Can I control multiple zones?

Yes, provided the controller supports multi-zone operation either through multiple outputs or expandable receivers.

How many strips per controller?

The number of strips depends on the controller’s maximum current rating and channel limits; total strip load must not exceed these specifications.

Are controllers waterproof?

Some controllers are IP-rated for outdoor use, but many are indoor-only and must be installed inside weatherproof enclosures when used outdoors.

Top DMX controllers for professional LED strip installations and why they matter

DMX controllers are essential for professional projects because they provide precise timing, reliable signal distribution, and compatibility with industry-standard lighting systems.

When should installers specify DMX or DALI LED strip controllers for commercial or hospitality projects?

DMX or DALI should be specified when projects require centralised control, integration with building systems, or consistent lighting scenes across large spaces.

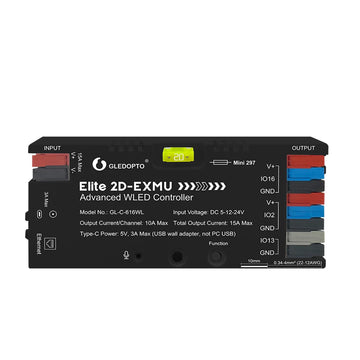

What software options exist for programming effects on pixel or DMX-controlled LED strip systems?

Common software includes WLED, xLights, Madrix, LightJams, and professional DMX lighting consoles or PC-based control platforms.

Why do some LED strip controllers cause flicker or poor dimming at low levels, and how can this be avoided?

Flicker is usually caused by incompatible dimming methods or low-quality components and can be avoided by using matched drivers and high-quality controllers with appropriate PWM frequency.

What should buyers compare when selecting a controller (voltage range, max current, protocol, remote type, certifications, warranty)?

Buyers should compare voltage compatibility, current capacity, control protocol, ease of use, safety certifications, IP rating, and warranty support.

How do UK-focused buying guides recommend pairing controllers, drivers, and strips for typical home and garden projects?

UK guides typically recommend low-voltage systems with sufficient power headroom, weatherproofing for outdoor installs, and simple app-based controllers for ease of use.

Which controller suits my installation?

The best controller depends on strip type, voltage, total load, control method, and whether the project is residential, outdoor, or commercial.
