Black Aluminium LED Corner Profile 16×16mm, Opal Diffuser – 1 & 2 Metre
In stock
Description

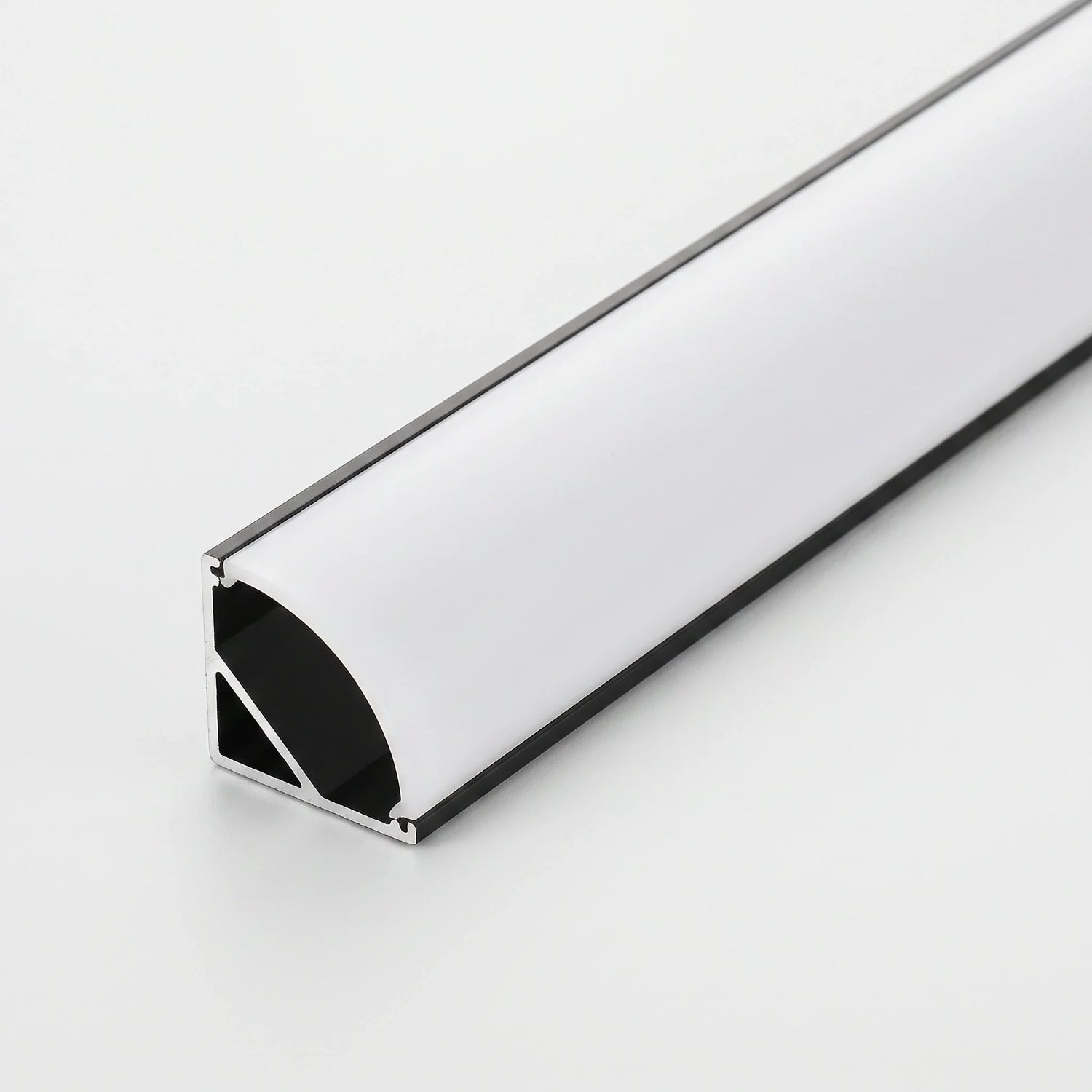

Mount LED strip neatly at 45° across an internal corner with this black 16 × 16 mm aluminium profile. It accepts strip up to 10 mm wide and is supplied with an opal diffuser. Choose 1 Metre or 2 Metre.
Choose your length
- 1 Metre: suited to shorter sections and standard profile delivery.
- 2 Metre: reduces joins on longer runs; long-goods delivery applies.
Applications

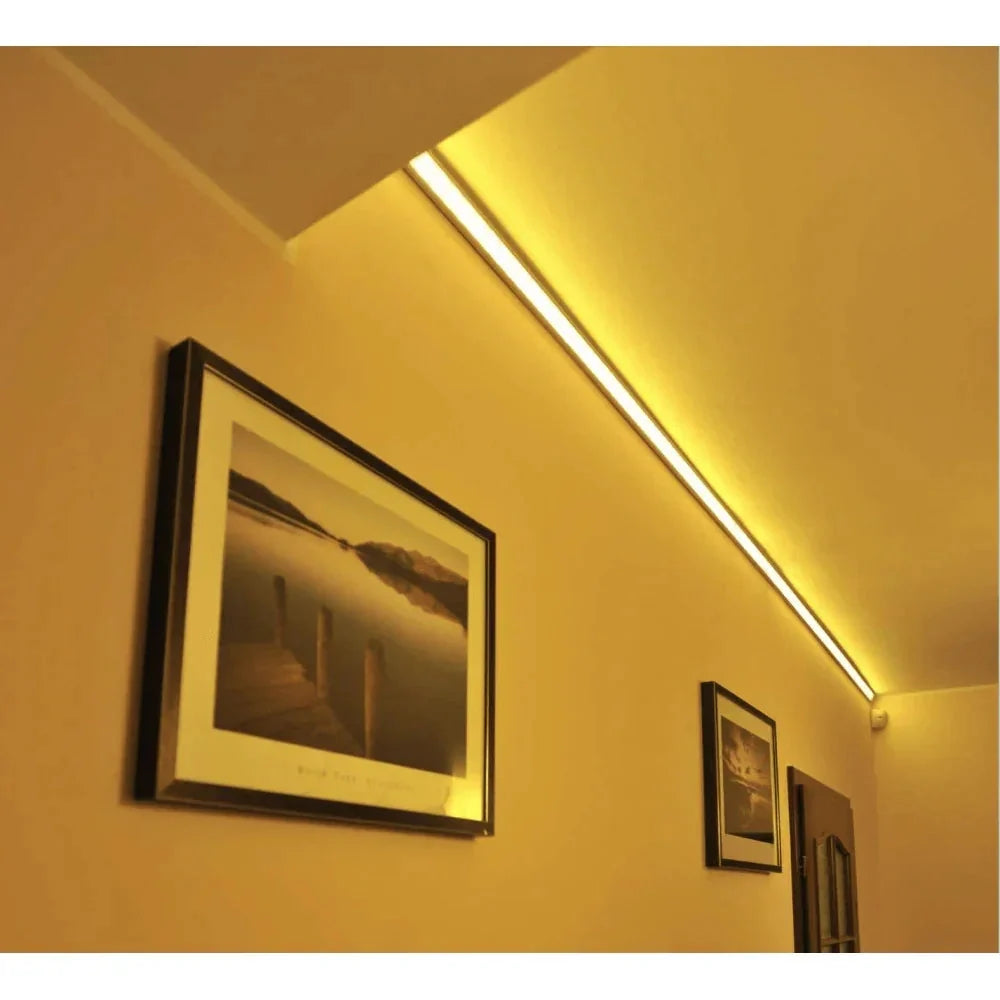

Suitable for dry indoor corner installations in dark joinery, media walls, shelving, wardrobes, cabinets and stair details.
Installation
Fix the mounting clips with suitable screws, install the LED strip inside the channel, then fit the diffuser and end caps. Cut the aluminium and diffuser separately with a suitable fine-tooth blade.
What is included?

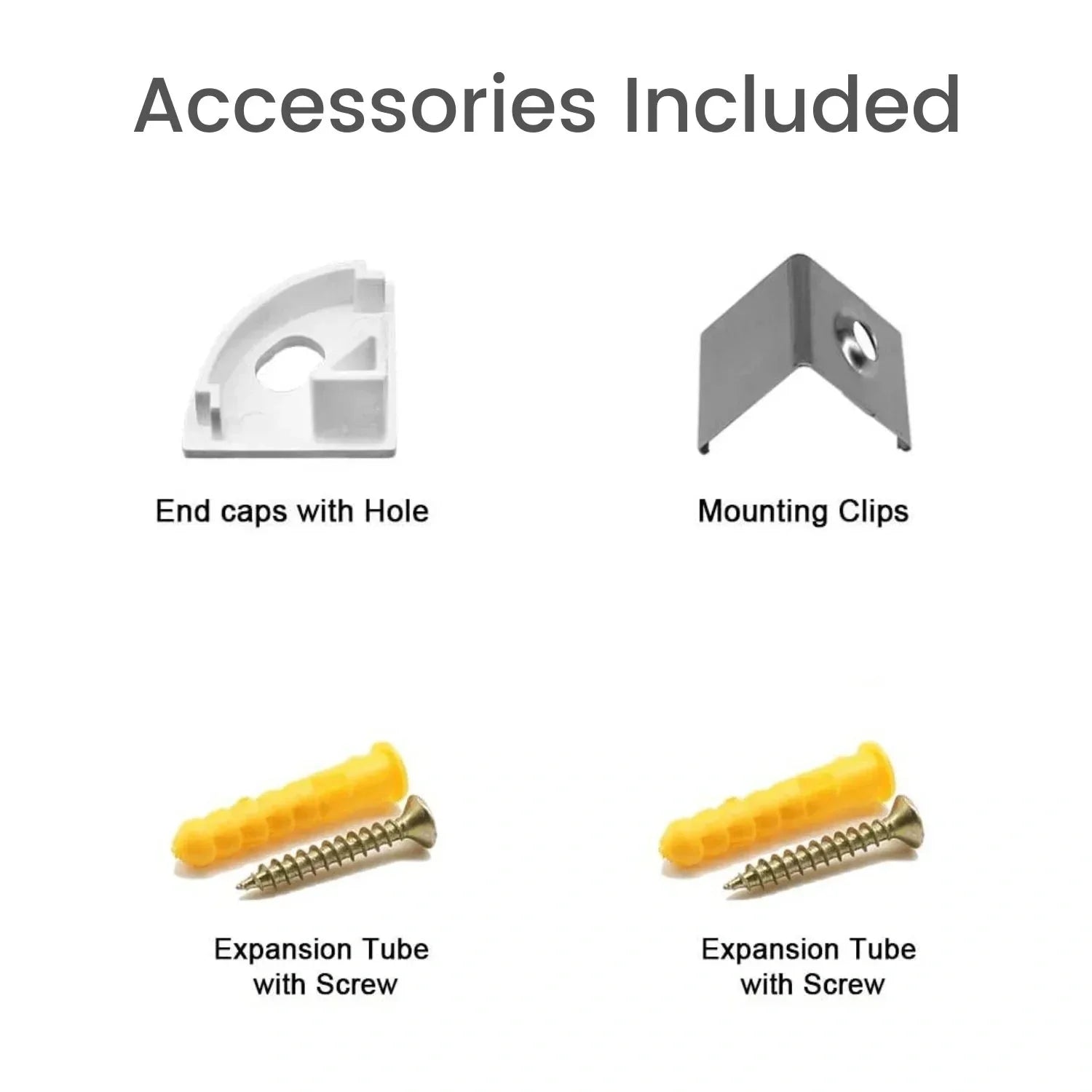

Black aluminium profile in the selected length, opal diffuser, end caps and mounting clips.
LED strip, Neon Flex, drivers and electrical connections are not included unless stated separately. Browse the full aluminium LED profile range.
Delivery charges
- 1 Metre: Mainland UK standard delivery is £6.95 on orders under £90. Eligible orders of £90 or more receive free Next Day Delivery.
- 2 Metre: Mainland UK long-profile delivery is £19.85 at every order value, including mixed baskets.
If a basket also contains a specified 2.45 Metre or longer rigid profile, the £34.85 long-profile rate applies instead. The applicable delivery charge is shown at checkout.
Specifications
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Light colour
- Black
- IP rating
- IP20
- Dimensions
- 16mm x 16mm
- Width
- 16mm
- Depth
- 16mm
- Material
- Black anodised aluminium, opal diffuser
- Warranty
- 7 Years
