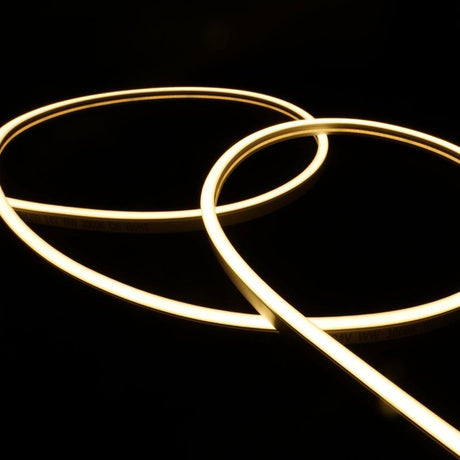

12V Single Colour Neon Flex: Precision LED Lighting for Creative Projects

Key Features & Advantages

Precision Customization

Our Cuttable 12V Neon Flex Every 1cm provides industry-leading cutting precision, allowing for exact measurements and minimal waste. This exceptional customization capability enables the creation of intricate letters, complex logos, and precise shapes that perfectly match your design specifications.

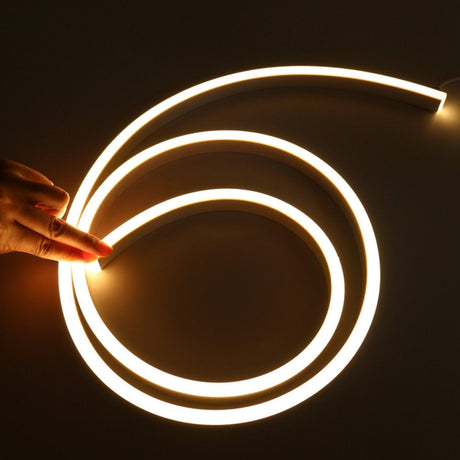

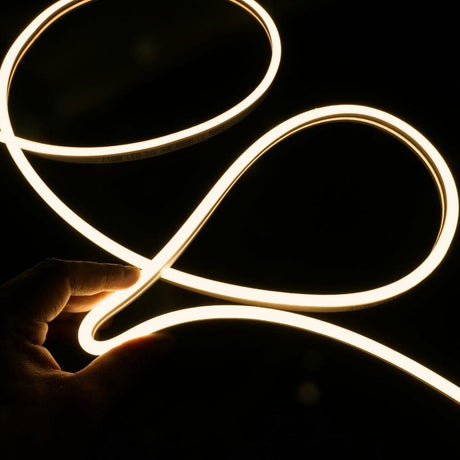

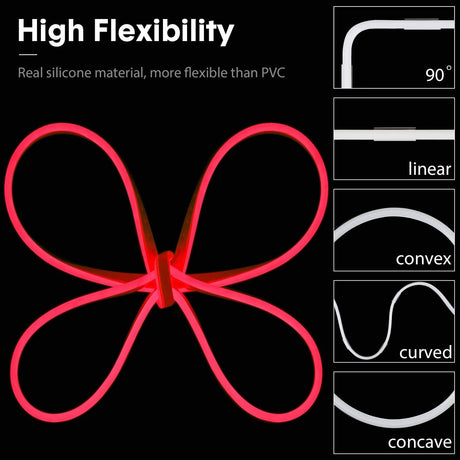

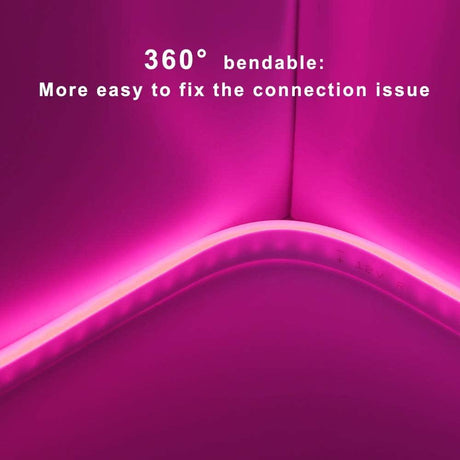

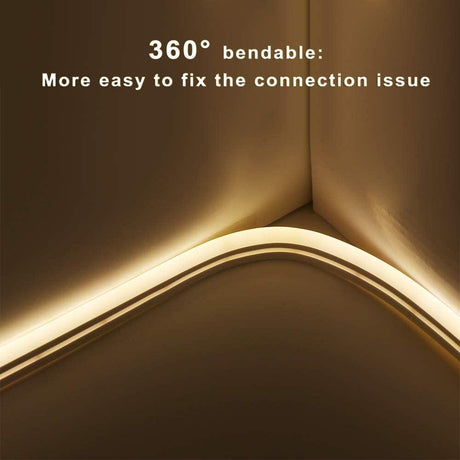

Ultra-Flexible Design

Experience unparalleled design freedom with our Super Flexible 12V Neon Flex. The highly pliable silicone construction bends easily in multiple directions, allowing for tight curves, sharp angles, and complex shapes that would be impossible with standard LED products.

Compact Dimensions

Choose from our range of compact profiles, including 6x12mm Mini Neon Flex 12V and 8x16mm Neon Flex 12V options. These streamlined dimensions enable the creation of smaller, more intricate designs while maintaining exceptional brightness and uniform illumination.

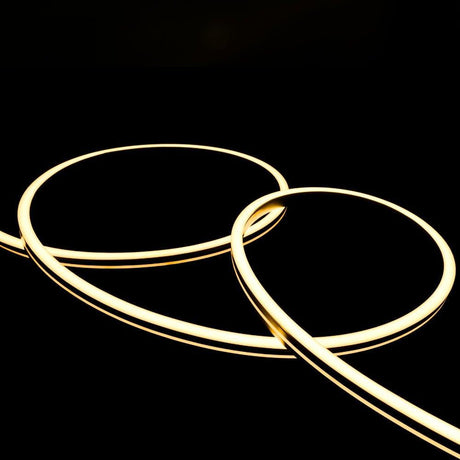

Seamless Illumination

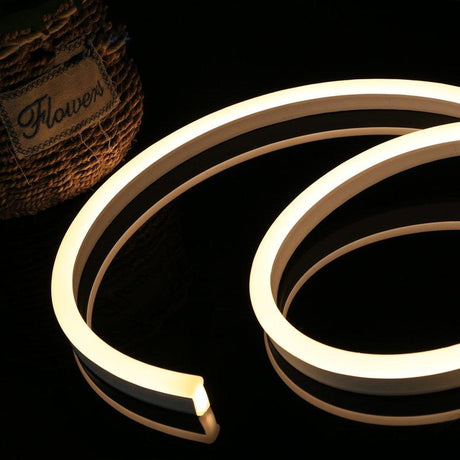

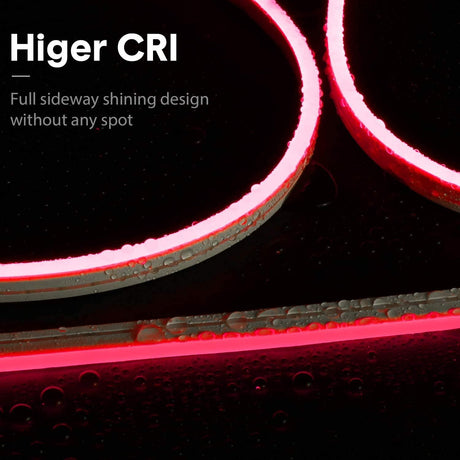

Our Dotless 12V Neon Flex technology eliminates visible LED points, creating a smooth, continuous light output that resembles traditional glass neon. This seamless illumination ensures professional-looking results for signage, logos, and decorative installations.

Weather Resistance

Select from various environmental protection ratings to suit your installation requirements: Splash-Proof 12V Neon Flex IP65 for standard outdoor use, Waterproof 12V Neon Flex IP67 for enhanced protection, or Submersible 12V Neon Flex IP68 for water features and extreme conditions.

Product Specifications

Technical Details

• Voltage: 12V DC operation for safety and compatibility

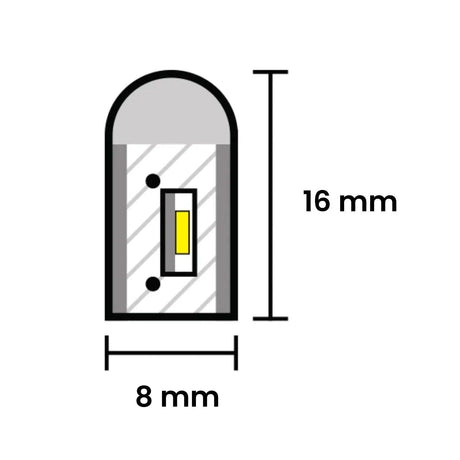

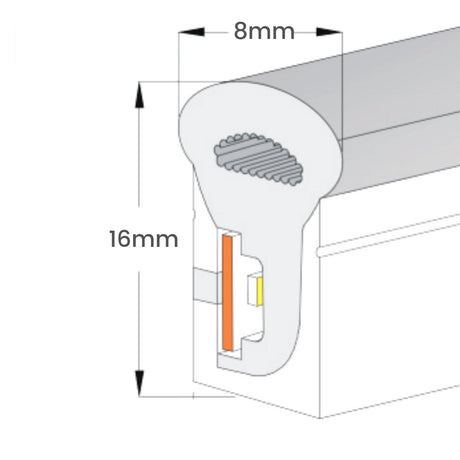

• Dimensions: Available in 6x12mm Mini Neon Flex 12V and 8x16mm Neon Flex 12V profiles
• Cutting Intervals: Precision 12V Neon Flex 1cm Cut Intervals for exact customization
• Light Output: High-Brightness 12V Neon Flex with uniform, dotless illumination
• Maximum Run Length: Typically 5-10 meters per power supply (model-dependent)

Construction & Durability

• Material: Silicone-Coated 12V Neon Flex with UV stabilizers
• Flexibility: Flexible 12V Neon Flex for Shapes with multi-directional bending
• Weather Protection: Available in IP65, IP67, and IP68 ratings
• Temperature Range: Operational from -20°C to +60°C
• Lifespan: 30,000+ hours of operational life

Customization Options

• Variable Lengths: 12V Neon Flex Variable Lengths with 1cm cutting precision
• Bending Direction: Side-bend or top-bend options depending on model
• Colour Selection: Extensive range of consistent, vibrant colours

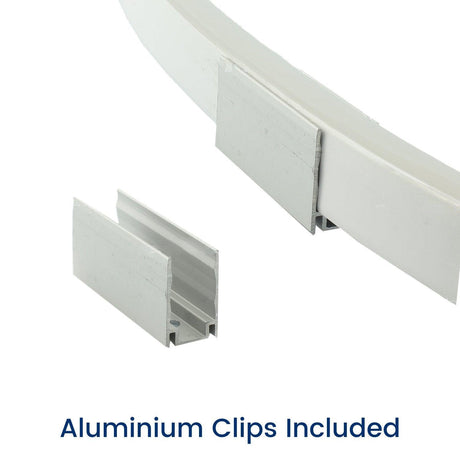

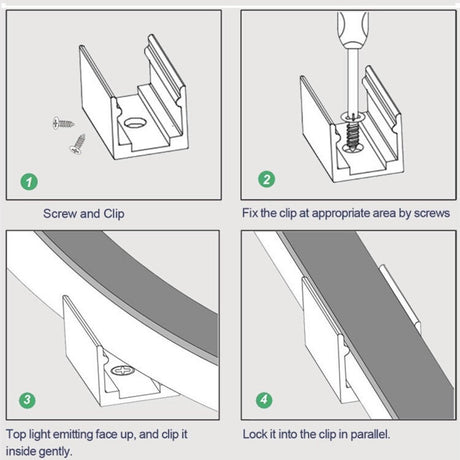

• Mounting Methods: Multiple installation options including channels, clips, and adhesives
• Connection Types: Various power and extension connection options available

Quality Assurance

• Warranty: 12V Neon Flex with 2-Year Warranty for peace of mind
• Certifications: CE, RoHS, and UL compliant
• Testing: 100% quality checked before dispatch
• Support: Technical advice and installation guidance available

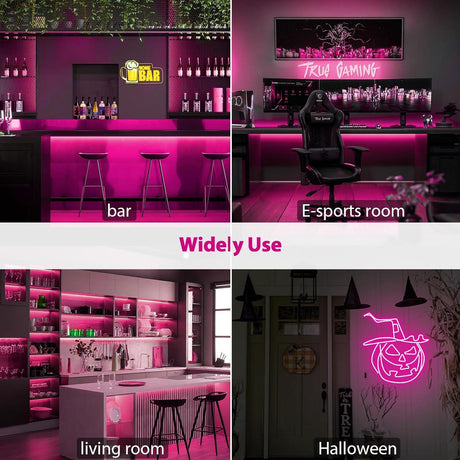

Perfect For Creative Applications

Custom Signage

Create eye-catching business signs and branding elements with 12V Neon Flex for Neon Signs. The precise cutting intervals and exceptional flexibility allow for accurate reproduction of fonts and intricate designs, while the dotless illumination provides a premium, professional appearance.

• Business name displays
• Open/Closed and promotional signage
• Menu boards and information displays
• Decorative window displays
• Interior feature signage

Logo Reproduction

Bring brands to life with vibrant, illuminated logos using 12V Neon Flex for Custom Logos. The exceptional flexibility and precise cutting capability enable faithful reproduction of complex logo designs with clean lines and smooth curves.

• Retail branding elements
• Reception area corporate logos
• Exhibition stand branding
• Hospitality venue feature logos
• Event and promotional branding

Architectural Accents

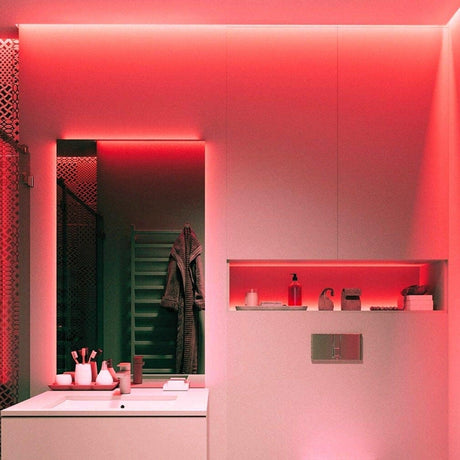

Add elegant lighting details to architectural features with 12V Neon Flex for Architectural Lighting. The compact dimensions and flexible installation options allow for seamless integration into various architectural elements.

• Cabinet and shelf underlighting
• Ceiling coving and cornices
• Stair and banister illumination
• Feature wall highlighting
• Architectural detail emphasis

Exhibition & Retail Displays

Create standout displays and exhibition elements with 12V Neon Flex for Exhibition Displays and 12V Neon Flex for Commercial Signage. The lightweight construction and simple power requirements make it ideal for temporary installations where visual impact is crucial.

• Exhibition stand highlighting
• Product showcase enhancement
• Temporary event structures
• Retail display illumination
• Point-of-sale feature lighting

Domestic & Decorative Projects

Transform home interiors with creative lighting using 12V Neon Flex for Domestic Decor. The safe low-voltage operation and flexible installation options make it perfect for DIY projects and custom home lighting features.

• Custom word art and quotes
• Children's room decorative elements
• Home bar and entertainment area features
• Feature wall art and decorative motifs
• Holiday and special occasion lighting

Professional Design Advantages

Exceptional Design Flexibility

The combination of precise cutting intervals and multi-directional flexibility allows for unprecedented design freedom. Create complex shapes, intricate letters, and detailed logos with smooth curves and clean lines that perfectly match your design vision.

Simplified Installation Process

The lightweight construction and 12V operation simplify the installation process, reducing complexity and specialized equipment requirements. The flexible nature of the product also makes it more forgiving during installation, allowing for minor adjustments on-site.

Superior Visual Quality

Our dotless technology creates seamless illumination without visible LED points, providing a premium visual appearance that resembles traditional glass neon but with greater durability, safety, and energy efficiency.

Custom Project Support

From concept to completion, we provide expert guidance for Bespoke 12V Neon Flex Projects. Our technical team can assist with design considerations, material selection, and installation advice to ensure successful implementation of your creative vision.

Frequently Asked Questions

What power supply size do I need for 12V neon flex per metre?

Use the strip’s watts per metre (W/m) from the datasheet; per metre power equals that W/m value, and current per metre = (W/m) ÷ 12 V (for example, 12 W/m → 12 ÷ 12 = 1 A per metre).

How to calculate voltage drop for 12V neon flex runs?

Calculate current (I = total watts ÷ 12V), then use Vdrop = I × R (where R is conductor resistance for the round-trip length); reduce drop by thicker cable or shorter runs and inject power where needed.

Best IP rating for outdoor 12V neon flex installations?

For exposed outdoor use choose IP67 (temporary immersion and strong splash protection); IP65 is acceptable for sheltered areas, while IP68 is needed for submerged applications.

How to join two sections of 12V neon flex safely?

Use manufacturer-approved waterproof joiners or solder on the marked pads, maintain correct polarity, and fully seal the joint with adhesive-lined heatshrink or silicone potting to restore IP protection.

Recommended transformer types for 12V DC neon flex?

Use a regulated, isolated constant-voltage 12V DC LED driver (switch-mode) sized above the calculated load with short-circuit/thermal protection and good efficiency.

What makes 12V neon flex ideal for custom signs and logos?

Its low voltage, tight bend radii, and small profiles allow precise shaping into letters and detailed shapes while keeping installation and electrical safety simpler than mains solutions.

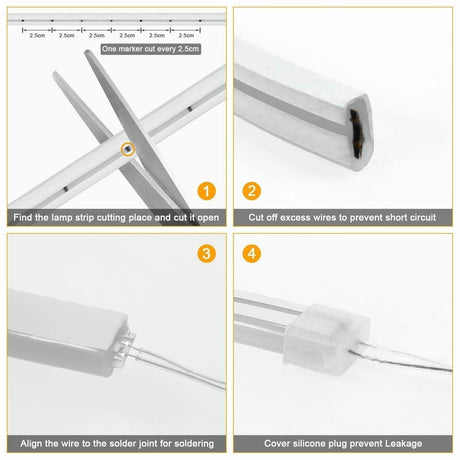

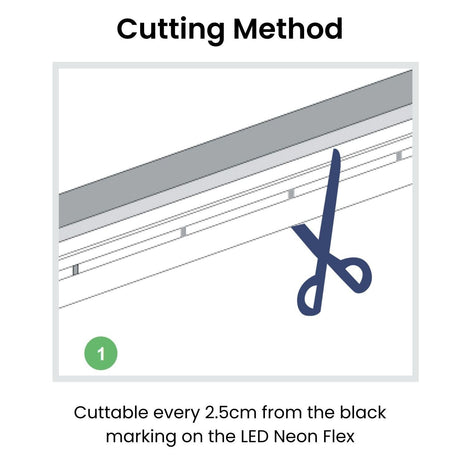

How do I cut and connect 12V neon flex?

Cut only at manufacturer-marked cut points, reconnect with approved solder or clip connectors, and reseal the joint and ends to maintain waterproofing and mechanical strength.

What power supply do I need for 12V neon flex?

Sum the total watts (W/m × metres) and choose a 12V DC supply rated ~20–30% higher than that total to provide safe continuous operation and account for inrush.

What's the difference between the 6×12 mm and 8×16 mm neon flex?

The 8×16 mm profile is larger, usually brighter and stiffer with a larger bend radius and higher lumen output, while 6×12 mm is slimmer with tighter bends and is better for discreet or close-view applications.

Is 12V neon flex suitable for outdoor use?

Yes, provided you choose an appropriate IP-rated product and ensure all cuts, end caps and connections are correctly sealed and installed in suitable mounting systems.

How tight can I bend the neon flex?

Respect the manufacturer’s minimum bend radius smaller profiles allow tighter bends (often a few centimetres) but always check the datasheet to avoid kinking or damage.

What does the 2-year warranty cover?

Warranties usually cover manufacturing defects in materials and workmanship but exclude damage from improper cutting, incorrect installation, water ingress from poor sealing, or abuse check the supplier’s T&Cs.

Can I create my own designs, or do you offer custom fabrication?

Both are common: many suppliers sell DIY lengths and fittings while also offering custom-bent, factory-finished shapes and bespoke fabrication services for signage and trade orders.

What is 12V Single Colour Neon Flex, and how does it differ from 24V and 230V single-colour flex in safety and performance?

12V Neon Flex is a low-voltage, easy-to-install option best for short runs and mobile applications; 24V reduces voltage drop for longer runs, and 230V is mains-level for very long continuous runs but requires mains-grade installation and higher safety measures.

When is 12V Single Colour Flex the best choice compared with 24V for UK projects?

Pick 12V for small, intricate, or mobile projects (furniture, camper-vans, close-view signage) where tight bends and low-voltage safety are priorities; use 24V when runs exceed a few metres and you want fewer injection points.

How does voltage drop affect 12V Single Colour Flex runs, and what run lengths are realistically achievable?

Voltage drop is more limiting at 12V practical single-feed runs typically max out around 3–6 metres before brightness loss becomes noticeable, depending on W/m and cable gauge.

How should 12V Single Colour Flex be wired to a driver and dimmer for safe operation in homes, shops, or vehicles?

Connect the flex to the 12V DC output of a regulated LED driver, place the driver in a ventilated, accessible location, and use a dimmer or controller rated for constant-voltage 12V loads (PWM modules or drivers with 0–10V input) following polarity and manufacturer wiring diagrams.

What is the maximum recommended run length of 12V Single Colour Flex from a single feed before you need to inject power again?

As a rule of thumb, inject power every 3–6 metres for typical 12V neon flex; adjust based on measured voltage drop, conductor size, and brightness tolerance.

How do you cut, terminate, and mount 12V Single Colour Flex while keeping its IP rating for kitchens, bathrooms, or outdoor signs?

Cut at marked points, fit manufacturer end caps and adhesive heatshrink or silicone potting, mount in appropriate channels/clips, and ensure cable glands and junctions are sealed to preserve IP protection.

What types of signage and logo designs are best suited to 6×12 mm 12V Single Colour Flex with 1 cm cut intervals?

Fine lettering, logo outlines, and close-view indoor signage where tight bends and frequent cuts are needed suit small-profile 6×12 mm flex with short cut intervals.

How can 12V Single Colour Flex be used for shelving, plinth, and furniture lighting where space is tight and light is visible close-up?

Recess the slim profile into shallow channels or edge trims to give uniform, low-glare illumination for plinths, shelves and under-cabinet accents without visible LED dots.

Is 12V Single Colour Flex suitable for camper-van, caravan, or vehicle interior lighting, and what should installers consider?

Yes 12V matches vehicle electrical systems; use automotive-grade wiring, fuses at the supply, secure mounts for vibration, and water-resistant terminations where moisture exposure is possible.

Which dimming options are compatible with 12V Single Colour Flex for flicker-free control?

PWM dimmer modules designed for 12V LED loads, constant-voltage drivers with 0–10V control inputs, or compatible smart PWM controllers provide flicker-free dimming avoid cheap, unlisted dimmers.

How does the lifetime and lumen maintenance of 12V Single Colour Flex compare with standard 12V LED strips in aluminium profiles?

Neon flex’s encapsulation often gives better mechanical and environmental protection, so lumen maintenance is similar or slightly better than bare LED strips, though aluminium profiles provide superior heat sinking for very high-power strips.

What common issues occur with 12V Single Colour Flex and how can they be avoided?

Common problems are voltage drop (causing dim ends), poor seals (water ingress), and overheating from inadequate ventilation; avoid them with correct power injection, proper sealing, and mounting to dissipate heat.

What should buyers look for when choosing 12V Single Colour Flex (cut length, lumen/m, CRI, bend direction, warranty)?

Check the W/m and lumen/m spec, cut interval, minimum bend radius (top/side bend), IP rating, CRI if colour fidelity matters, recommended operating voltage, and warranty/aftercare terms.

How do UK suppliers like UK LED Lights, Atom LED, and others position 12V Single Colour Flex for DIY users versus trade installers?

Suppliers typically offer pre-terminated, easy-install kits and short pre-cut lengths for DIY, while trade customers can buy bulk reels, custom fabrication, and extended warranties or technical support for professional installations.
