Tile-In Aluminium Profile 6×12mm IP67 Neon Flex 1 metre & 2 Metre
In stock
Description
Create a neat, flush line of light in tiled floors or walls with this straight tile-in aluminium profile for 6 × 12 mm IP67 Neon Flex. Choose 1 Metre or 2 Metre.

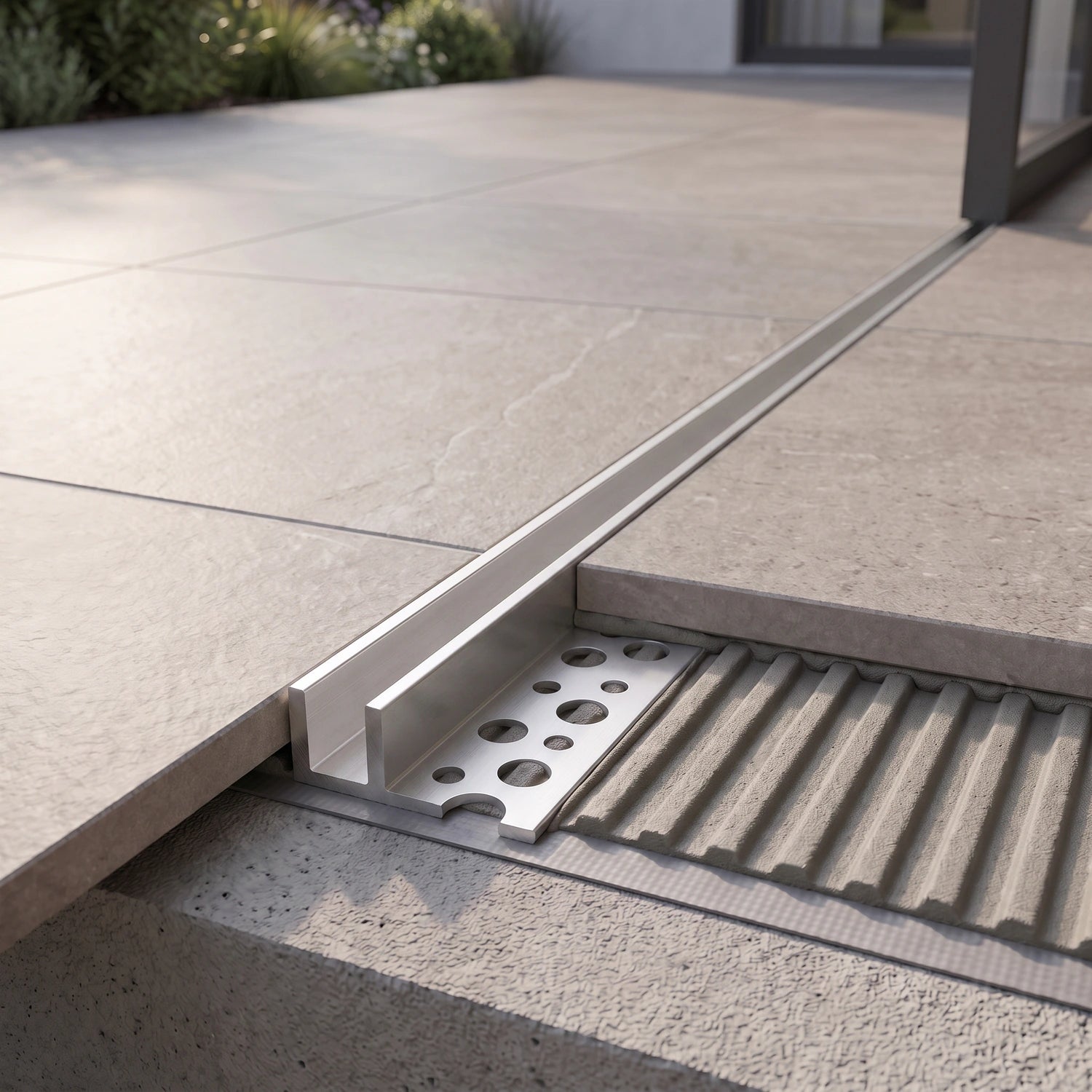

The asymmetric perforated flange beds beneath the tiled or paved finish, allowing suitable adhesive or bedding material to key around the aluminium while the channel remains aligned with the finished surface.
Key features
- Selected for UK LED Lights 6 × 12 mm IP67 Neon Flex
- Compatible with the linked 24V and 48V Neon Flex ranges
- Straight, rigid aluminium channel with one perforated tile-in flange
- Available in 1 Metre and 2 Metre lengths
- 7-year warranty
Applications
Suitable for recessed linear-lighting details in tiled floors and walls where the complete lighting system, substrate and installation method are appropriate for the location. For specification help, contact the UK LED Lights technical team or tell us about a bespoke lighting project.
Compatible 6 × 12 mm IP67 Neon Flex
- 24V Neon Flex - 1 cm cut points, up to 15 m
- 24V Neon Flex - 5 cm cut points, up to 20 m
- 48V Neon Flex - 10 cm cut points, up to 40 m
Profile only: Neon Flex, fixings and accessories are not included. Browse the complete LED Neon Flex Channels & Tracks range.
Before ordering
This profile is matched to the linked UK LED Lights ranges. Products described as 6 × 12 mm can vary between manufacturers, so check compatibility before using another Neon Flex. This is a straight profile and is not bendable.
IP67 refers to the compatible Neon Flex, not the bare aluminium profile or completed installation. Select suitable sealing, drainage, fixings and substrate preparation for the environment.
Delivery charges
- 1 Metre: Mainland UK standard delivery is £6.95 on orders under £90. Eligible orders of £90 or more receive free Next Day Delivery.
- 2 Metre: Mainland UK DX delivery is £19.85 per order at every order value, including mixed baskets.
If a Mainland UK basket contains any rigid profile longer than 2 metres, the £34.65 DX rate applies once to the order instead, including mixed baskets and orders over £90. The applicable delivery charge is shown at checkout.
For Northern Ireland and the Republic of Ireland, delivery of rigid profiles 2 metres or longer is £39.85 per order by DX. See our delivery information for charges and exceptions.
Specifications
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Light colour
- Silver
- IP rating
- Compatible with IP67 Neon Flex

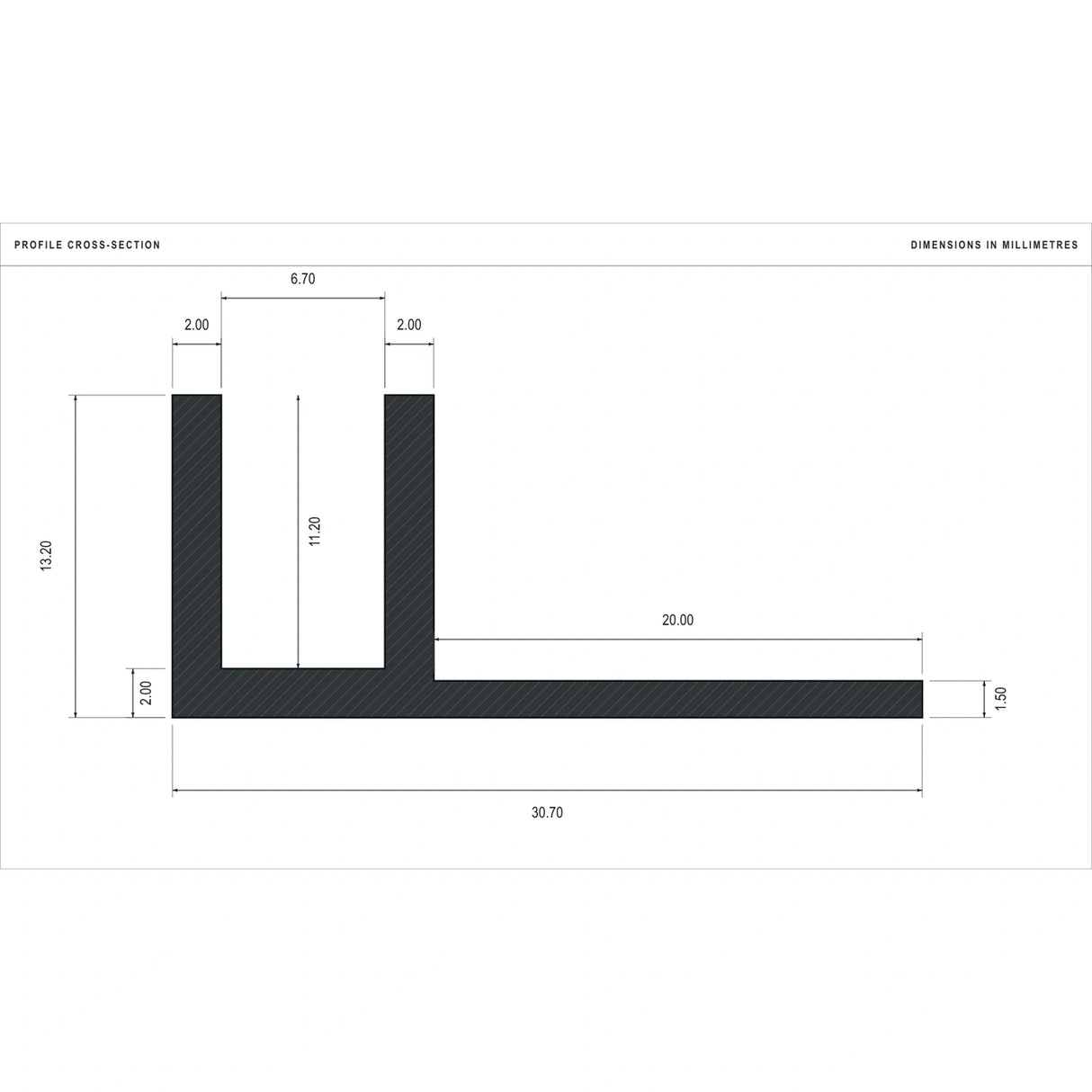

- Dimensions
- 30.70 mm wide × 13.20 mm high
- Width
- 30.70 mm
- Depth
- 13.20 mm
- Material
- Aluminium
- Warranty
- 7 Years
Technical Documents
-
Technical Documents
Shipping & Returns
Delivery
We use DPD, Royal Mail and DX. Available services, costs and delivery estimates are shown at checkout for your address. Mainland UK rigid profiles exactly 2m are £19.85 per order by DX; rigid profiles longer than 2m are £34.65 per order by DX, including mixed baskets and orders over £90. To Northern Ireland and the Republic of Ireland, rigid profiles 2m or longer are £39.85 per order. Established bendable-profile and flexible-cover exceptions remain on their applicable services. Made-to-measure products may require additional preparation time.
Returns
Eligible unused standard products can be returned in line with our published policy. Products cut or prepared to your measurements cannot be cancelled or returned once preparation has started unless they are faulty.
Read our shipping policy and returns policy before ordering a custom-cut item.
