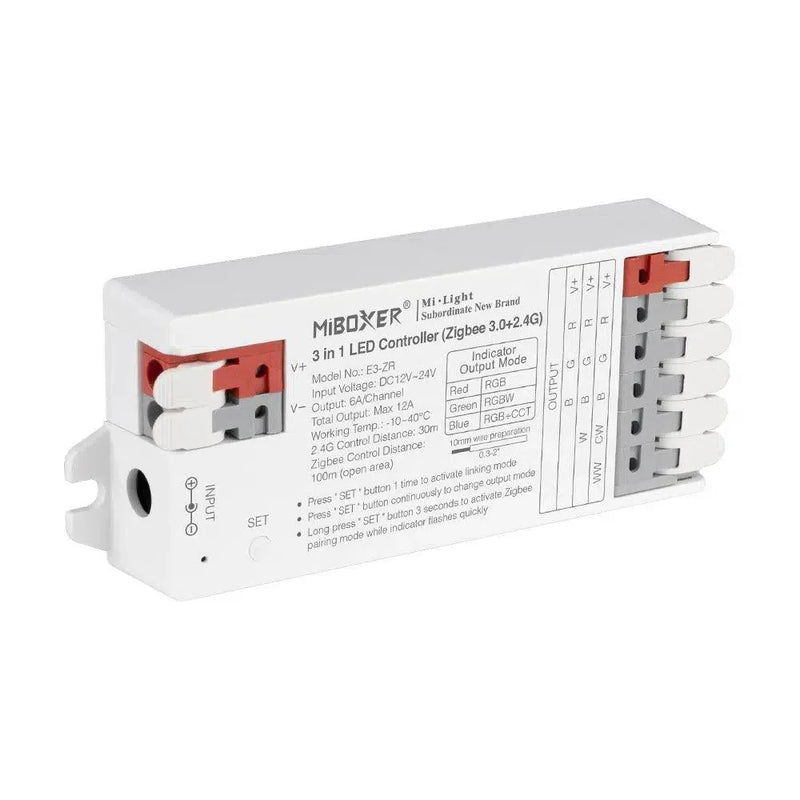

Miboxer Zigbee 3.0 E3-ZR 3 in 1 LED Light Strip Controller 12V-24V

User Manual:

Tool-free instant wiring
• Tool-free instant wiring
• Product follow zigbee 3.0 standard protocol 2.4G
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)
• Works with Philips Hue, connect with Philips Hue App
• Conect with Google Home & Amazon Alexa, required Zigbee 3.0 Gateway

Crafted with advanced Zigbee 3.0 wireless tech, this LED Light Strip Controller embraces low power, auto-networking, and anti-interference qualities. It seamlessly pairs with the MiBoxer Zigbee gateway to enable wireless dimming color, remote control, timing, group coordination, music rhythm functions, and 2.4G RF remote control support. Perfect for enhancing lighting experiences.

Specification:
Product - 3 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model - E3-ZR
Colour - RGB, RGBW, RGB+CCT
Input Voltage - DC 12V - 24V
Output - 6A/Channel
Total Output - 12A Max
Communication Protocol - Zigbee 3.0 + 2.4GHz
Control Distance - Zigbee: 100m (open area) 2.4G RF: 30m
IP Rating - IP20
Working Temperature - -10~40°C
Wireless Technology - Zigbee 802.15.4
Wireless Frequency - 2.400-2.480GHz
Size - 100.6mm x 40mm x 17.6mm
