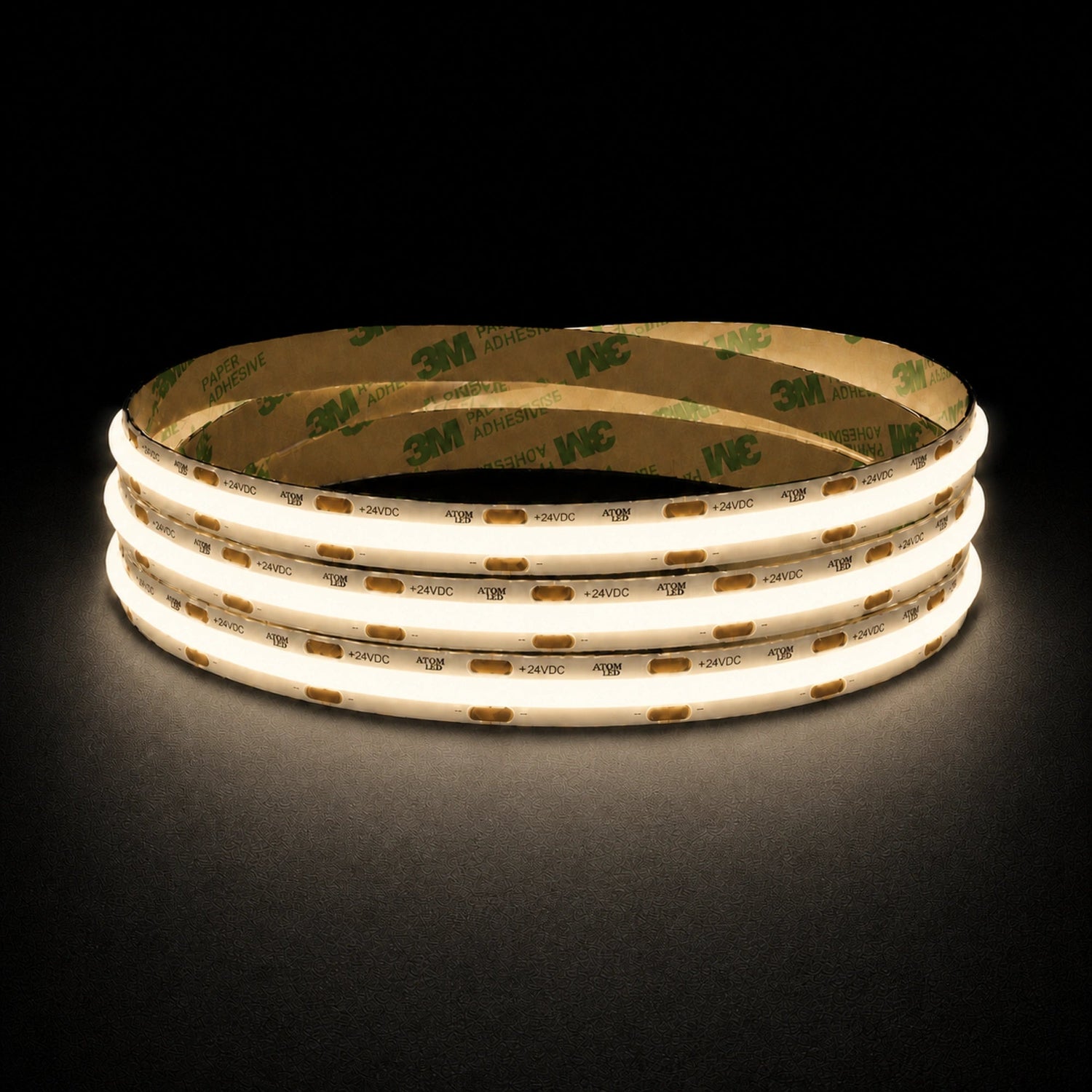

Under Cabinet COB LED Strip | White 10mm 24V IP20 50mm Cut
In stock
-
IP20 indoor
-
24V DC
-
20m run
-
7 years
Under Cabinet COB LED Strip | White 10mm 24V IP20 50mm Cut - Warm White 2700K / 1 Metre is backordered and will ship as soon as it is back in stock.
Description

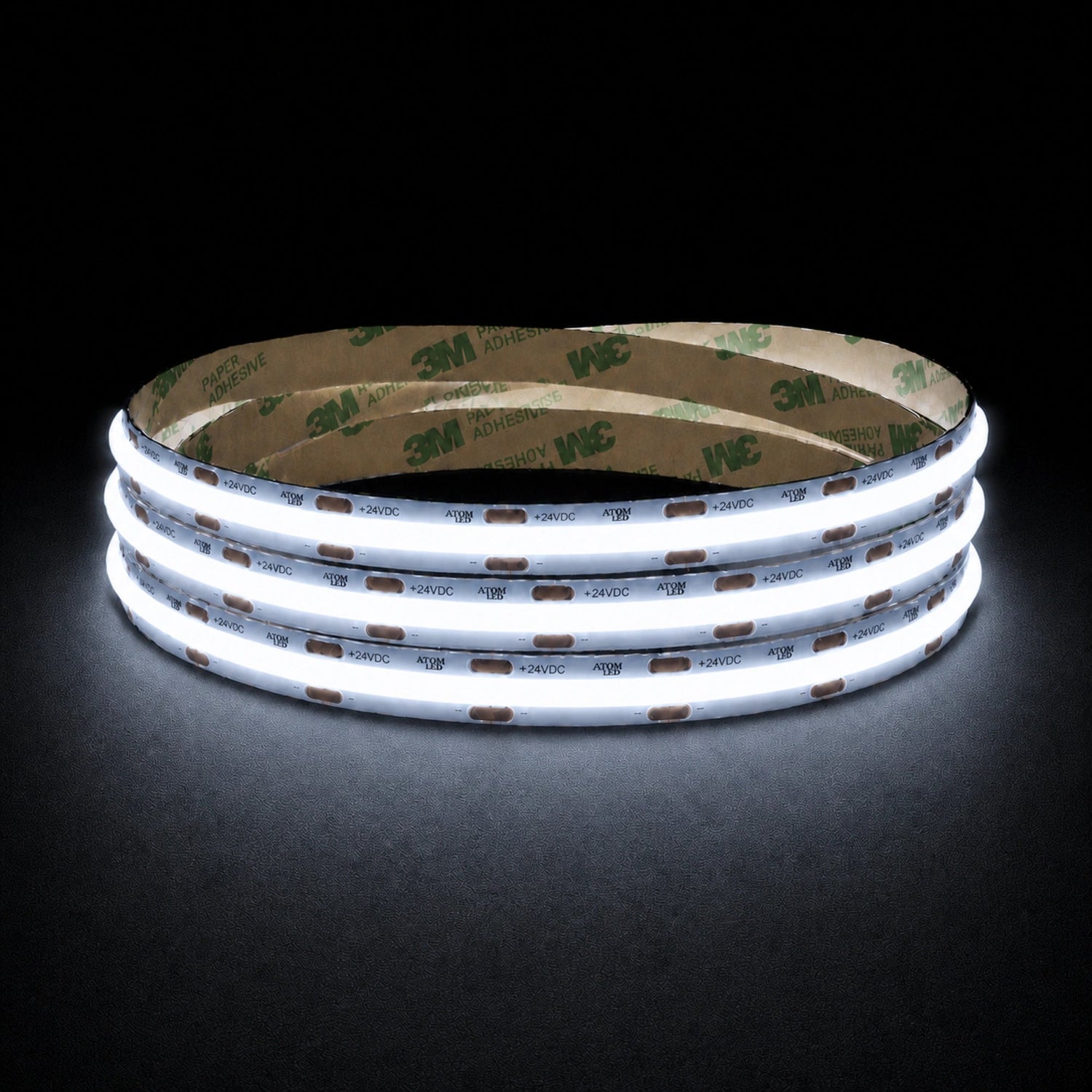

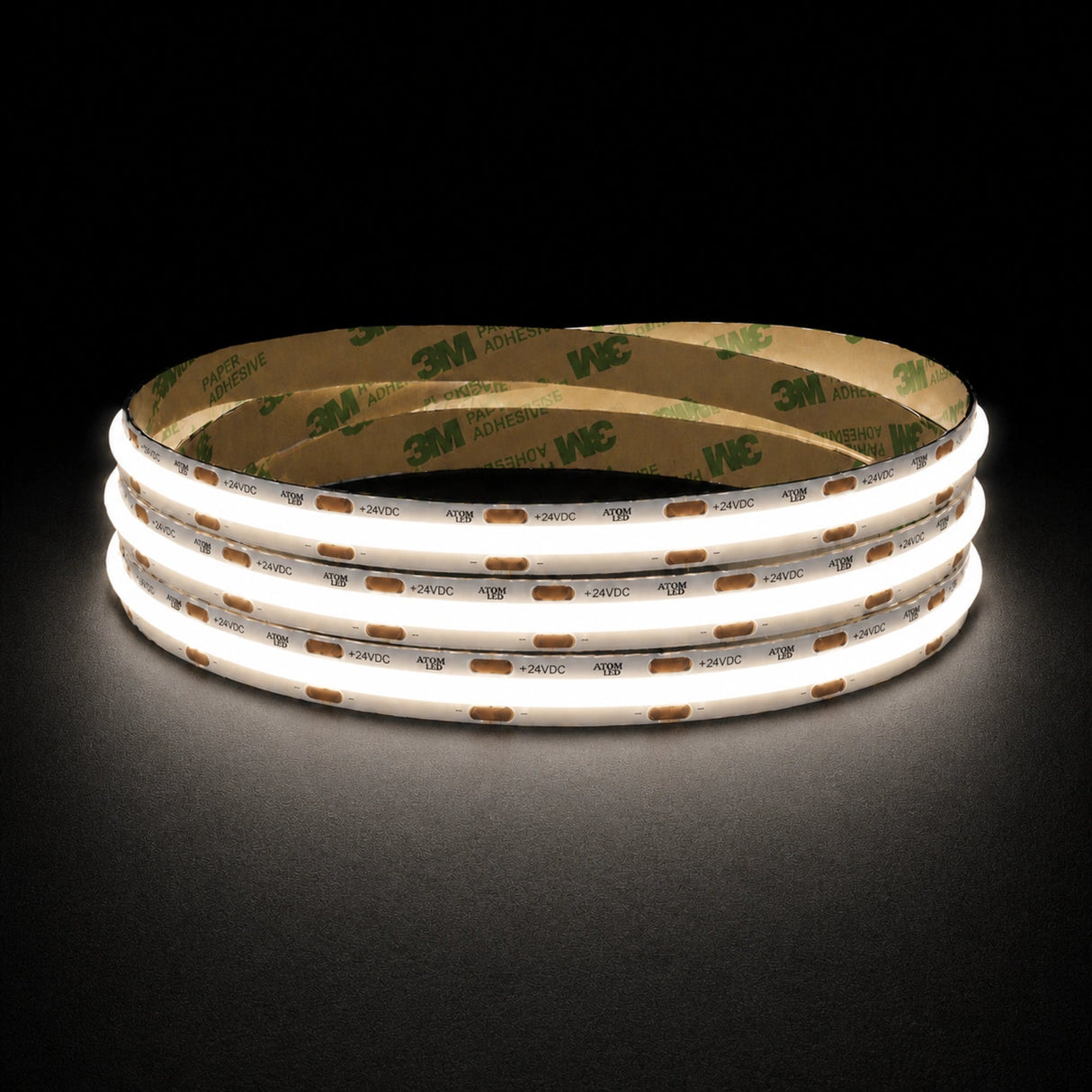

Under Cabinet COB LED Strip lights kitchen worktops with an even line beneath wall units. Choose warm, natural or cool white to suit your cabinetry, then select the length for your layout. This ATOM LED strip is for dry indoor kitchen cabinet lighting, not wet or exposed areas.
Which white colour should I choose?

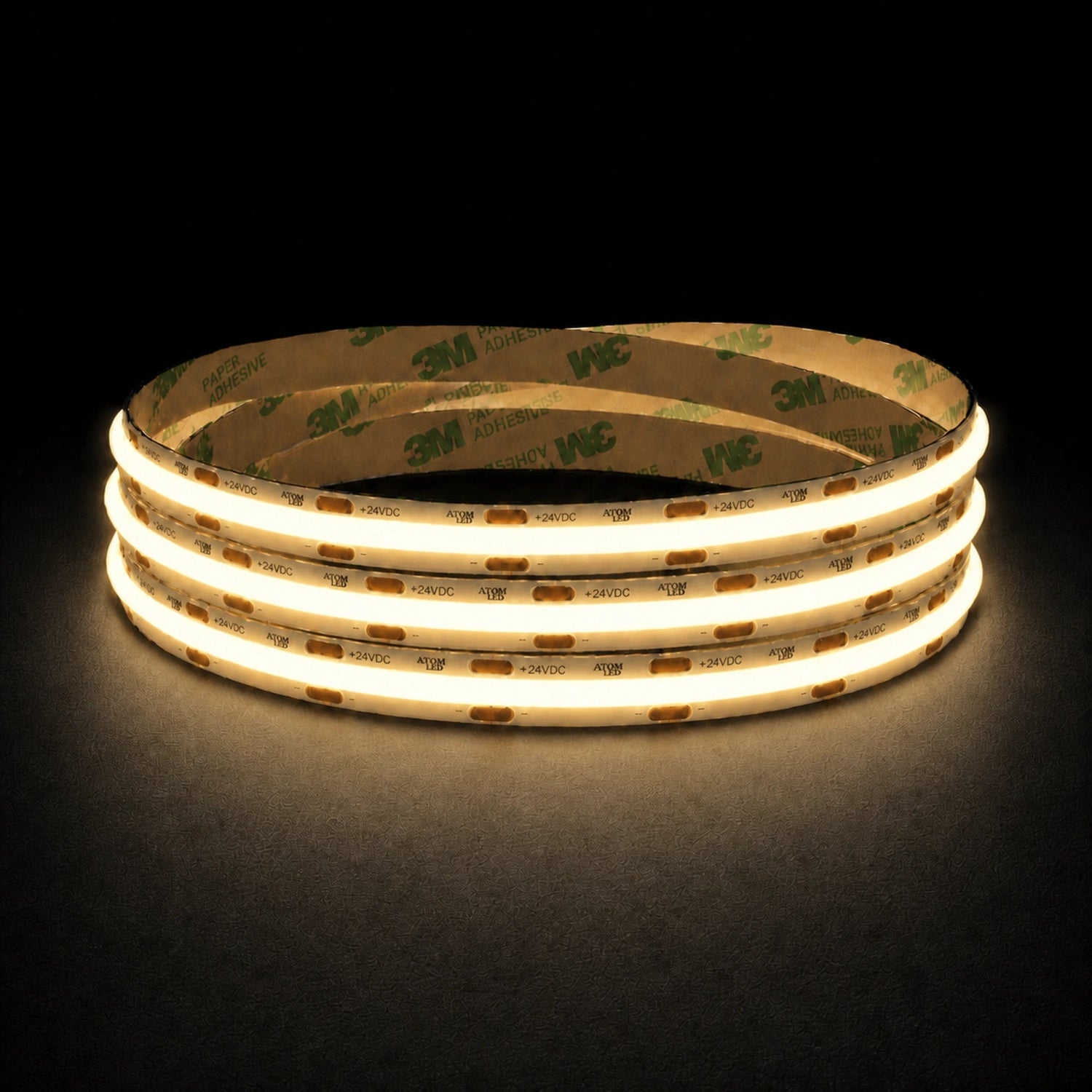

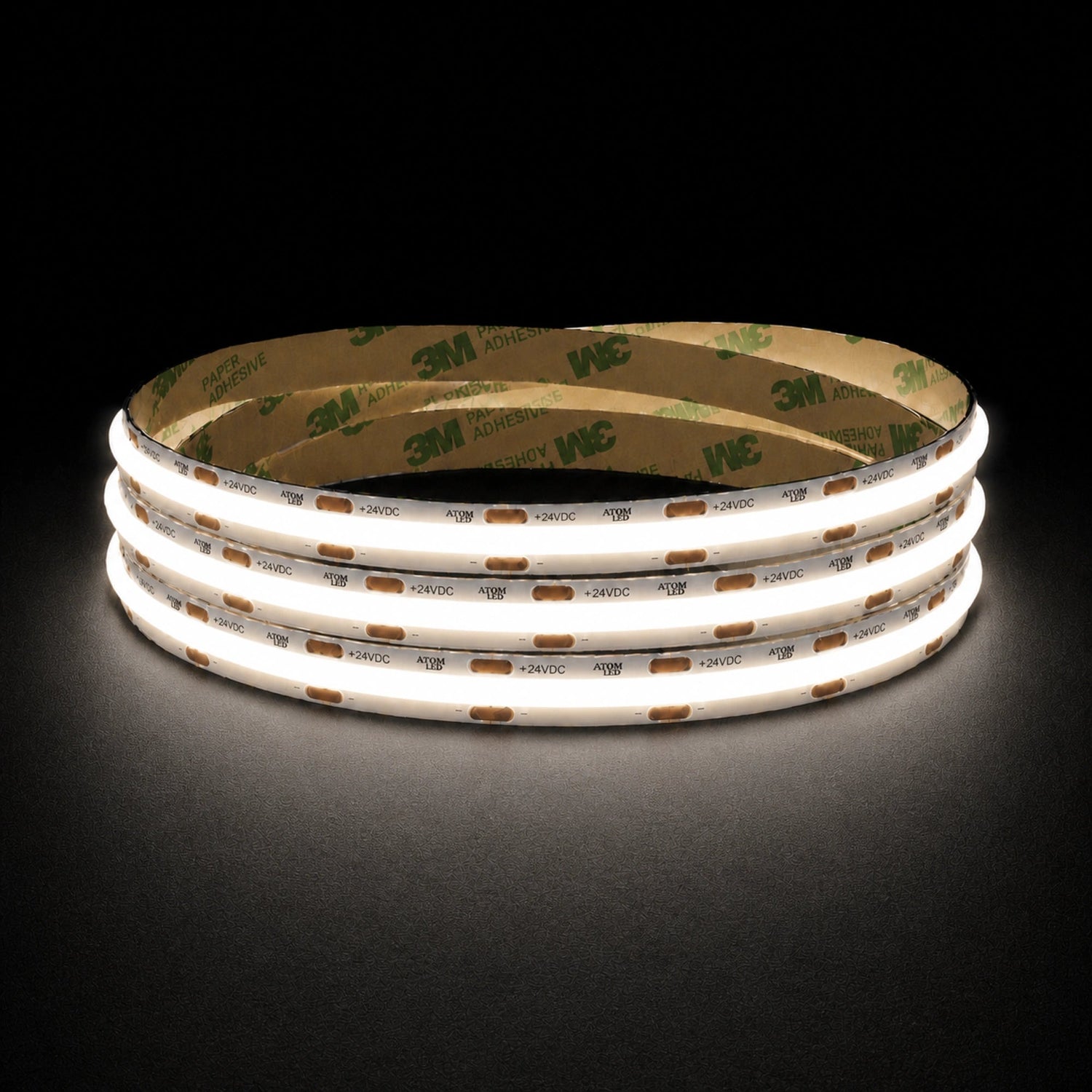

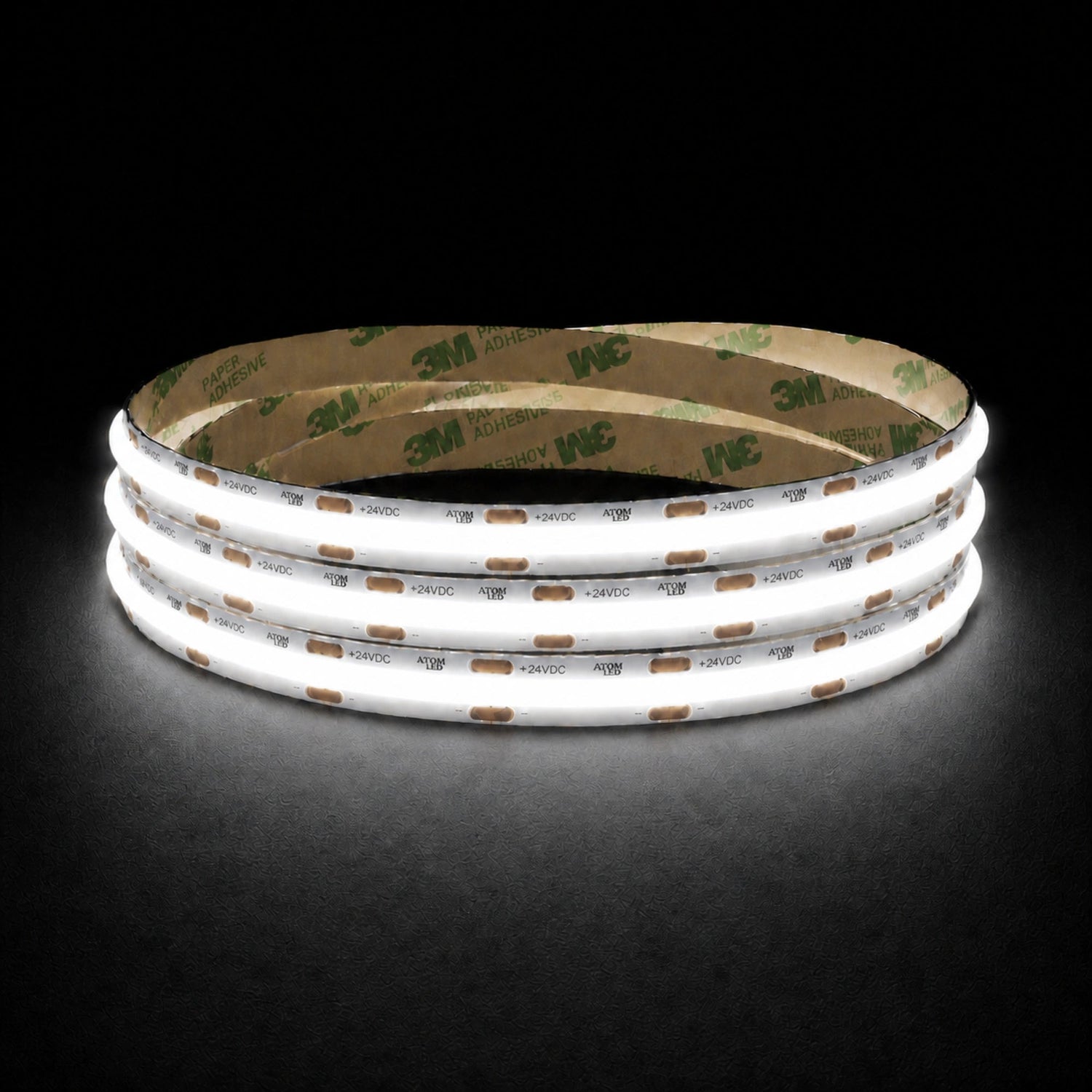

2700K gives a golden warm white; 3000K is a softer warm white. Choose 4000K for a neutral worktop appearance, 5000K for daylight white or 6500K for a cooler finish. These are five separate fixed-white options, not one colour-adjustable strip.
How do I fit it under a kitchen cabinet?
Check that your aluminium profile has room for a 10mm strip, connections and cable entry. Position it underneath the wall unit to light the work surface. Keep this IP20 version away from sink splashes, hob steam and condensation. Unwind fully before operating and isolate power before cutting or connecting.
What size 24V driver do I need?
Multiply length by 7.5W/m and allow at least 25% extra capacity, following the driver's loading guidance. For 5m, 37.5W × 1.25 = 46.9W, so choose a suitable 24V constant-voltage driver rated at least 50W. A driver is required and is not included; never connect the strip directly to mains.
Can I order an exact cabinet length?
Choose a 1–20m length or enter a made-to-measure request. Cutting follows the 50mm (5cm) marks. A 2.3m request is charged as the 3m length, with the requested cut recorded separately. Select the cable length needed to reach your supply. Keep each continuous section within 20m.

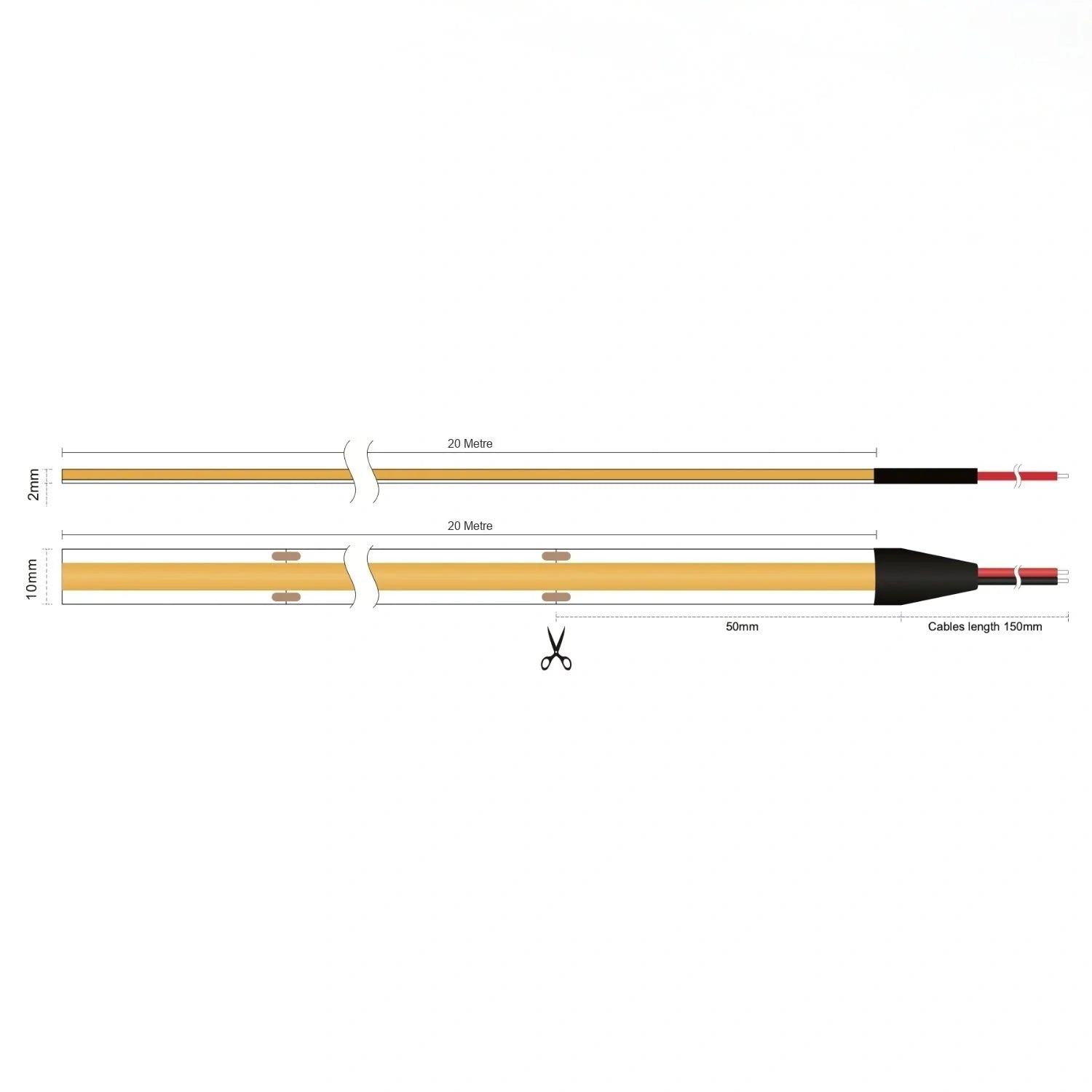

Dimensions for cabinet fitting

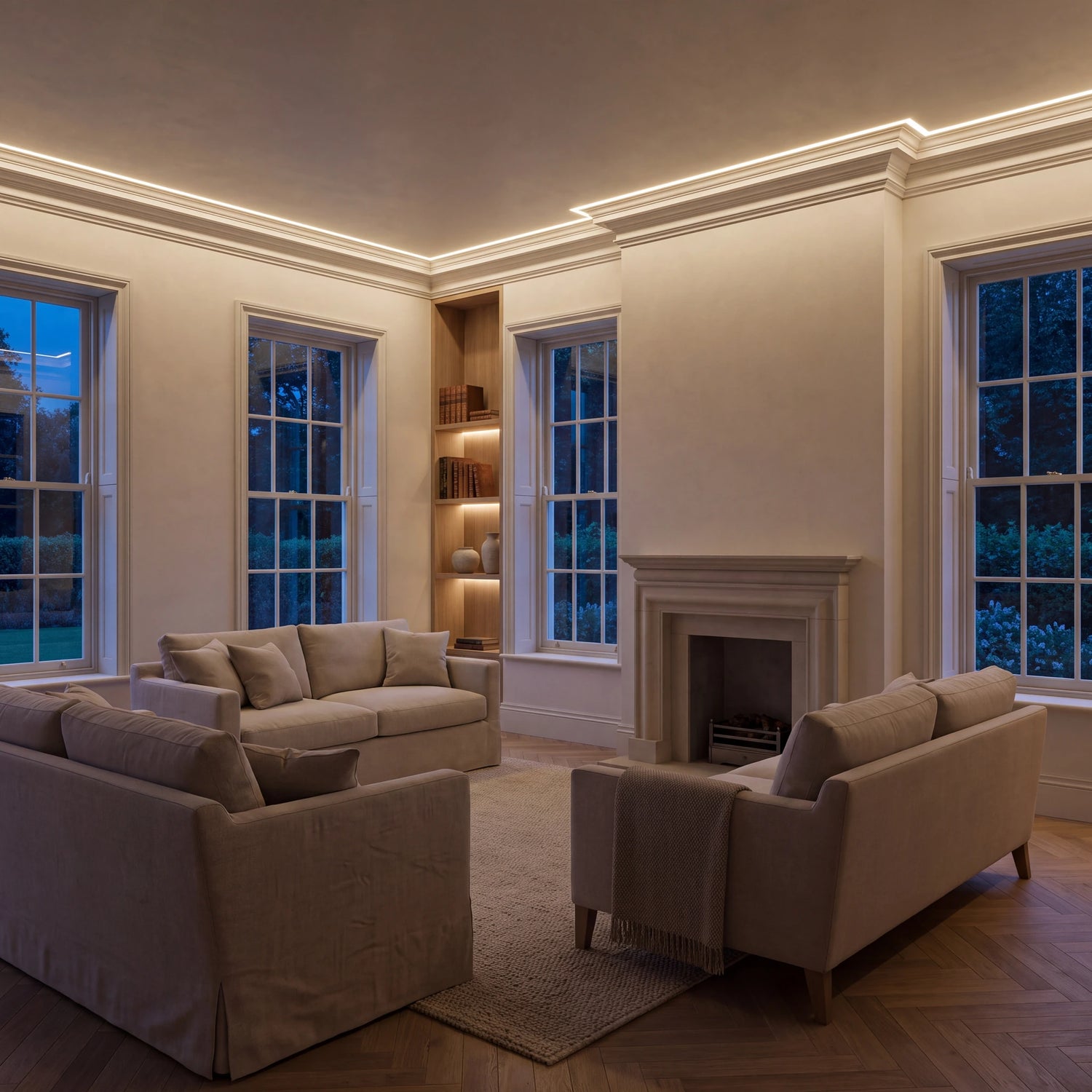

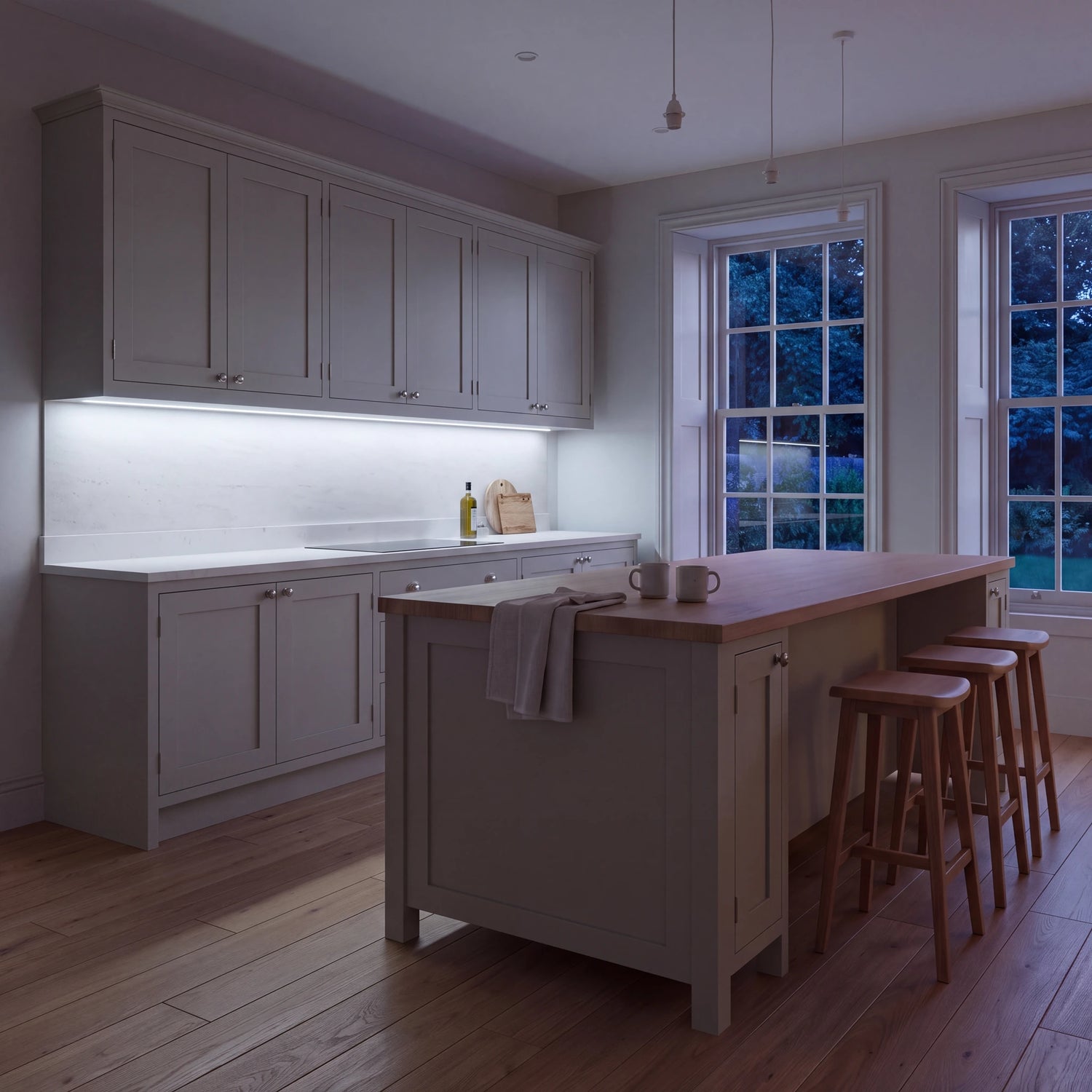

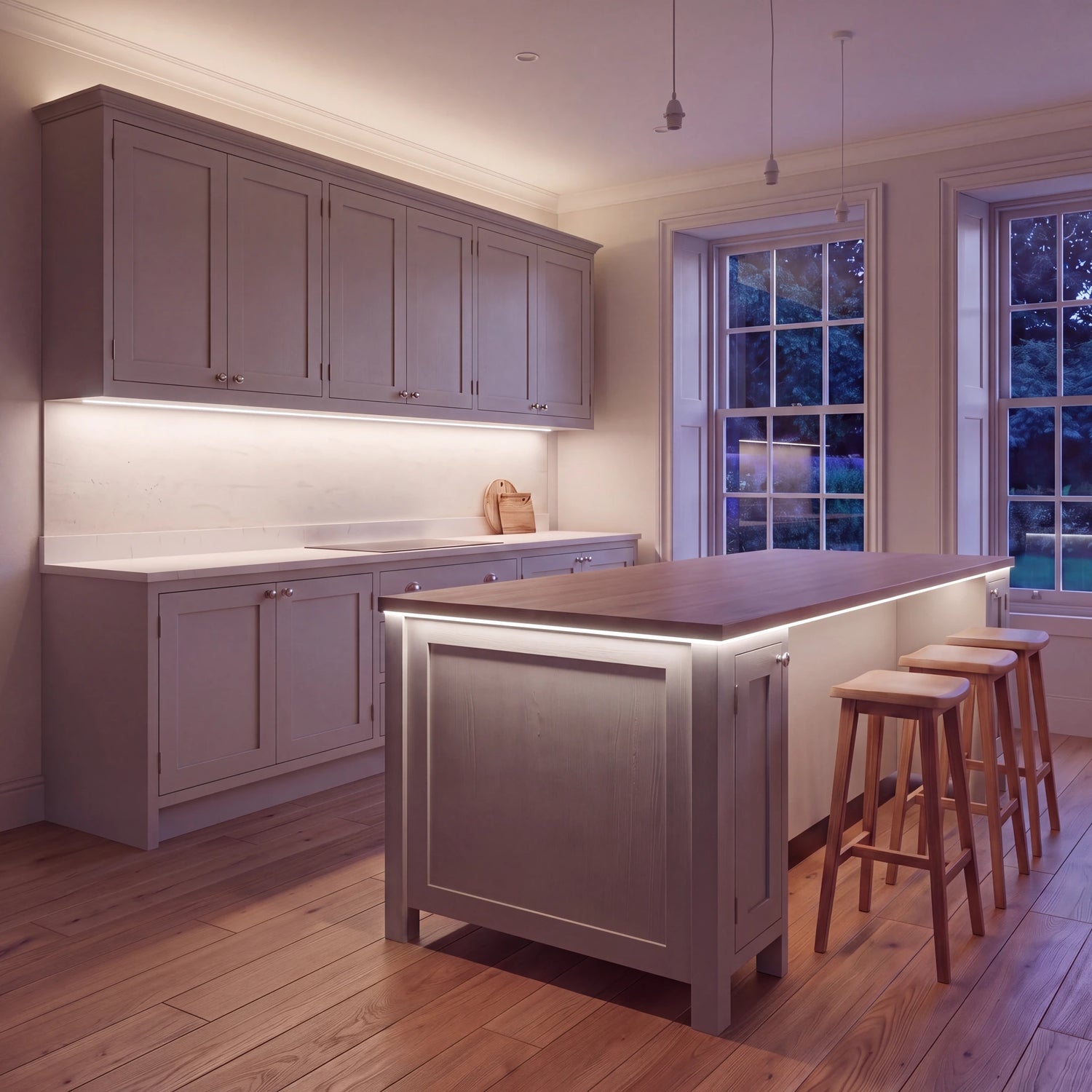

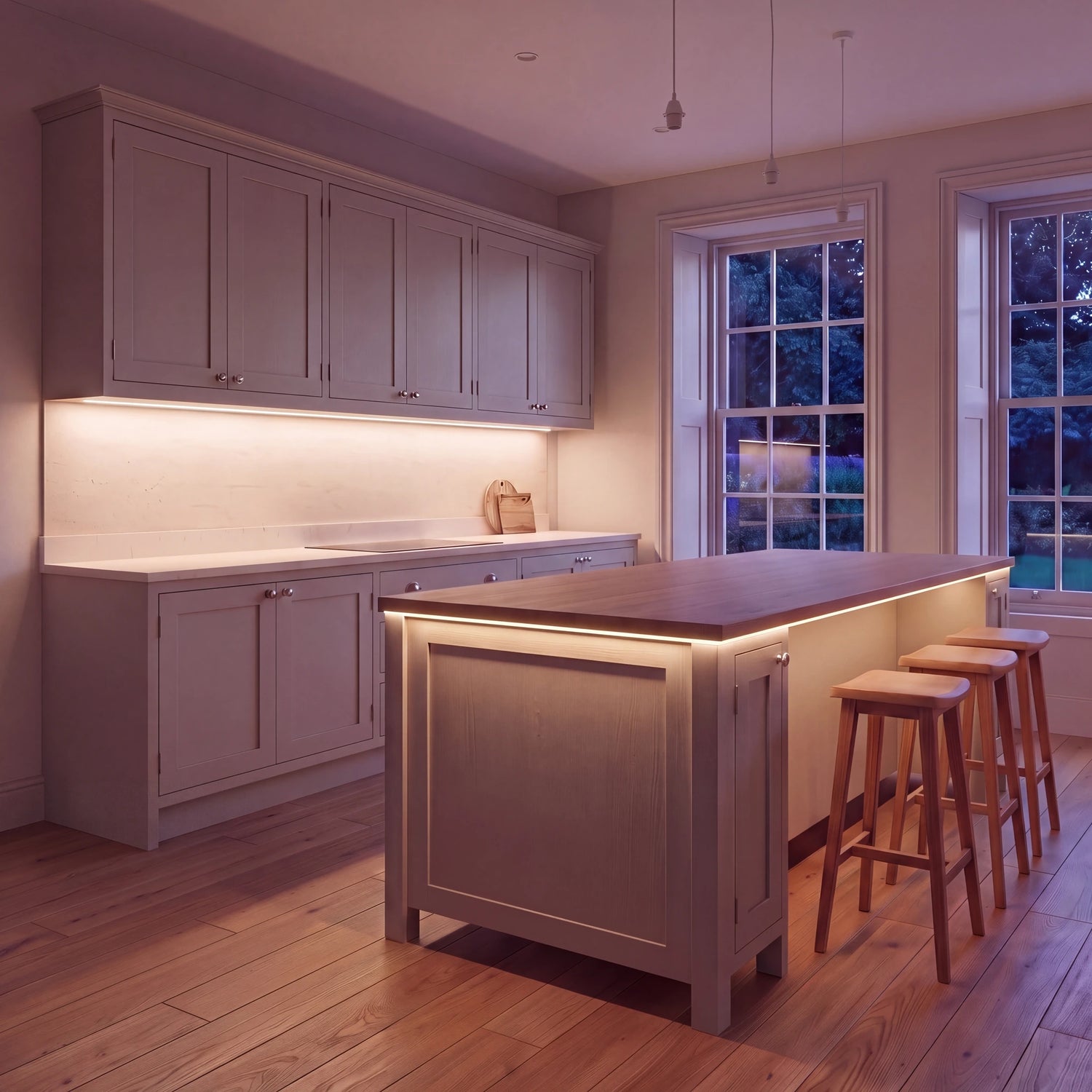

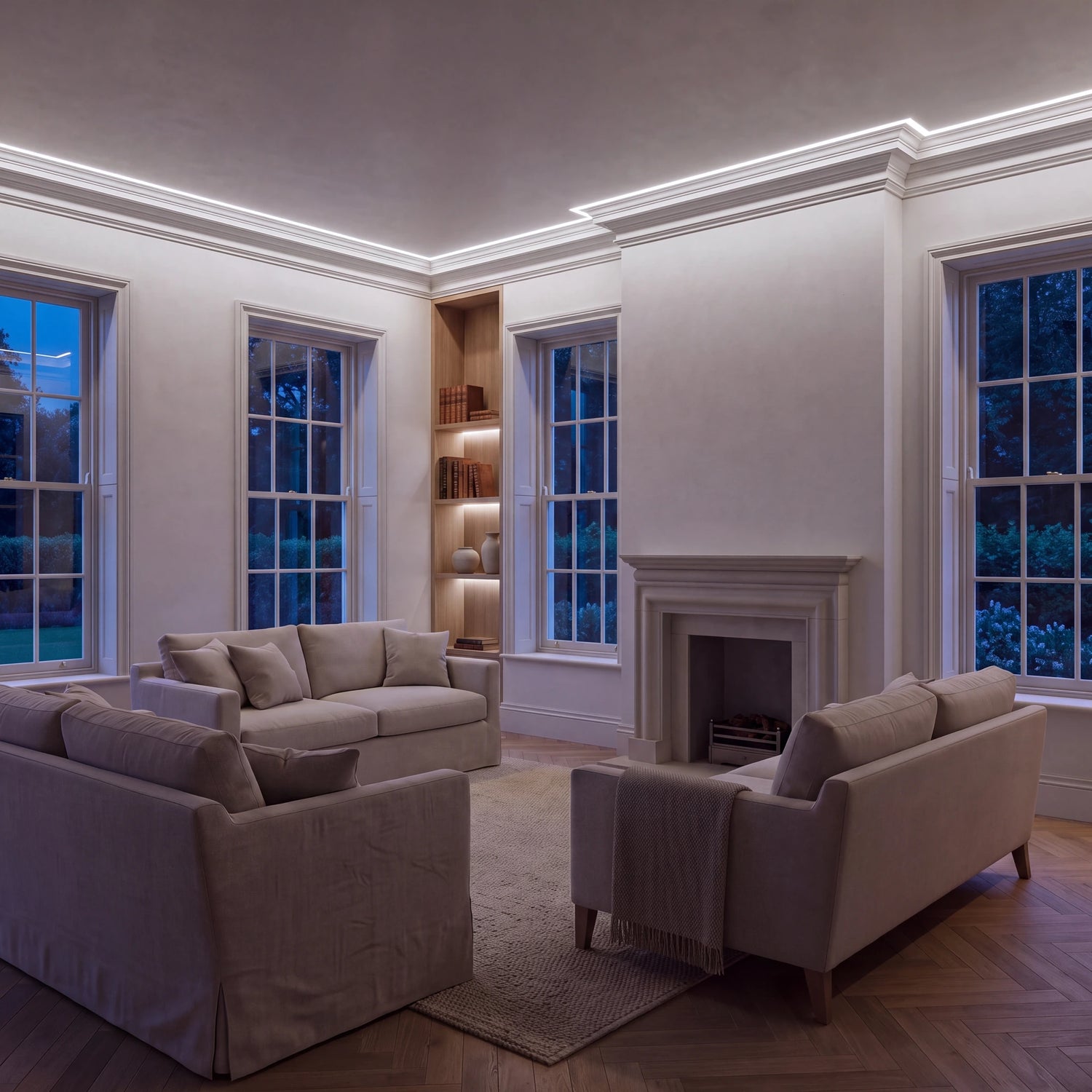

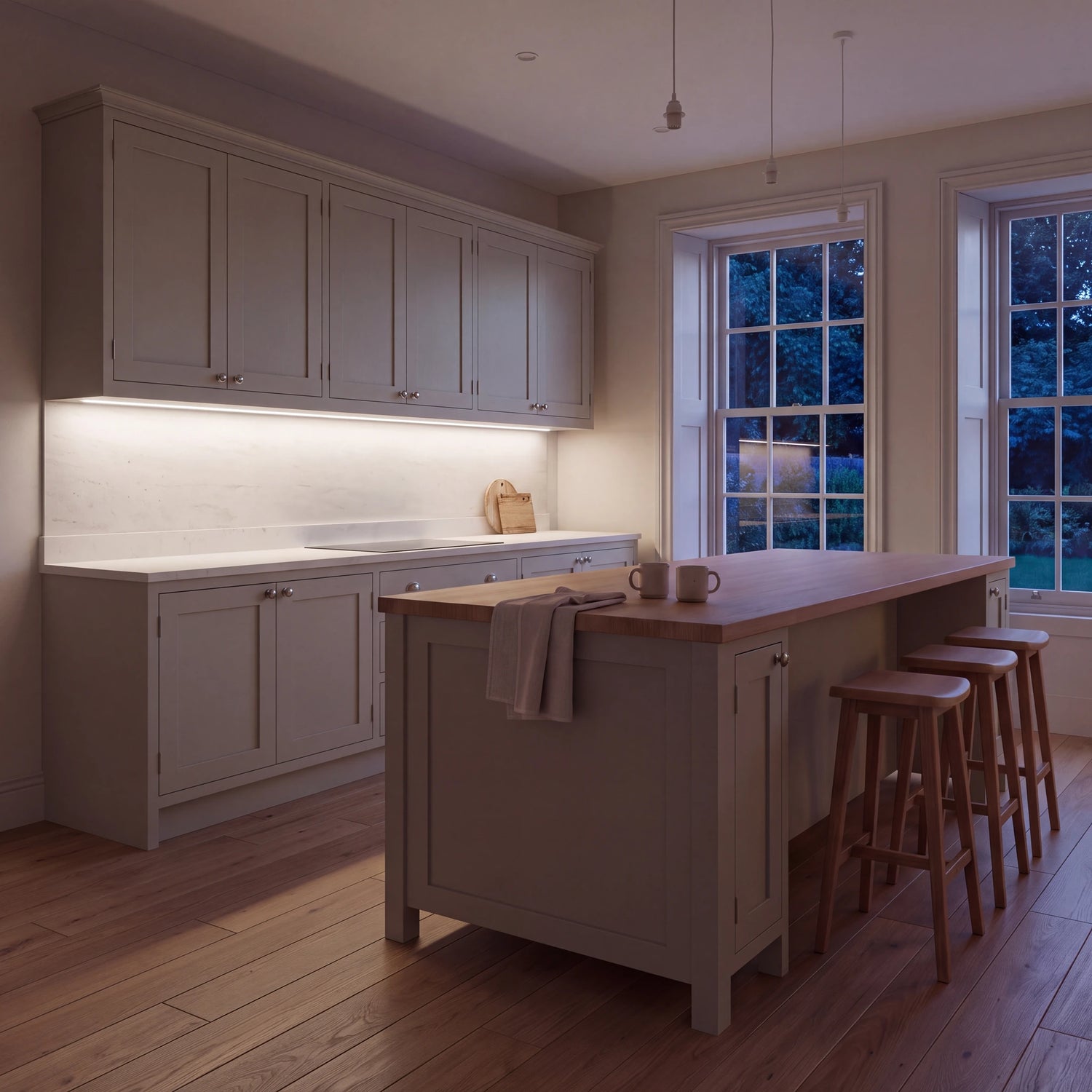

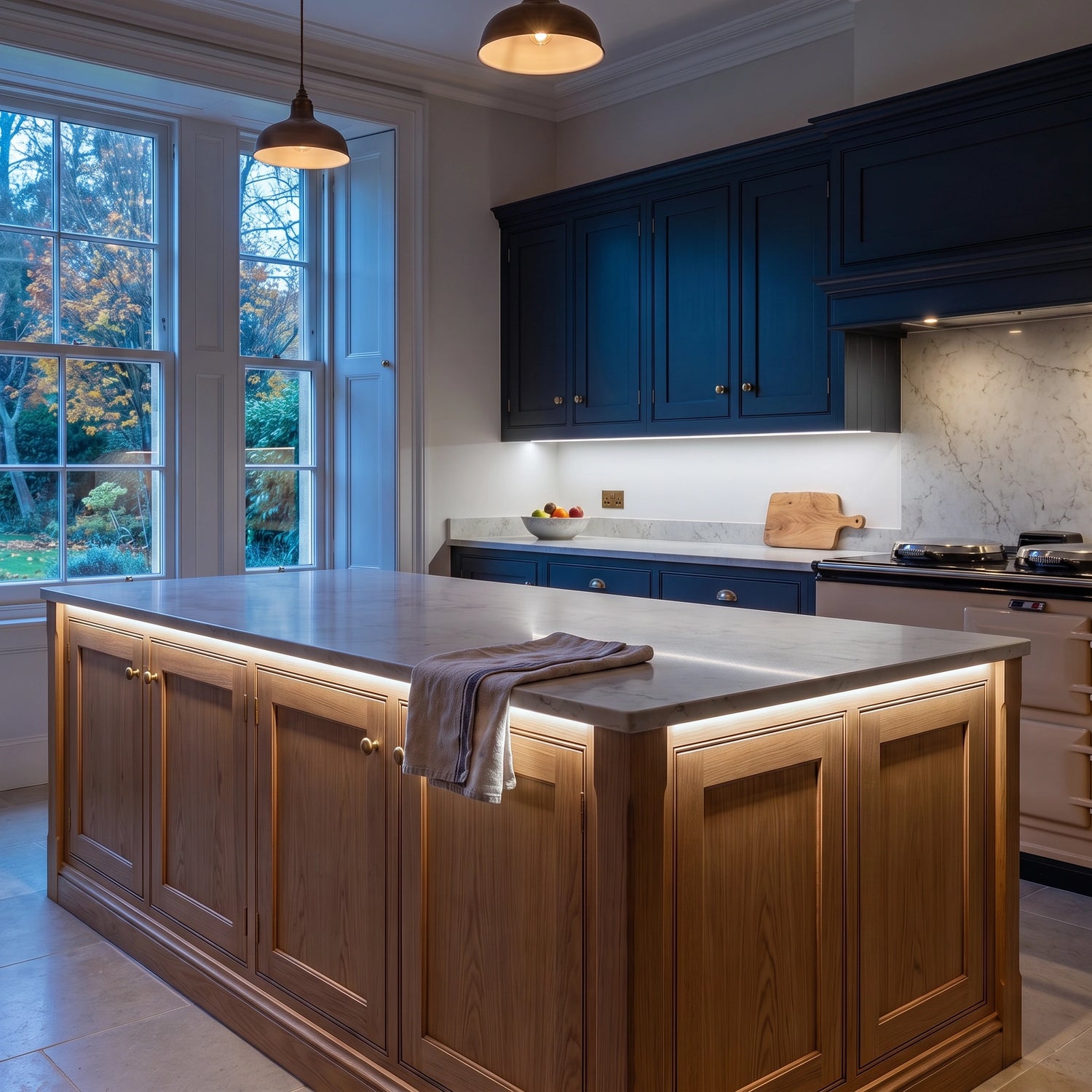

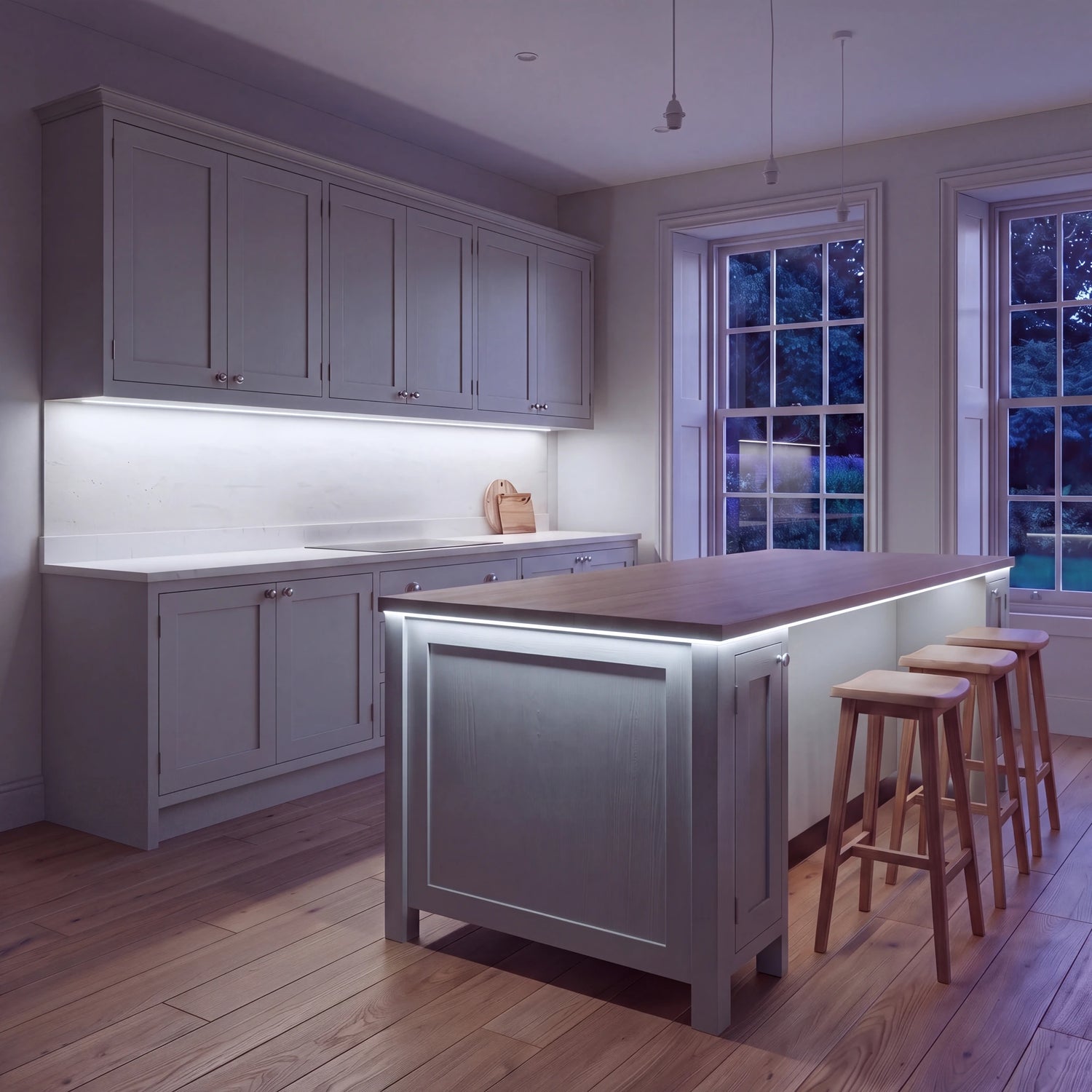

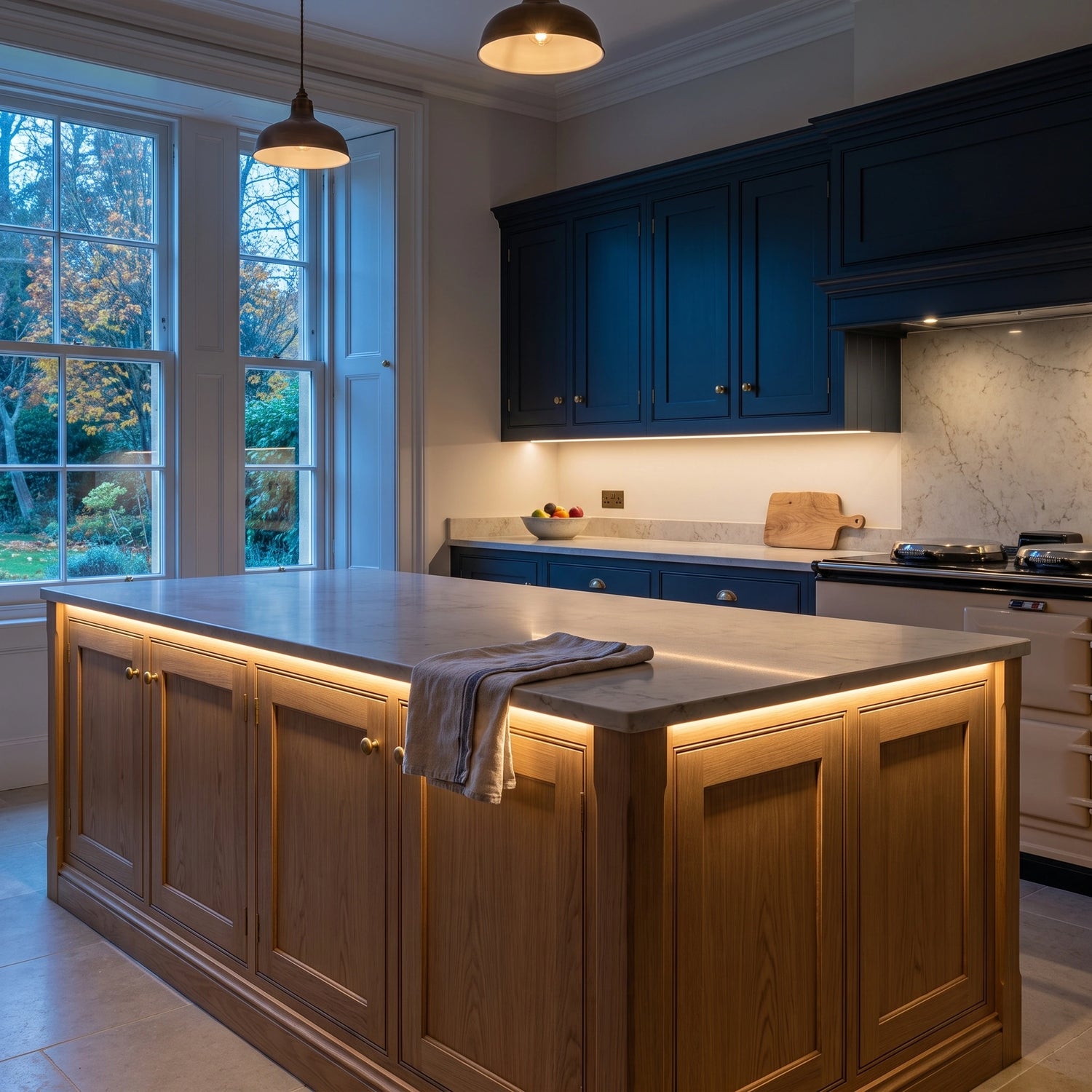

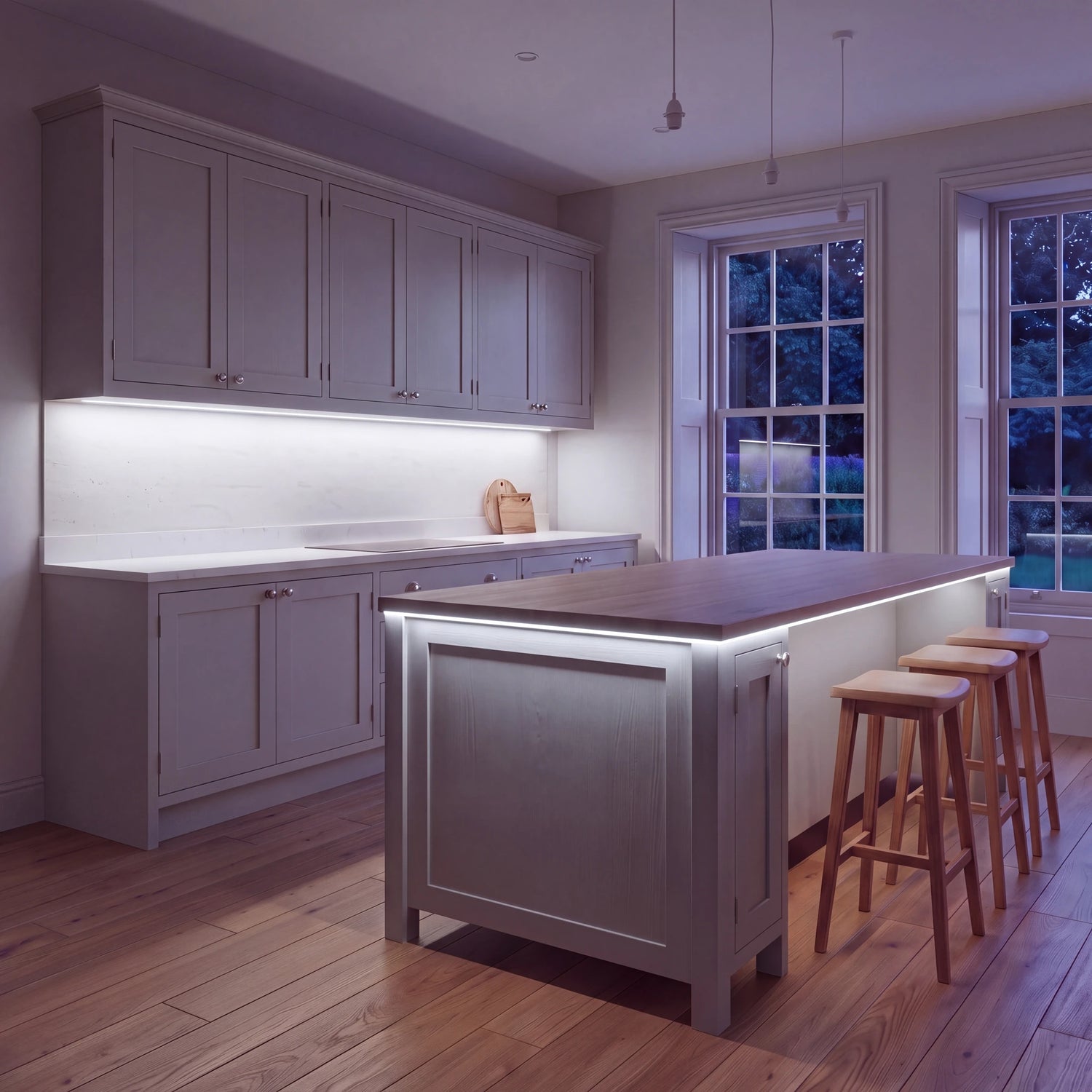

Kitchen scenes are illustrative. Profiles, drivers and dimming controls are supplied separately.
ATOM LED is a UK-based bespoke-lighting provider. Ask about made-to-measure cabinet lighting; finished cuts follow the permitted 50mm marks and 20m limit.
Specifications
- Brand
- ATOM LED
- Product type
- COB LED Strip
- Light colour
- Warm White 2700K, Warm White 3000K, Natural White 4000K, Daylight 5000K, Cool White 6500K
- Voltage
- 24V DC
- Power per metre
- 7.5 W/m
- LEDs per metre
- 480 LEDs/m
- Lumens per metre
- Warm White 2700K: 668 lm/m; Warm White 3000K: 677 lm/m; Natural White 4000K: 714 lm/m; Daylight 5000K: 755 lm/m; Cool White 6500K: 723 lm/m
- CRI
- >90
- IP rating
- IP20 Non-Waterproof
- Dimensions
- 10mm x 2mm
- Width
- 10mm
- Depth
- 2mm
- Bending
- Vertical Bend
- Cut points
- 50mm (5cm)
- Continuous run
- 20m
- LED type
- COB LED Strip
- Beam angle
- 120°
- Material
- COB on FPC
- Certification
- UKCA, CE, RoHS, UL
- Guarantee
- 7 Years
