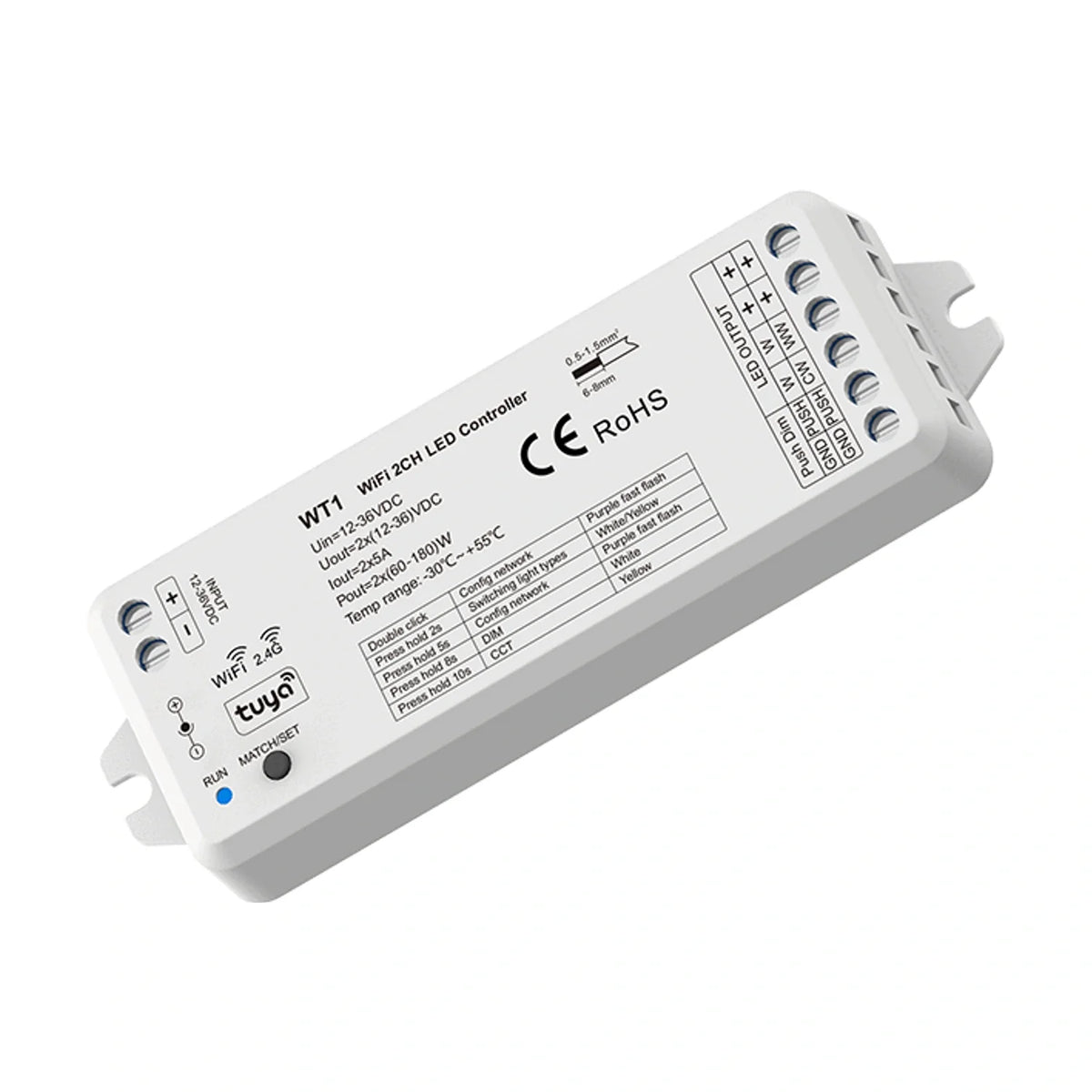

Skydance WT1 Wi-Fi LED Dimmer & CCT Controller, 12–36V

Use one compact controller for either single-colour dimming or tunable-white CCT lighting. The Skydance WT1 supports Tuya Smart app operation, compatible RF handsets and a wired Push-Dim input, giving a choice of everyday control methods for constant-voltage LED tape.

Select DIM or CCT

Configure the operating mode before the LED load is connected. In DIM mode the WT1 controls one-colour brightness; in CCT mode it balances warm and cool channels. App control requires a 2.4GHz Wi-Fi network, while remote control requires a compatible Skydance 2.4GHz RF handset.

Key specifications

• 12–36V DC constant-voltage PWM output
• Single-colour DIM or two-channel CCT mode
• Two 5A channels; 10A maximum total
• Tuya Smart Wi-Fi, Skydance RF and Push-Dim support
• Reverse-polarity, overheat and short-circuit protection
• Dimensions: 114 × 38 × 20mm

What else is required

This listing supplies the WT1 controller. The remote, push switch, LED power supply and lighting are excluded. Match a constant-voltage supply to the LED voltage and load, disconnect power for wiring and confirm polarity and current limits. Do not apply 220–240V AC directly to the controller or LED tape. Follow the correct mode diagram in the supplied guide.

Open the WT1 manufacturer installation guide (PDF).
