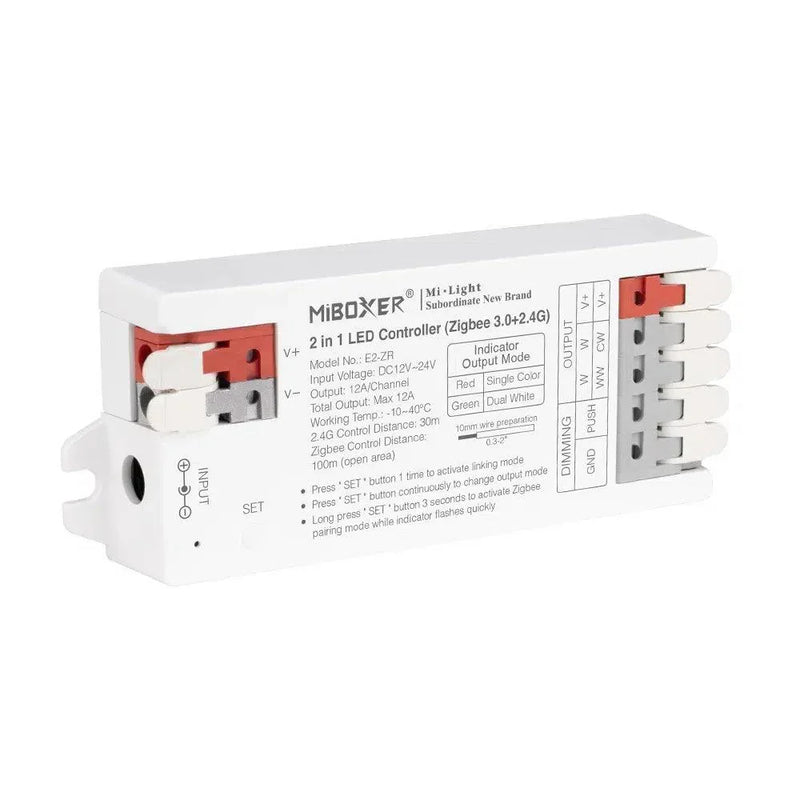

Miboxer Zigbee 3.0 E2-ZR 2 in 1 LED Light Strip Controller 12V-24V

User Manual:

Tool-free instant wiring
• Tool-free instant wiring
• Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Switching 2 output mode via one button (Single color / Dual white)

Crafted with advanced Zigbee 3.0 wireless tech, this LED Light Strip Controller embraces low power, auto-networking, and anti-interference qualities. It seamlessly pairs with the MiBoxer Zigbee gateway to enable wireless dimming color, remote control, timing, group coordination, music rhythm functions, and 2.4G RF remote control support. Perfect for enhancing lighting experiences.

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.

Specification:
Product - 2 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model - E2-ZR
Colour - Single Colour / Dual White CCT
Input Voltage - DC 12V - 24V
Output - 12A/Channel
Total Output - 12A Max
Communication Protocol - Zigbee 3.0 + 2.4GHz
Control Distance - Zigbee: 100m (open area) 2.4G RF: 30m
IP Rating - IP20
Working Temperature - -10~40°C
Wireless Technology - Zigbee 802.15.4
Wireless Frequency - 2.400-2.480GHz
Size - 100.6mm x 40mm x 17.6mm
