MiBoxer SM2 Matter Wi-Fi 2-in-1 LED Controller 12V-24V

The MiBoxer SM2 adds Matter smart-home control and compatible 2.4GHz RF remote control to your 12V or 24V constant-voltage LED lighting. Its two selectable output modes support single-colour dimming and CCT tunable white, making it suitable for compatible LED strips in shelving, dry kitchen areas, bedrooms and media walls.

Choose the control mode for your lights

Use single-colour mode to adjust brightness, or CCT mode to control a compatible warm/cool-white strip. A compatible momentary push switch can also provide on/off and brightness control.

What do I need for smart-home control?

Connect to a 2.4GHz Wi-Fi network for supported app control. MiBoxer provides Tuya Smart setup instructions; Matter control requires a compatible Matter platform. A 5GHz-only Wi-Fi network is not supported. Compatible RF remotes are available separately; check the manufacturer instructions for supported models.

Power supply and installation

Use a suitable constant-voltage DC power supply matching the LED strip voltage. Maximum output is 12A total across all channels, with a 12A limit per channel. The controller does not convert voltage and must not be connected directly to 230V mains. Disconnect power before wiring, select the correct output mode and follow the polarity markings. IP20 protection is for dry indoor locations.

Dimensions

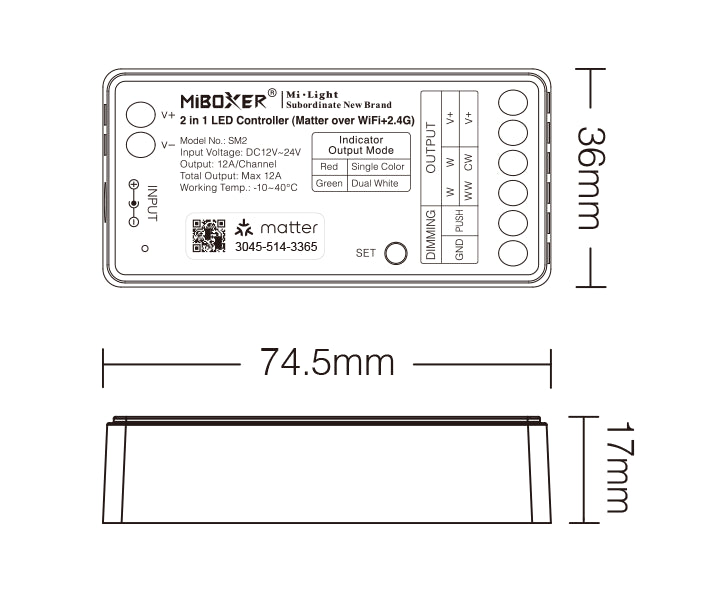

74.5 x 36 x 17mm (L x W x H).

Delivery
Available services, costs and delivery estimates are shown at checkout for your address. Made-to-measure products may require additional preparation time.

Returns
Eligible unused standard products can be returned in line with our published policy. Products cut or prepared to your measurements cannot be cancelled or returned once preparation has started unless they are faulty.

Read our shipping policy and returns policy before ordering a custom-cut item.
