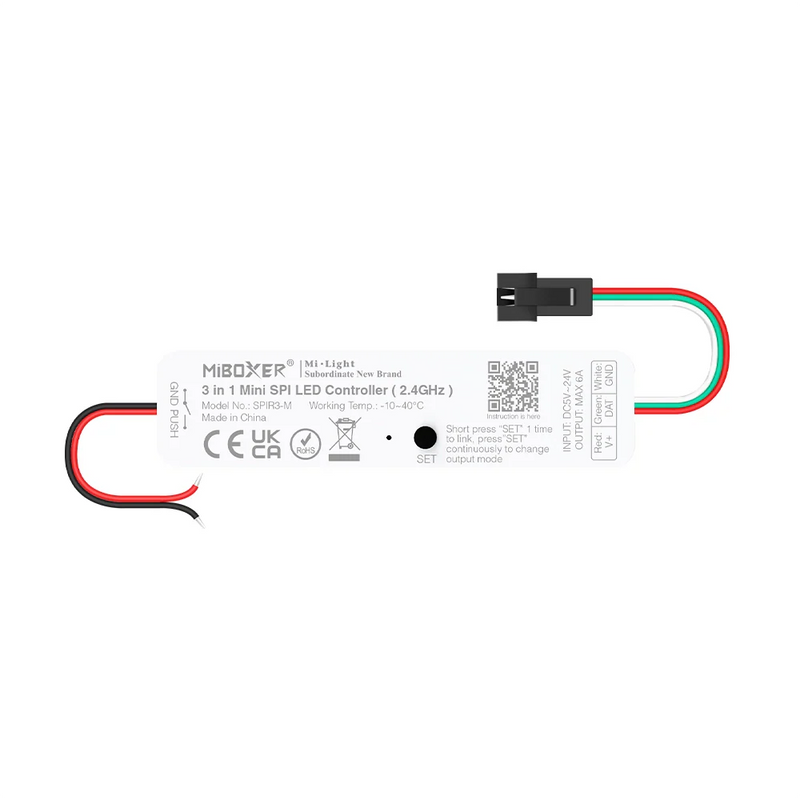

MiBoxer Mini 3 in 1 SPI LED controller (2.4GHz) SPIR3-M
In stock
Description
SPIR3-M controller is designed for Pixel led strip with 2.4GHz wireless transmission technology, have high speed transmitting and strong ability for anti-interference, stable signal Working with C6 or B6 remote, adjust mode, color, brightness, ON/OFF time and editing dynamic lighting feature
- 3 in 1= Single color + RGB + RGBW SPI controller
- Pixel Dots: Single color (2048), RGB (1536), RGBW (1024)
- Output Signal: SPI (TTL) 800Kbps
- Setting color and length
- Setting ON/OFF time and color
- Selecting single color, RGB or RGBW output mode via “SET” button
- Push ON/OFF and changing dynamic mode
- Total 20 dynamic modes and support editing color of them
- Support PUSH switching dynamic mode
- Have DND function, usually used for power failure area to save power.
Compatible chips( controller don't need to set chip types)
TM1809, TM1804, TM1812, SK6813, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815，SK6812(RGBW), WS2813(RGBW), WS2814(RGBW)
Specification:
Product - 3 in 1 Mini SPI LED Controller (2.4GHz)
Model - SPIR3-M
Input Voltage - DC5V~24V
Output Current - Max 6A
Output Power - 30-144W
Output Type - Constant Voltage
Output Signal - SPI(TTL) 800Kbs
Pixel Dots - Single colour (2048), RGB (1536), RGBW (1024)
Control Signal - 2.4GHz RF
Control Distance - 30m
Warranty - CE, EMC, LVD, RED
Certification - CE, EMC, LVD, RED
Dimming Range - 0.1%-100%
IP Rating - IP20
Working Temperature - -10~40°C
Size - 76mm x 19mm x 9.5mm
Specifications
- Brand
- Miboxer
- Product type
- SPI Controller
- Light colour
- White
- Voltage
- 5V - 24V
- IP rating
- IP20 Non-Waterproof
- Dimensions
- 76mm x 19mm x 9.5mm
- Operating temperature
- '-10~40°C
- LED type
- SPI
- Certification
- CE, EMC, LVD, RED
- Warranty
- 5 years
