Miboxer 5 in 1 LED Controller (Zigbee 3.0 + 2.4G) Output Max 20A PZ5

Made by new Zigbee 3.0 wireless transmitting technology with low power consumption, strong ability to build network automatically and anti-interference. with MiBoxer Zigbee gateway to get wireless dimming color, remote control, timing control, group control, music rhythm function. Support 2.4G RF remote control.

Tool-free instant wiring

•  Product follow zigbee 3.0 standard protocol
• Zigbee Contrl distance: 100m (open area)
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Millions of colors to choose, color temperature adjustable, brightness and saturation controllable
• Support PUSH dimming

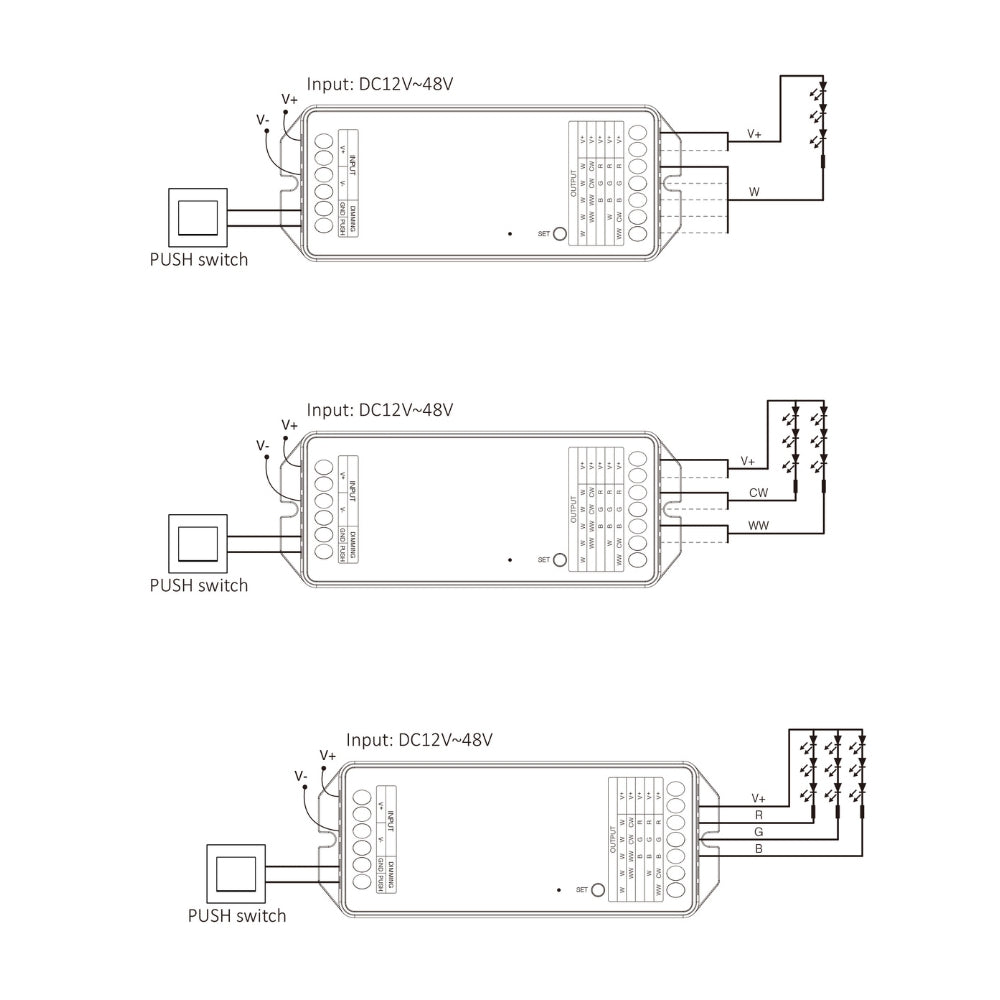

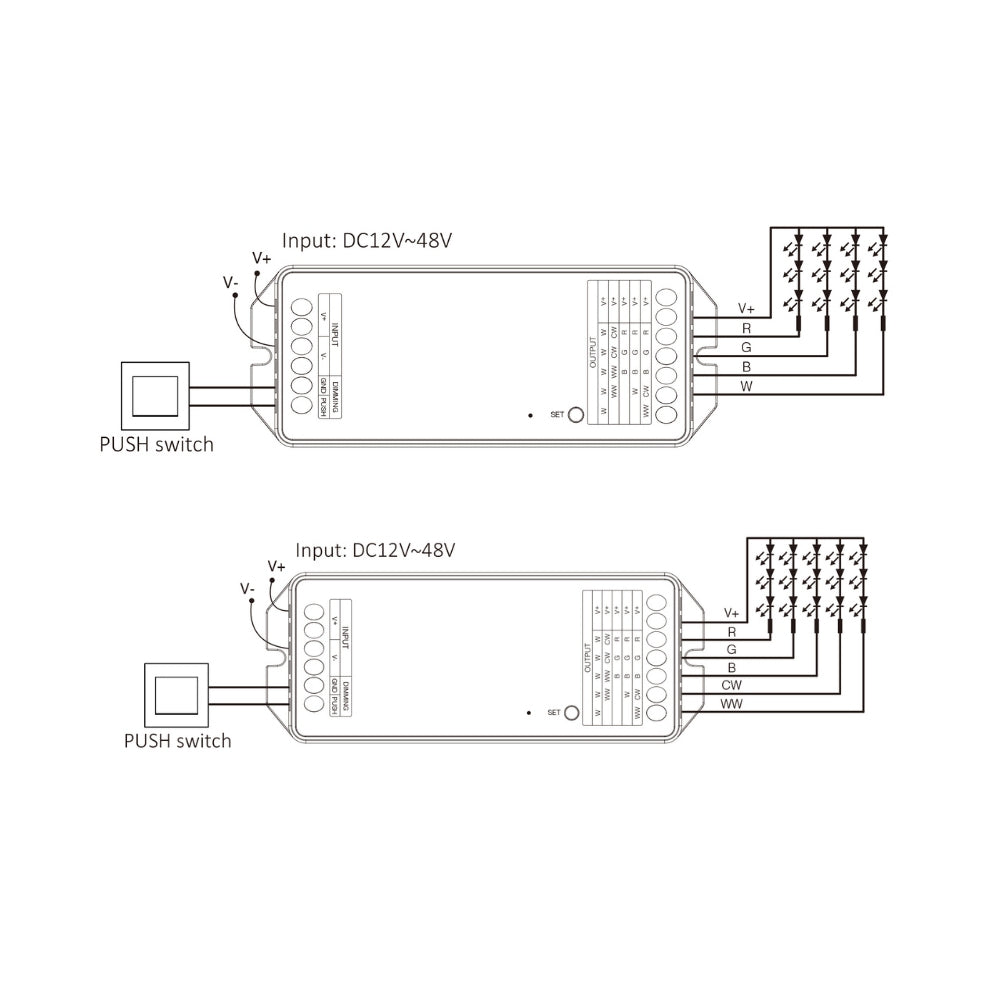

• Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)

Crafted with advanced Zigbee 3.0 wireless tech, this LED Light Strip Controller embraces low power, auto-networking, and anti-interference qualities. It seamlessly pairs with the MiBoxer Zigbee gateway to enable wireless dimming color, remote control, timing, group coordination, music rhythm functions, and 2.4G RF remote control support. Perfect for enhancing lighting experiences.

Specification:

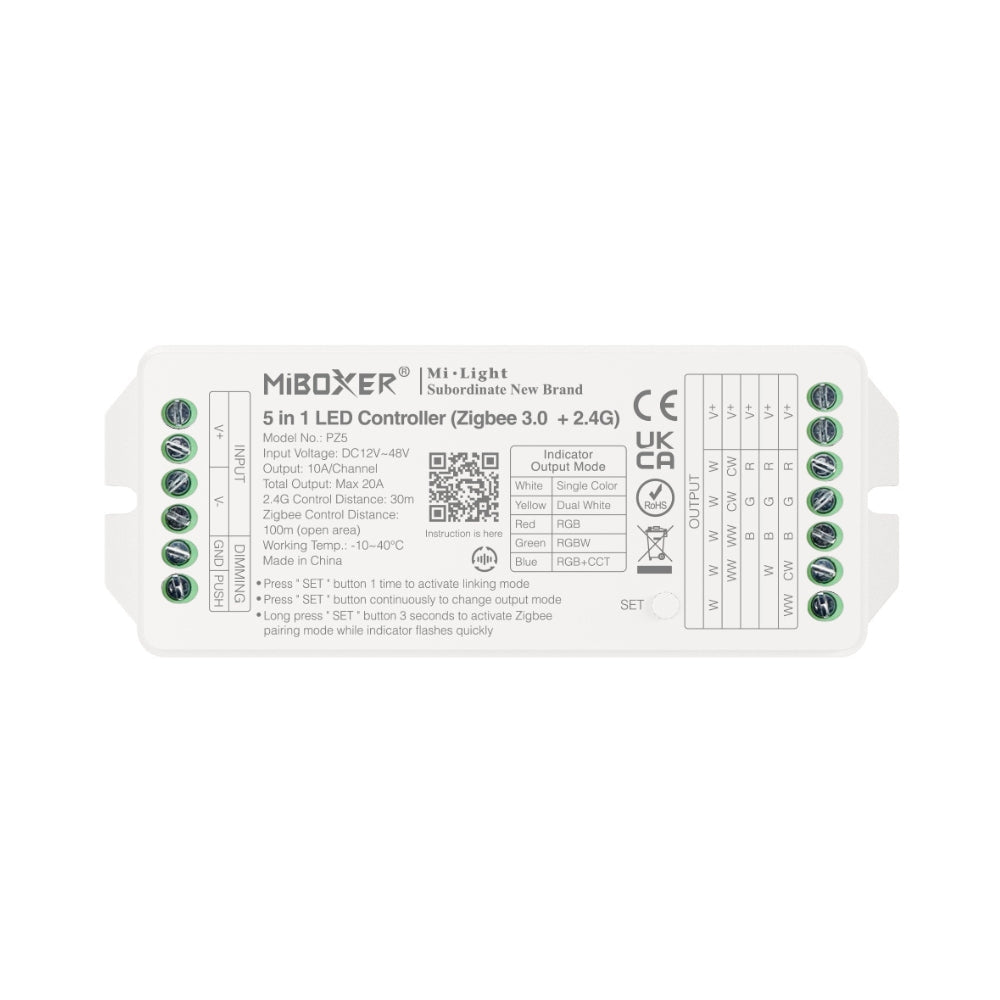

Product - 5 in 1 LED Controller (Zigbee 3.0 +2.4G)
Model - PZ5
Colour - Mono, CCT, RGB, RGBW, RGB+CCT
Input Voltage - DC12~48V
Output - 10A/Channel
Total Output - 20A Max
Communication Protocol - Zigbee 3.0 + 2.4GHz
Control Distance - Zigbee: 100m (open area) 2.4G RF: 30m
IP Rating - IP20
Working Temperature - -10~40°C
Wireless Technology - Zigbee 802.15.4
Wireless Frequency - 2.400-2.480GHz

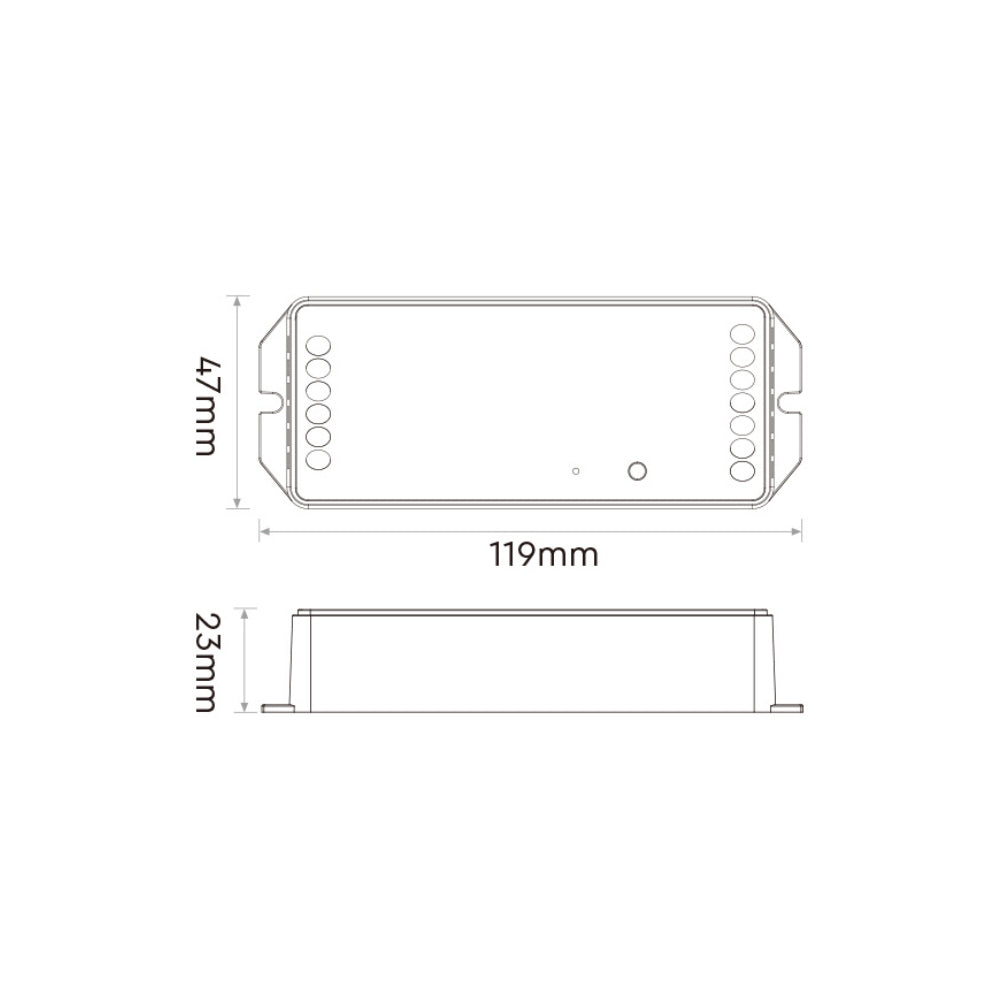

Size - 119mm x 47mm x 23mm

User Manual:
