Green LED Neon Flex 15x15mm Top Bend 48V – 10cm Cut, 40m Max Run
In stock
Green LED Neon Flex 15x15mm Top Bend 48V – 10cm Cut, 40m Max Run - 1 Metre is backordered and will ship as soon as it is back in stock.
Description

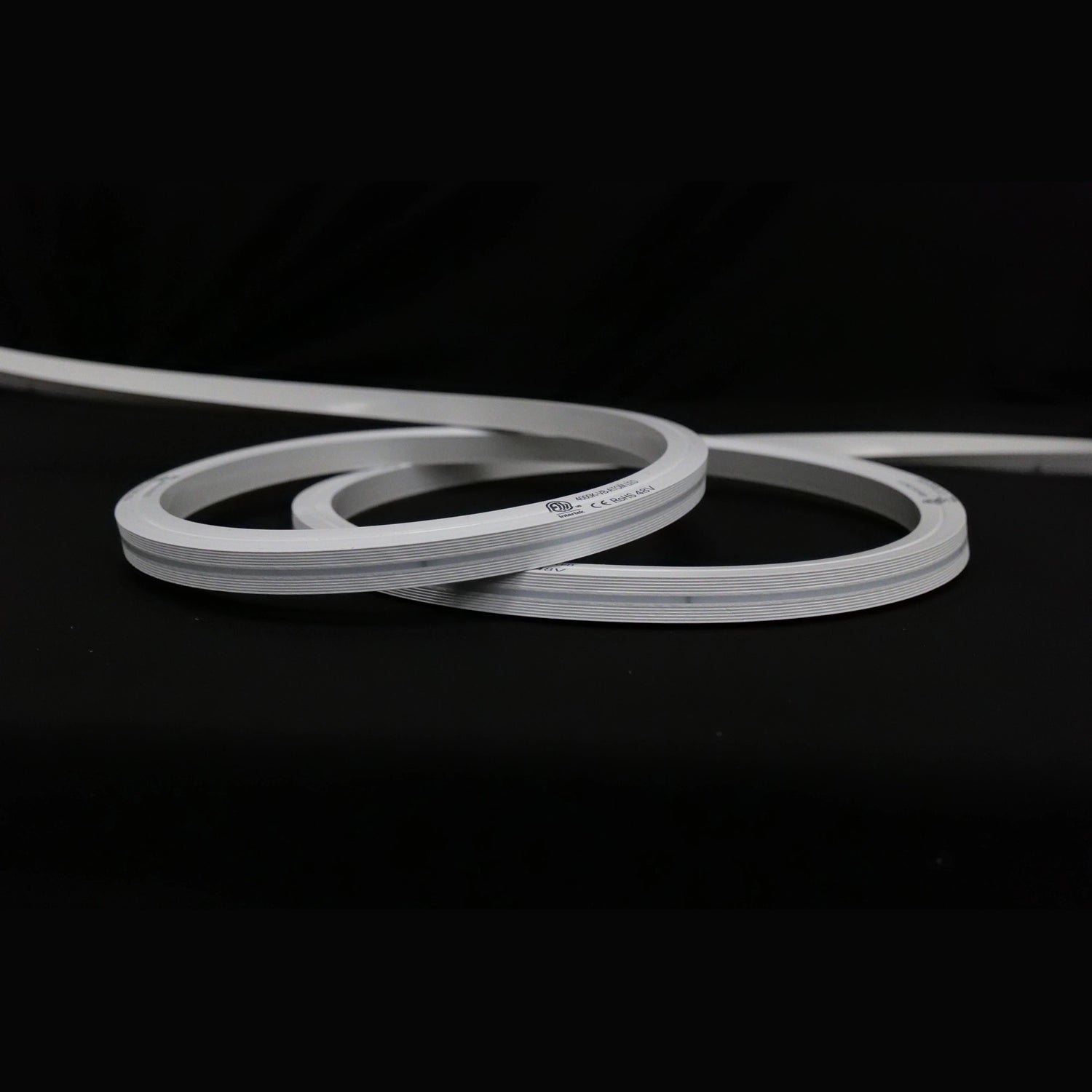

Green LED Neon Flex brings green light to interior and sheltered outdoor features. Its 15x15mm profile is designed for vertical bend / Top Bend, allowing you to plan raised curves and arches within the permitted bending direction. The LED neon flex is fully silicone injected inside.
This 48V version has 100mm (10cm) cutting intervals. The 48V lights support a continuous run of up to 40 metres with power supplied from one end. Choose an order length from 1m to 40m in 1m increments. Plan the route, required lengths and power arrangement before installation.
Features
- 15x15mm profile for vertical bend / Top Bend
- Fully silicone injected with IP67 protection
- 120 LEDs per metre at 9W/m
- Custom-cut lengths with a 4-year warranty
Where to use it
- Branded retail displays and themed interiors
- Decorative arches and exhibition features
- Garden deck edges and sheltered outdoor seating areas
For outdoor installations, use suitable sealed connections and follow the Installation Guidelines.
Can it be cut to my required length?
Cut only at the permitted cutting marks, spaced 100mm (10cm) apart. Choose a length that follows these intervals and remains within the 40m maximum run.
Which way does it bend?
The profile bends vertically. Use the bending-direction diagram to plan rises, falls and arches. Avoid twisting the strip or forcing a sideways curve.
These lights are custom cut and made to order to your specific requirements. Order ATOM LED neon flex from UK LED Lights. For made-to-measure or custom-cut requirements, cuts must follow this product’s permitted cut marks and run limits. Discuss your custom lighting project.
Specifications
- Brand
- ATOM LED
- Product type
- LED Neon Flex
- Light colour
- Green
- Voltage
- 48V DC
- Power per metre
- 9W/m
- LEDs per metre
- 120
- Lumens per metre
- 448 lm/m
- IP rating
- IP67
- Dimensions
- 15x15mm
- Width
- 15mm
- Depth
- 15mm
- Bending
- Vertical Bend
- Cut points
- 100mm (10cm)
- Continuous run
- 40 Metre
- Operating temperature
- -30°C to 50°C
- LED type
- SMD2835
- Rated life
- 50,000 hours
- Beam angle
- 120° nominal light-surface angle
- Material
- Fully silicone injected
- Certification
- ETL, RoHS, CE, FCC, UKCA
- Warranty
- 4 Years
