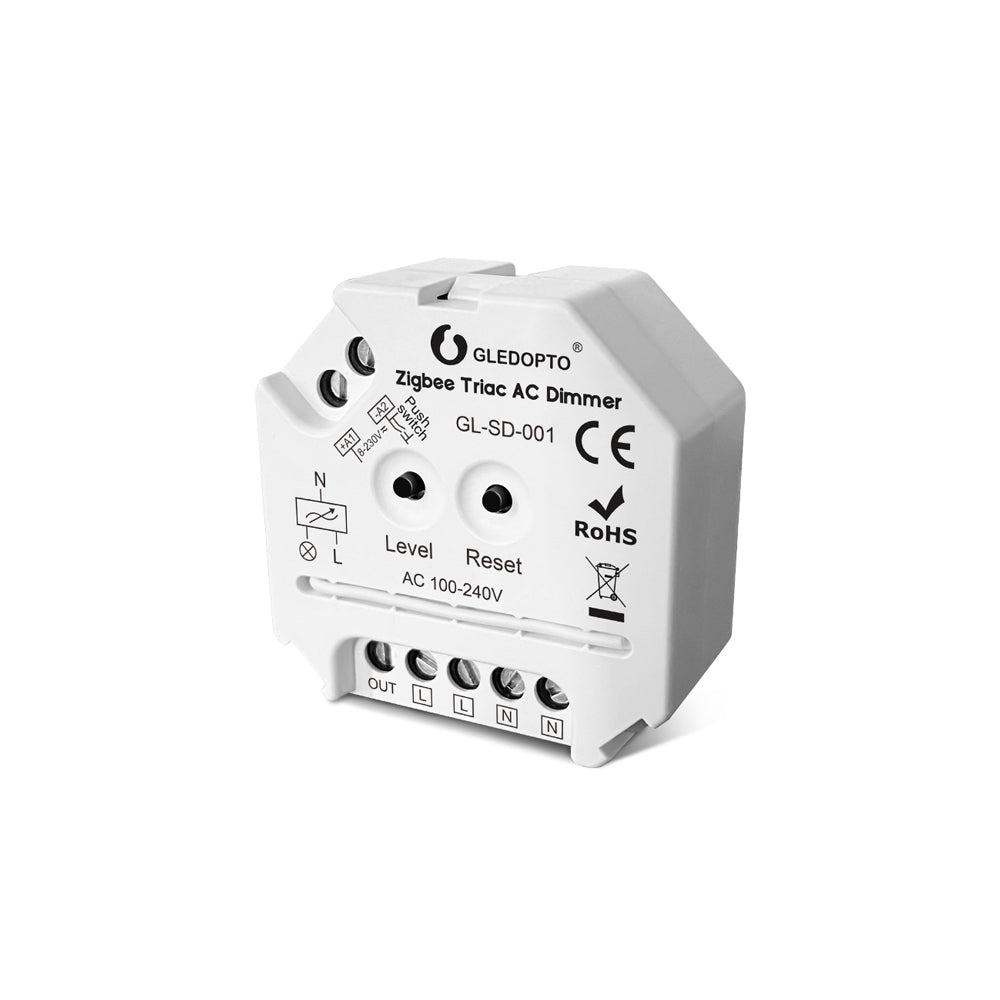

The GLEDOPTO ZigBee 3.0 Triac Dimmer Controller is designed for controlling 220 240V dimmable LED lamps and light sources through a ZigBee-enabled smart lighting system. It supports a wide input voltage range of 100–240 VAC and allows smooth on/off switching and brightness control for products such as LED GU10 lamps and panels with dimmable drivers.
This Triac dimmer operates on the ZigBee 3.0 standard, making it compatible with many popular ZigBee hubs and gateways. It has been tested with systems such as Philips Hue®, Osram Lightify®, IKEA Tradfri®, and Amazon Echo Plus, and works with most ZigBee ZLL and ZigBee 3.0 platforms.

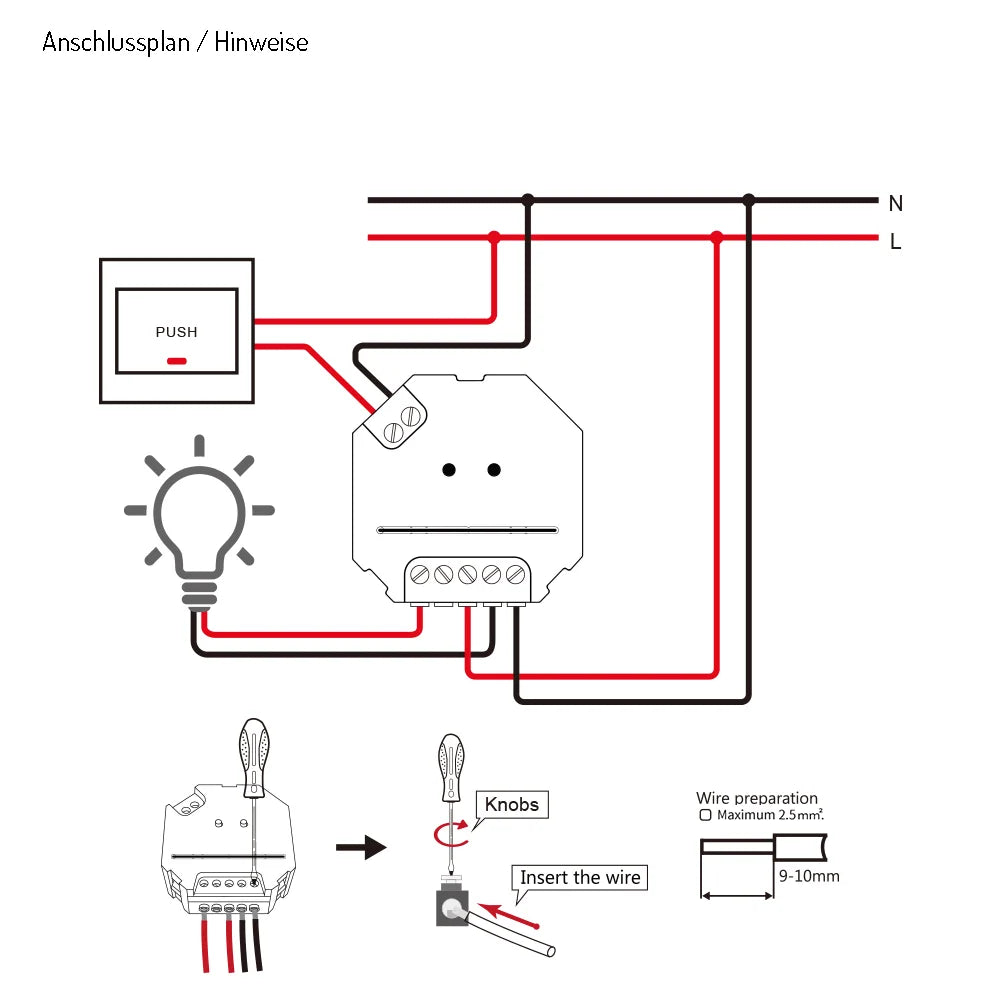

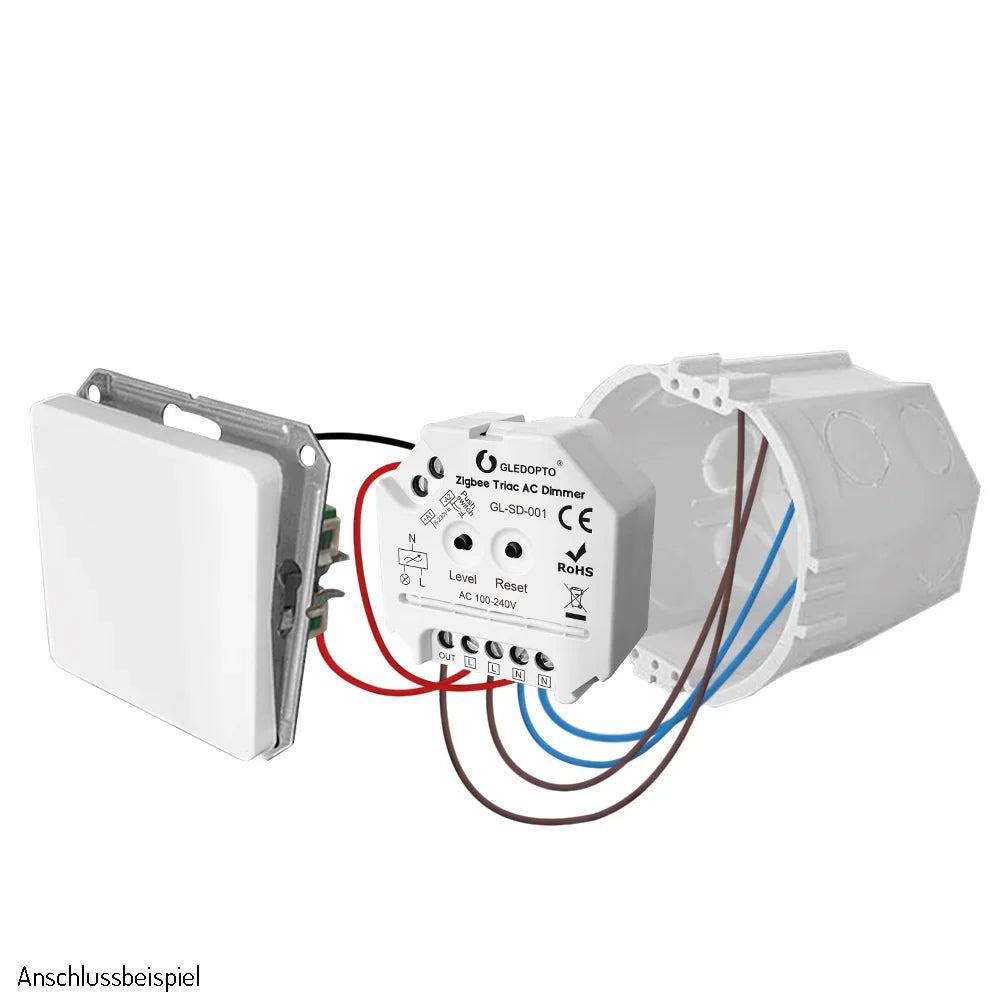

Thanks to its compact design, the controller can be installed discreetly behind a wall switch in a flush-mounted back box (adequate depth recommended). Control is possible via your ZigBee system, a compatible remote control, a wall switch (RGBCCT variant), or directly using the existing physical switch.

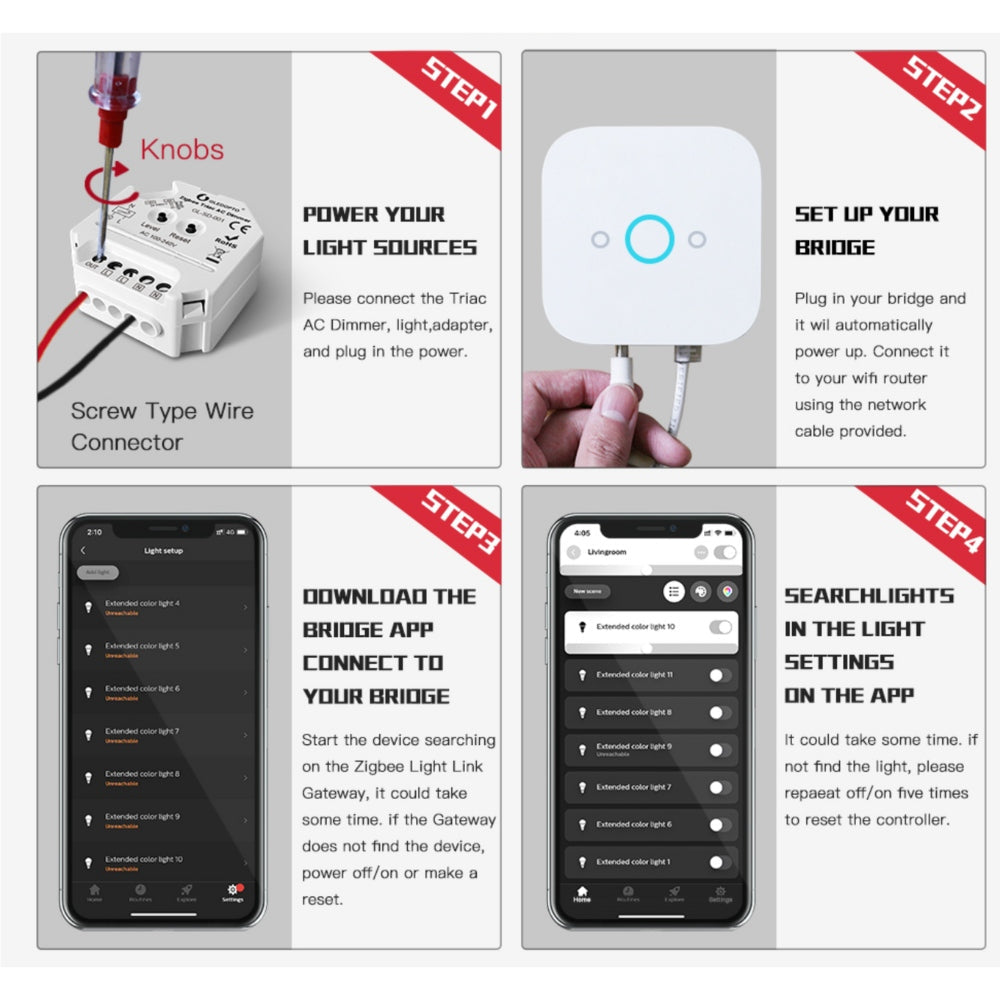

A ZigBee gateway is not required when using remote control or local button switching, making installation simple and flexible for both new and existing lighting setups.
Specification:
