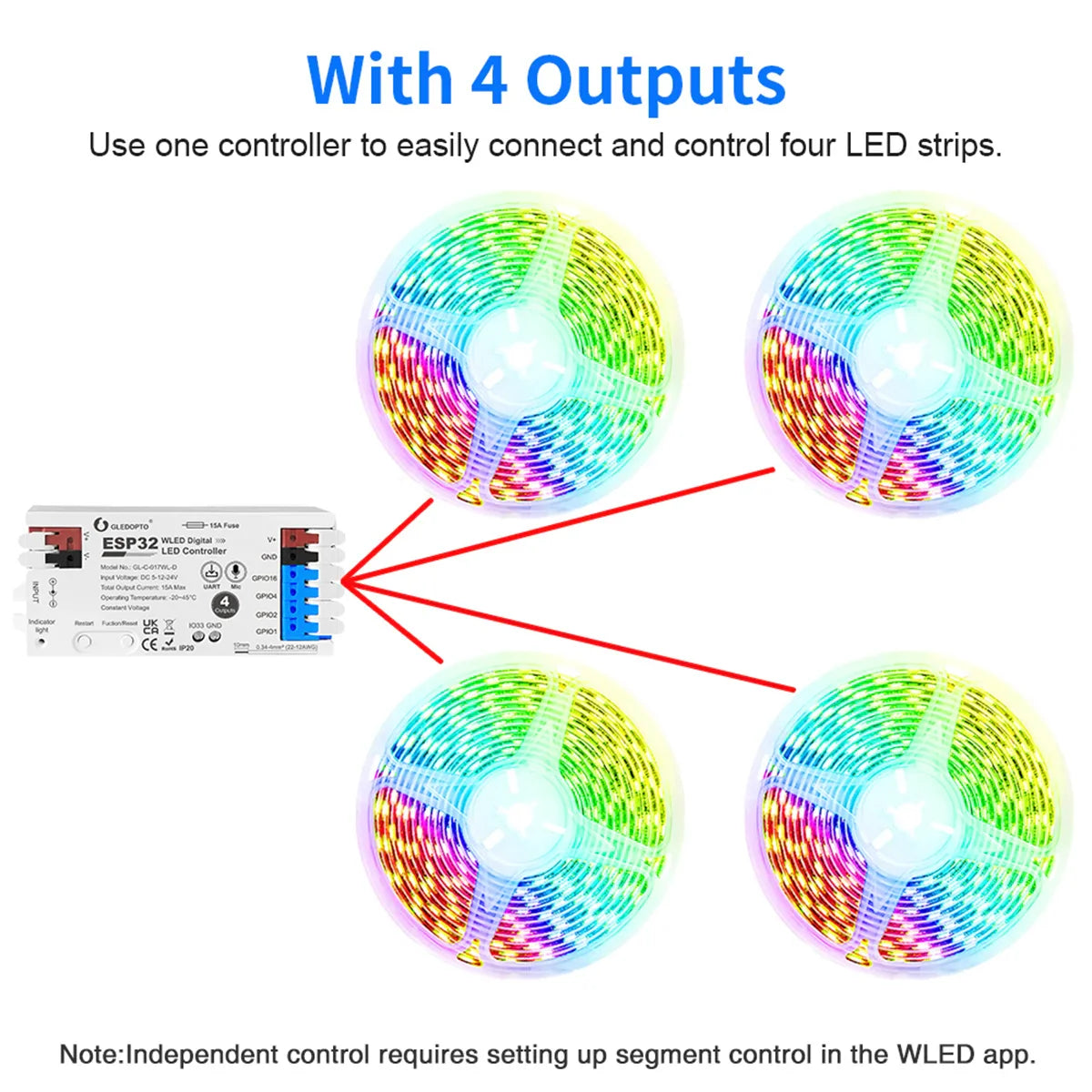

This controller offers four-channel independent control, allowing you to drive and individually manage up to four digital LED strips such as WS2811, WS2812, SK6812, and WS2815 for multi-zone lighting effects. Segmented control can be configured directly within the WLED app.
A built-in microphone enables music-synchronised lighting, combined with over 100 dynamic effects including rainbow, fire, and meteor patterns, all accessible through the WLED app.
Safety and efficiency are built in, with a 15 A fuse for overcurrent protection, an automatic power-off relay, and a level shifter IC to ensure stable signal transmission.
Firmware updates can be completed wirelessly via the WLED app or through a wired UART connection, with wide compatibility across popular addressable LED protocols.

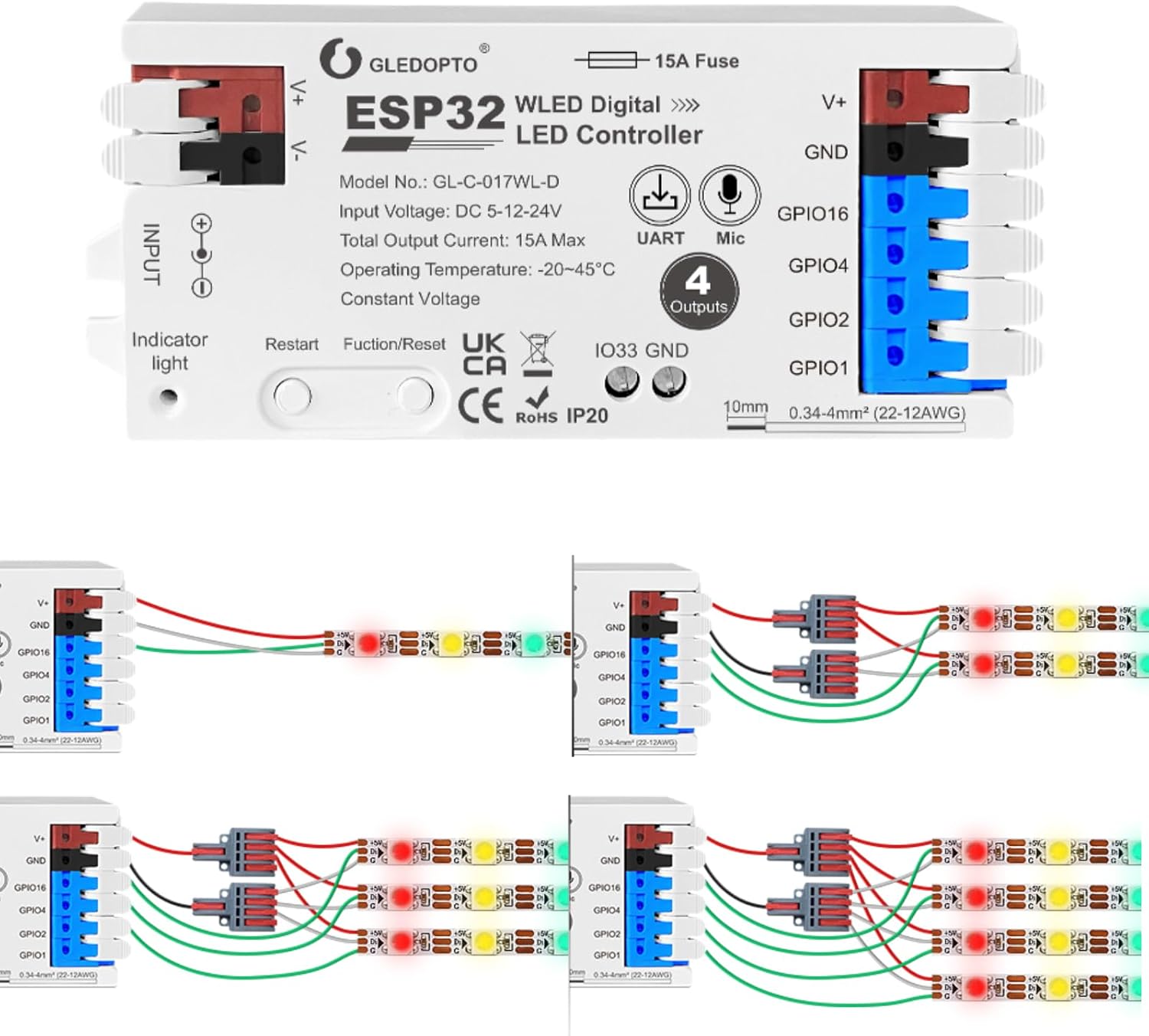

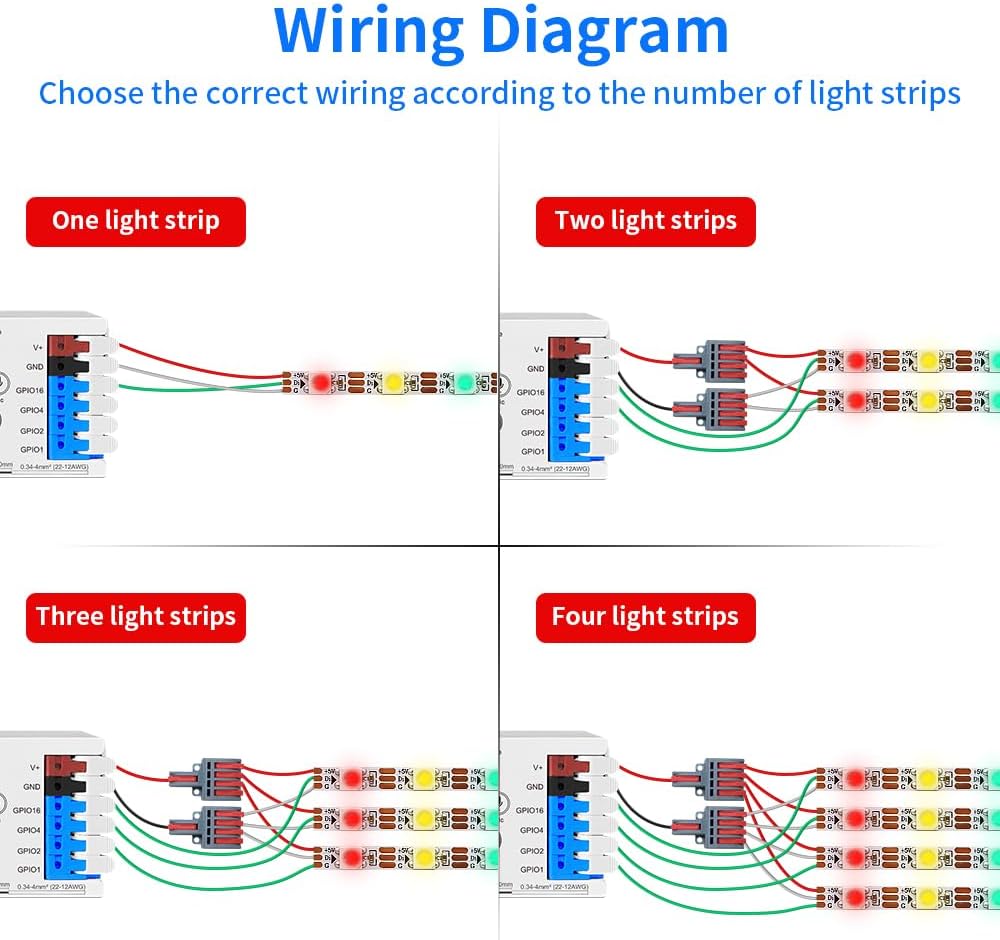

The compact, user-friendly design features clear wiring terminals and ESP32-powered performance, making it suitable for home, commercial, and professional lighting projects.
Specification:

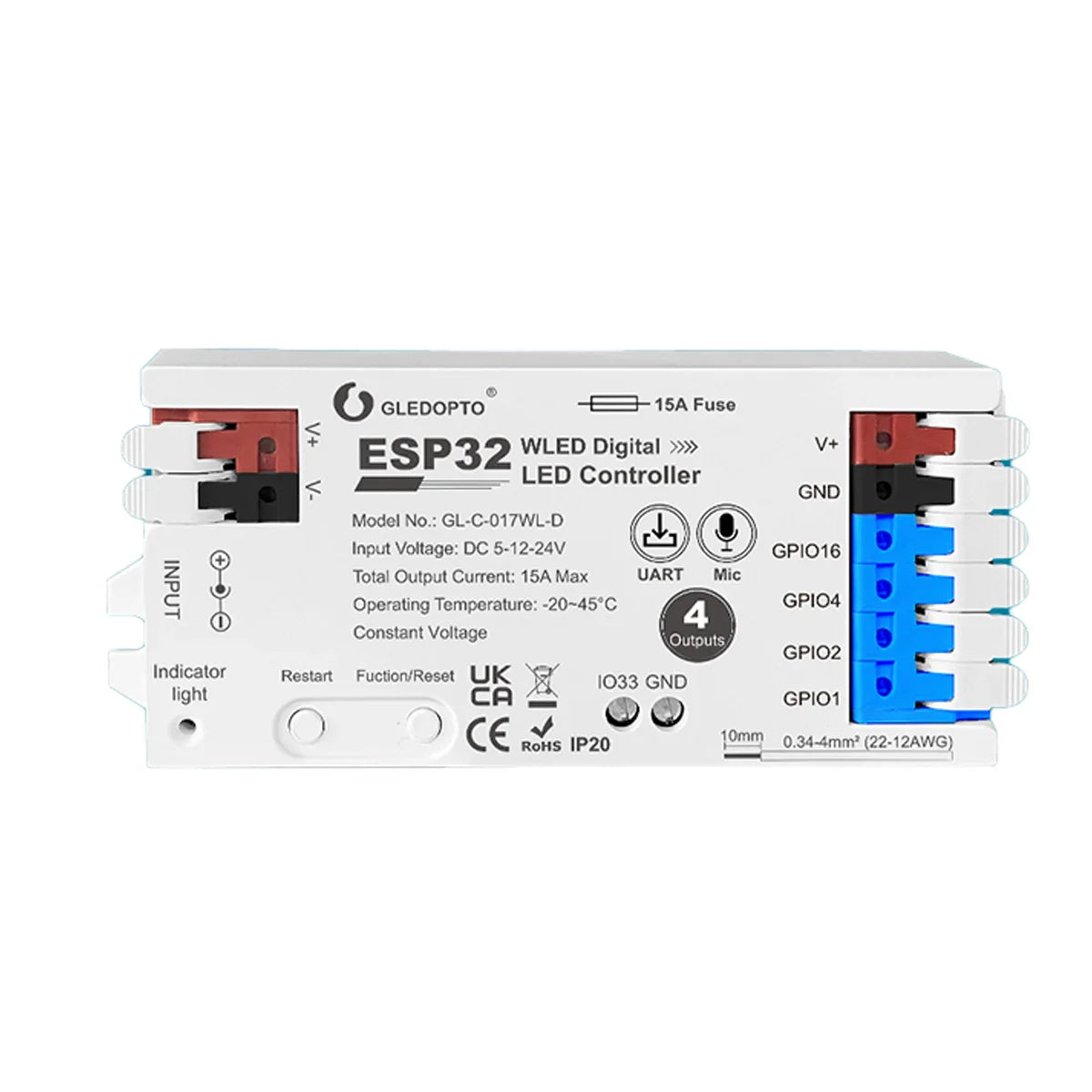

Controller type: ESP32-based WLED controller
Channels: 4 independent output channels
Supported LED types: WS2811, WS2812 / WS2812B, SK6812, WS2815
Input voltage: DC 5–12–24 V
Maximum output current: 15 A total
Control method: WiFi via WLED app and wired UART
Music sync: Built-in microphone for audio-reactive effects
Lighting effects: 100+ dynamic effects via WLED
Firmware updates: OTA (wireless) and UART

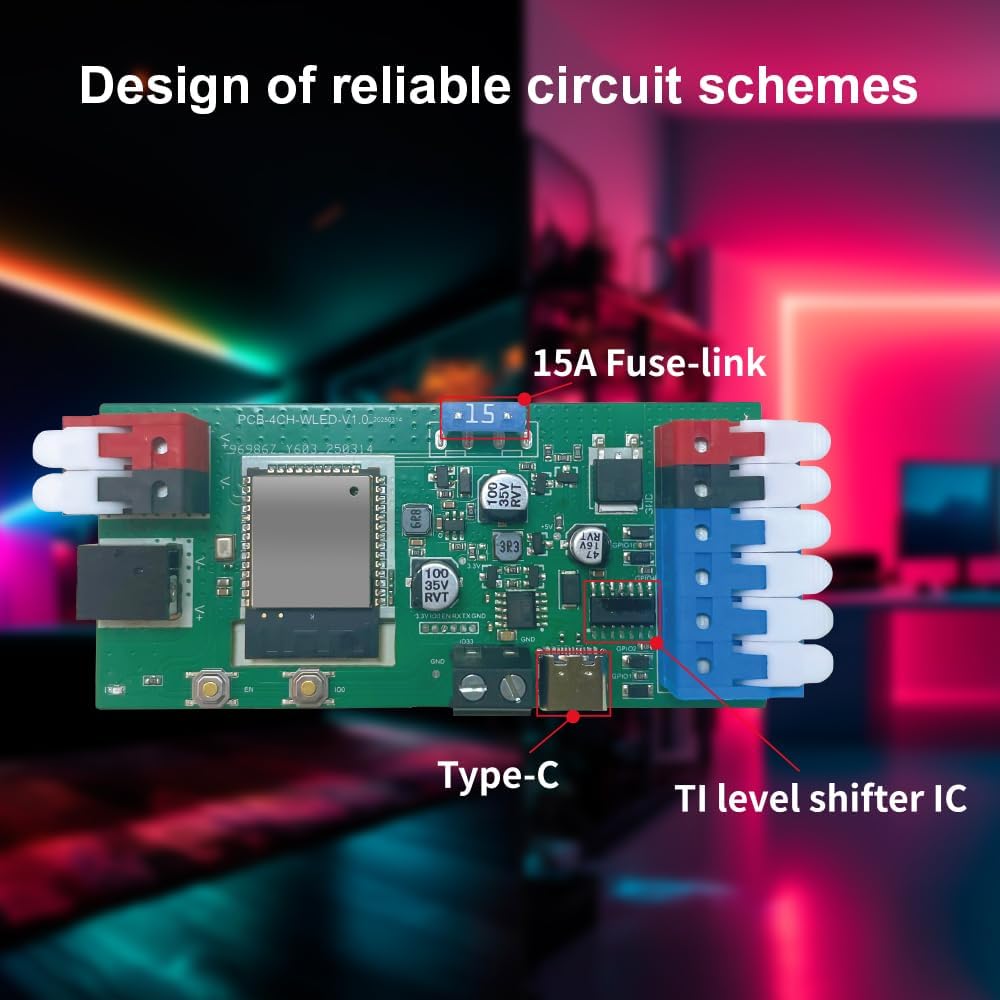

Signal stability: Integrated level shifter IC
Protection: Built-in 15 A fuse and automatic power-off relay
Application: Multi-zone home, commercial, and professional lighting installations
