Free Cut COB LED Strip 24V 10mm IP20 | 2700K–6500K
In stock
-
IP20 indoor
-
24V DC
-
10m run
-
7 years
Description

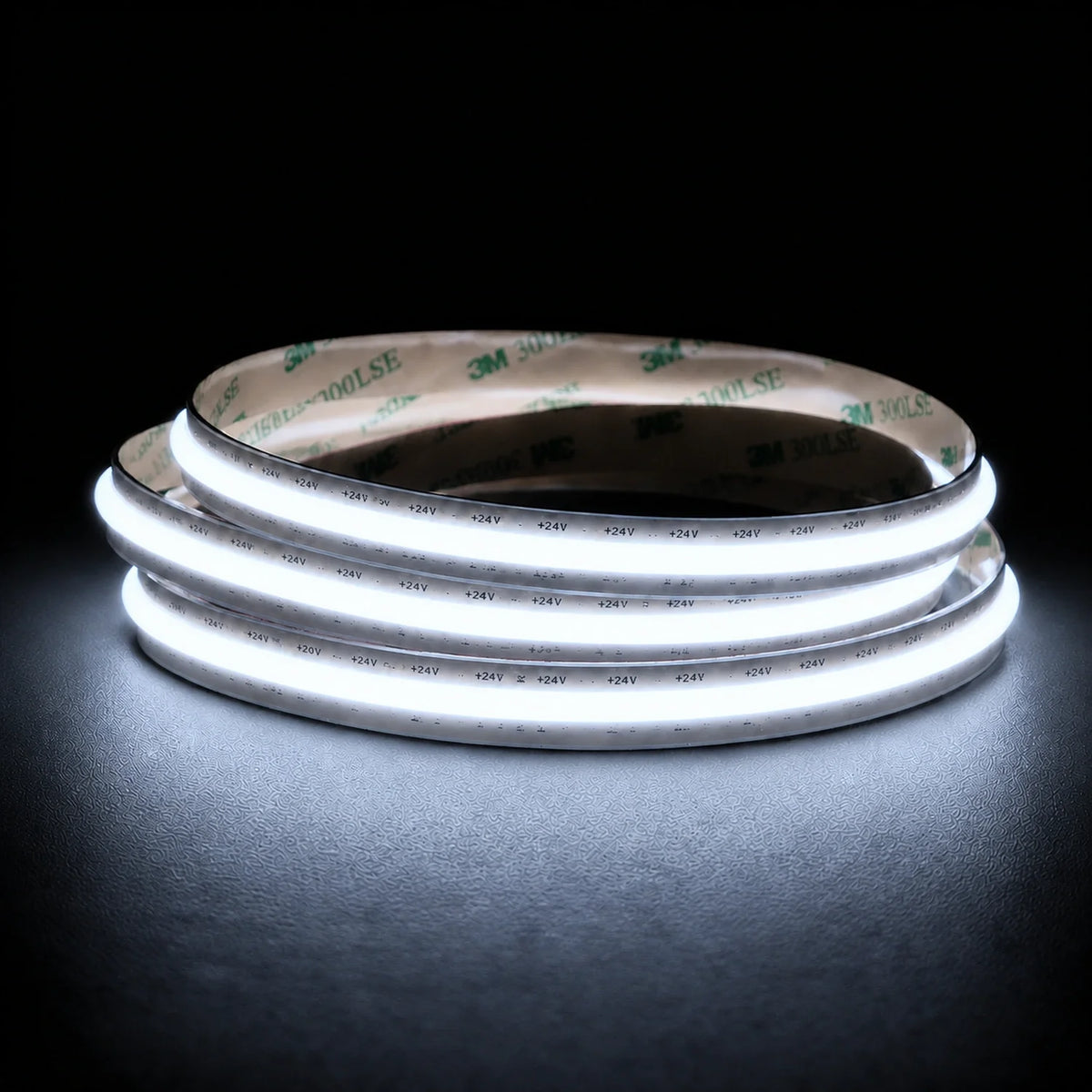

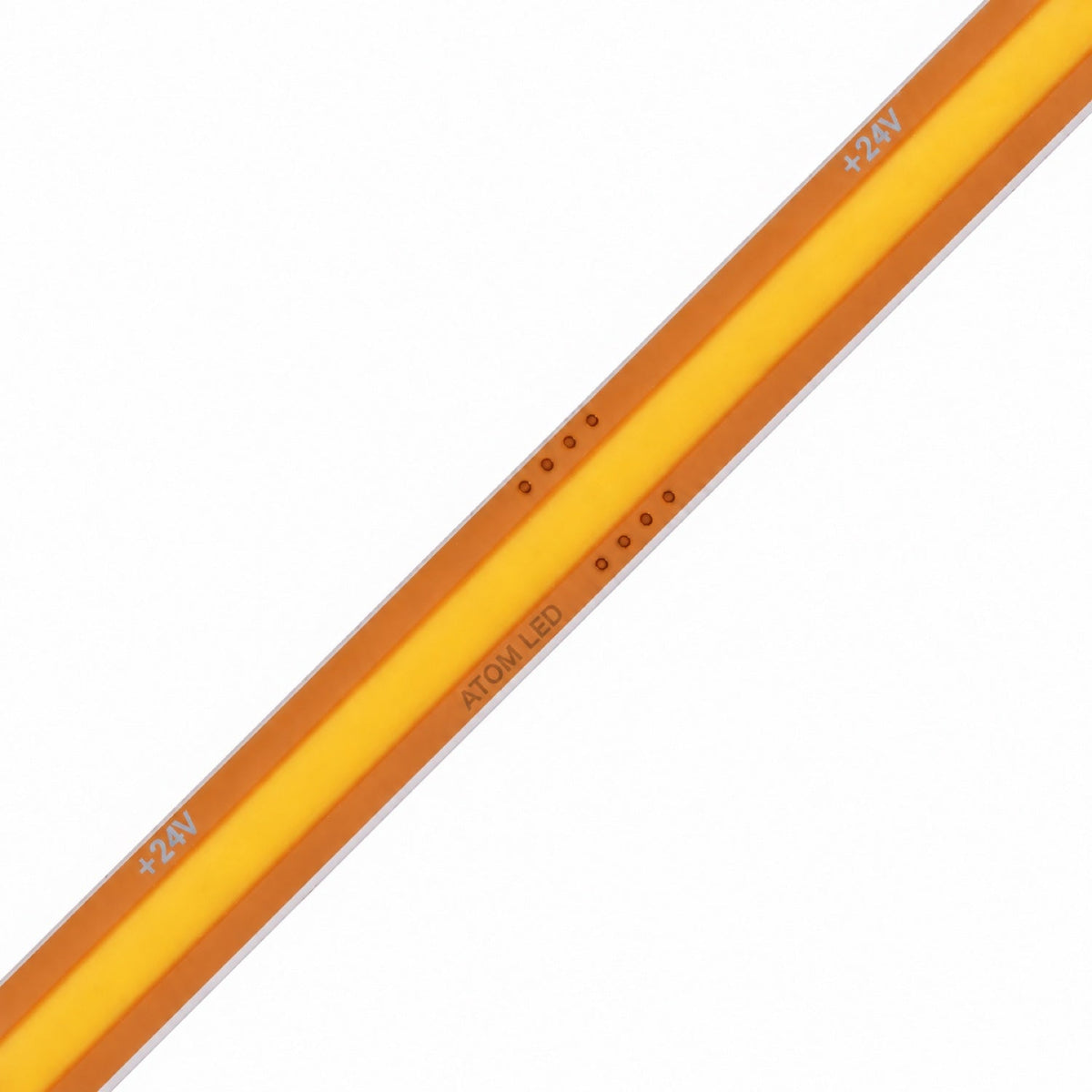

Free Cut COB LED Strip gives shelving, alcoves and fitted furniture a continuous line of light that fits their exact dimensions. This ATOM LED 24V strip is 10mm wide and IP20 rated for dry interiors. Choose one of five white colours and a length from 1 to 10 metres.

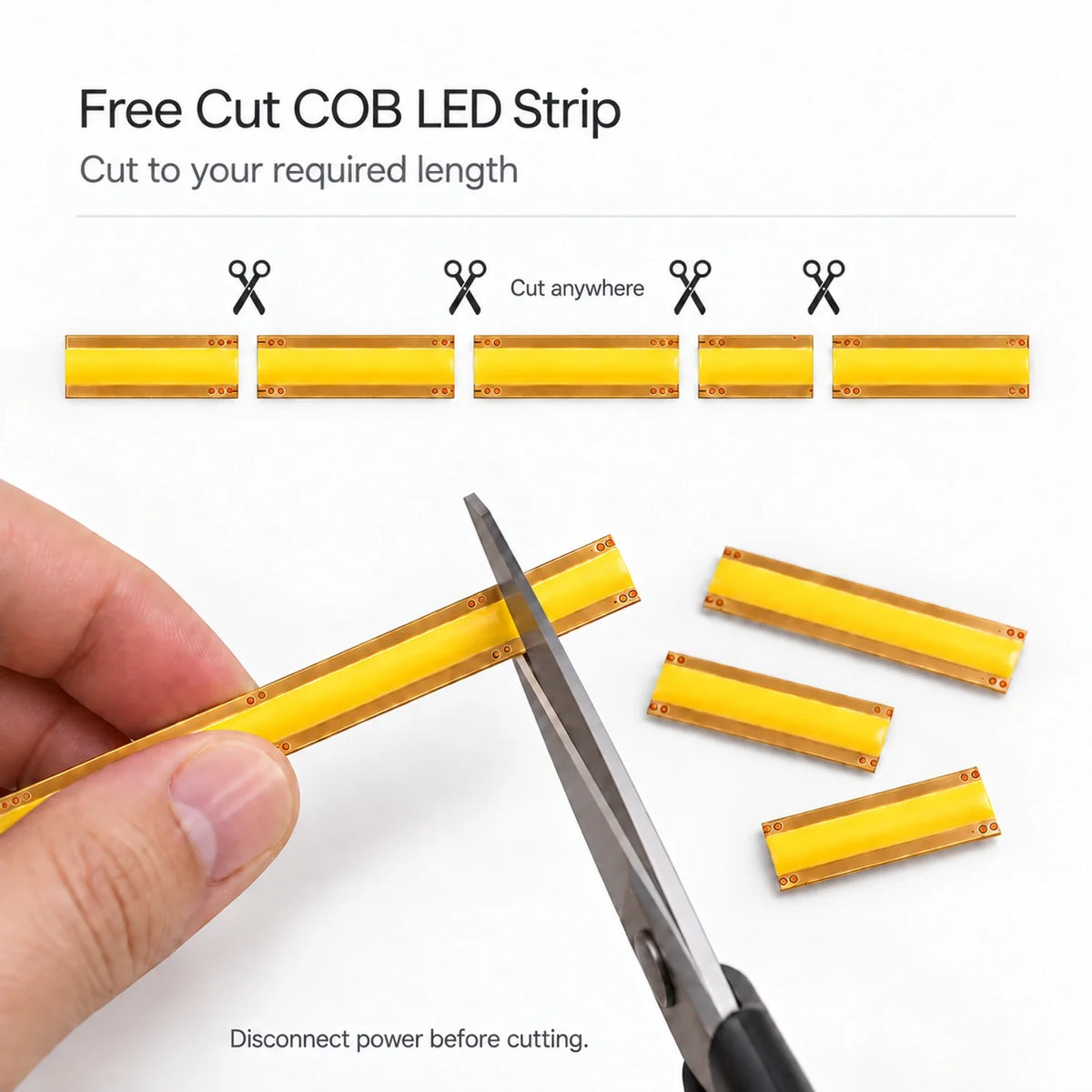

Can I cut this COB strip anywhere?
Yes. This is genuine free-cut COB: it can be shortened at any point, rather than only at fixed cut marks. Disconnect the power before cutting and keep each continuous section within the 10m maximum. Reconnecting separate sections requires suitable termination.

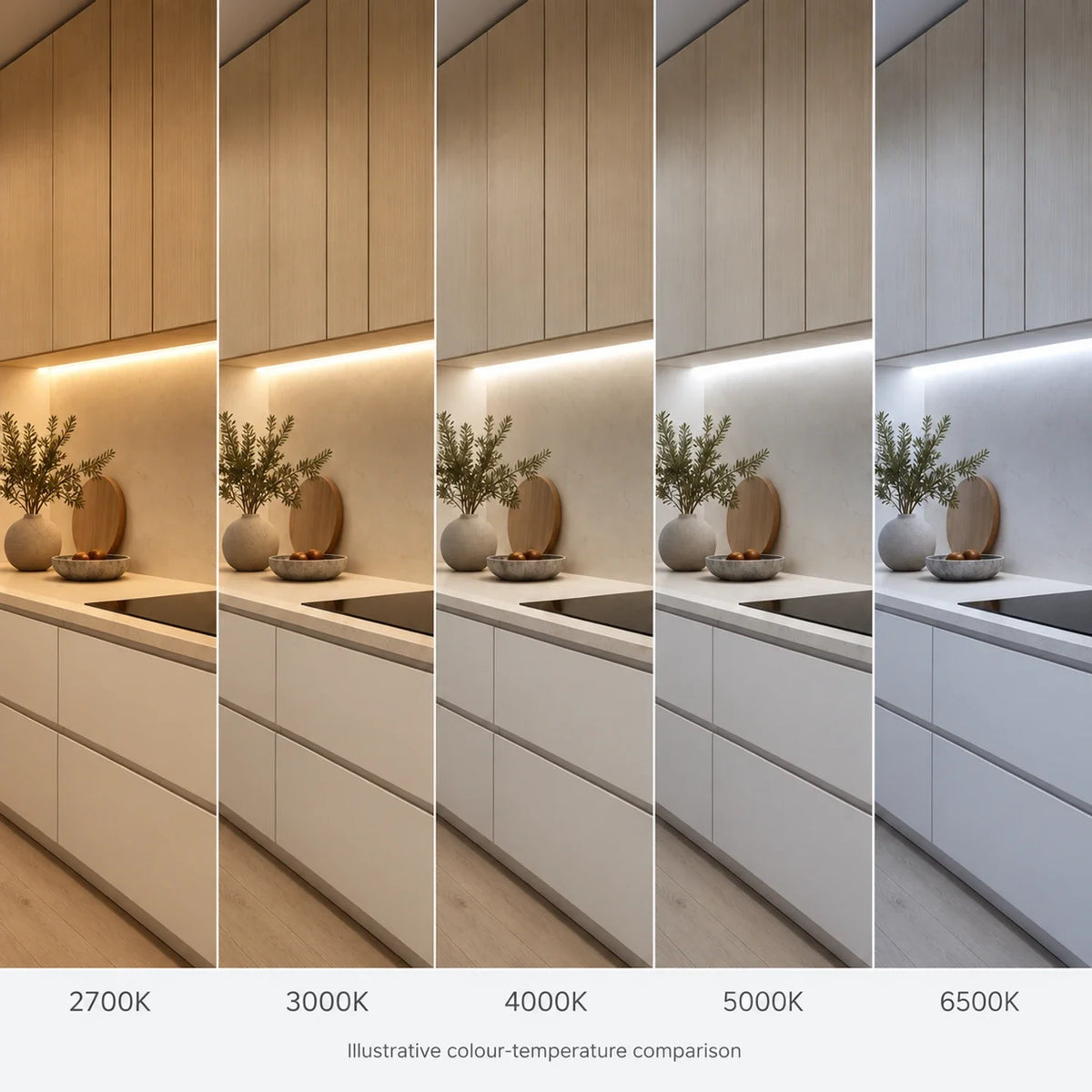

Which white colour should I choose?
2700K gives the warmest appearance; 3000K is a softer warm white. Choose neutral 4000K for a balanced look, 5000K for daylight-style white or 6500K for the coolest finish. These are separate fixed-colour options, not a colour-changing strip.
What LED driver do I need?
Use a separate 24V DC constant-voltage driver. Calculate metres × 9W, add at least 25% to that load and select the next suitable driver rating. For example, 5m uses 45W; adding 25% gives 56.25W, so a 60W driver is a suitable starting point. Follow the driver's installation and loading requirements. Never connect the strip directly to mains.
How do I install it in a profile?

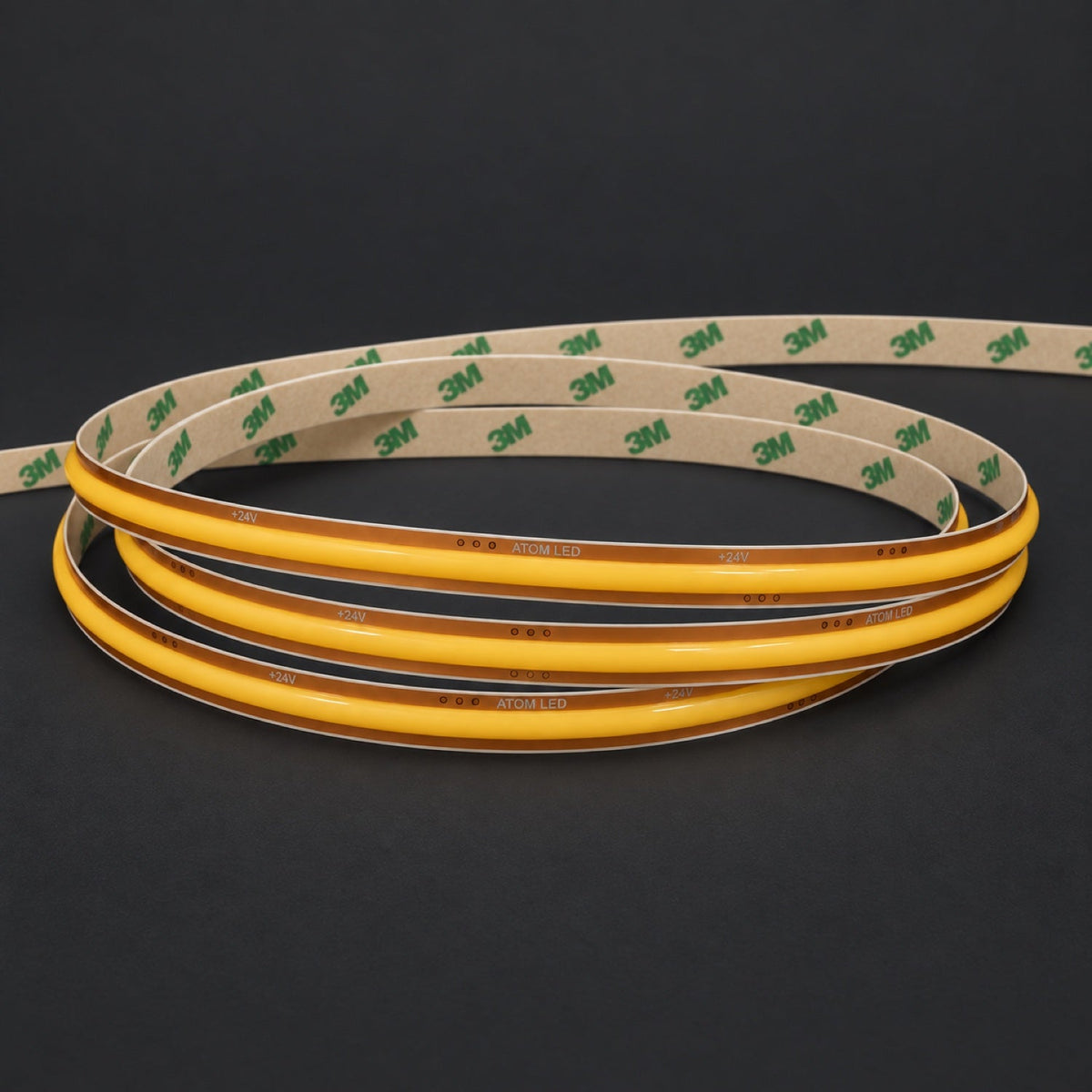

Choose an aluminium profile with internal space for a 10mm strip. Mount on a clean, dry surface using the 3M Tape backing, with accessible wiring and power supply. IP20 provides no water protection: avoid splashes, steam and wet locations.
Installation images are illustrative. Profiles, drivers and dimming controls are supplied separately.
Need an exact cut or several prepared lengths? Our UK-based bespoke-lighting service can help with this ATOM LED strip's cut-anywhere design and 10m limit. Send your made-to-measure requirements.

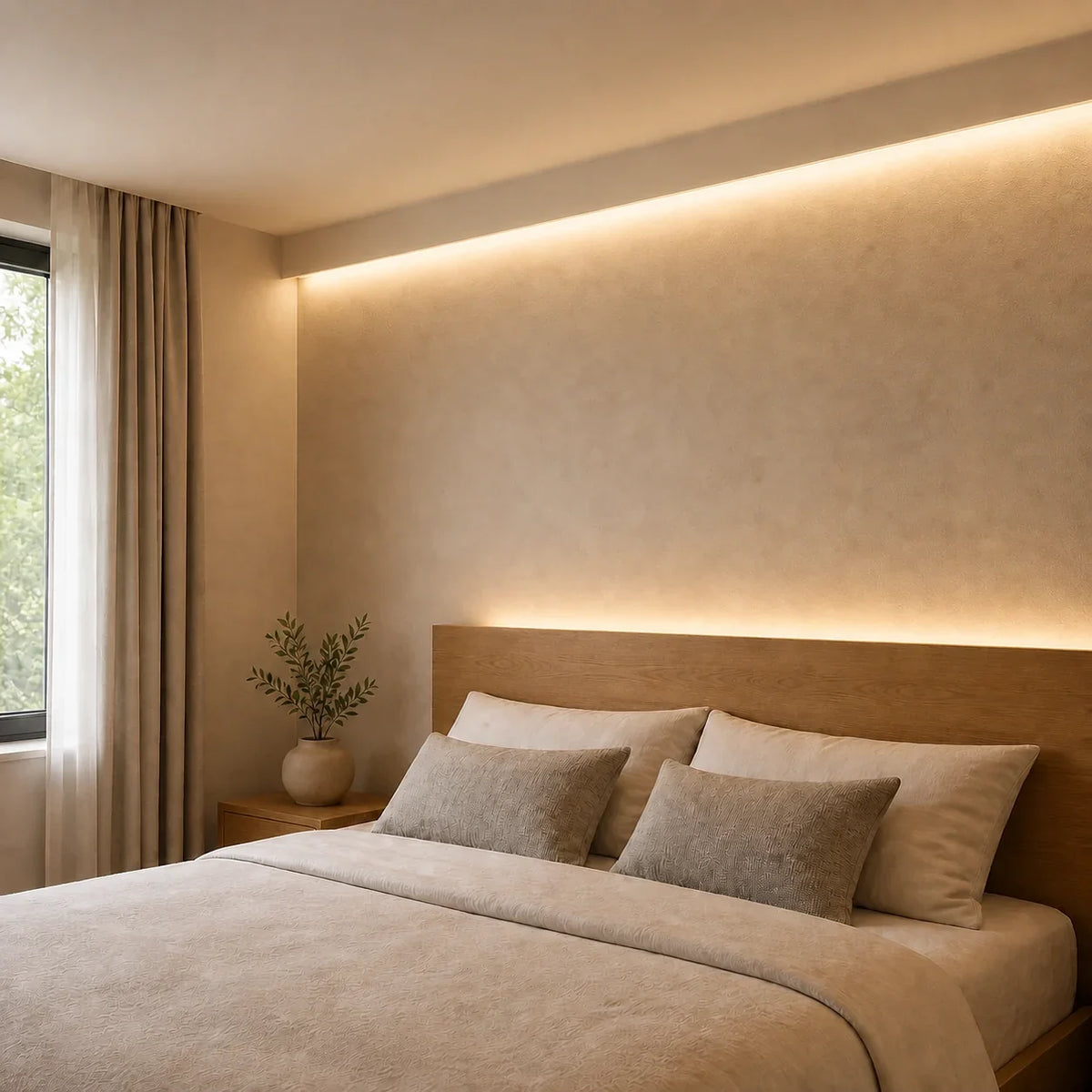

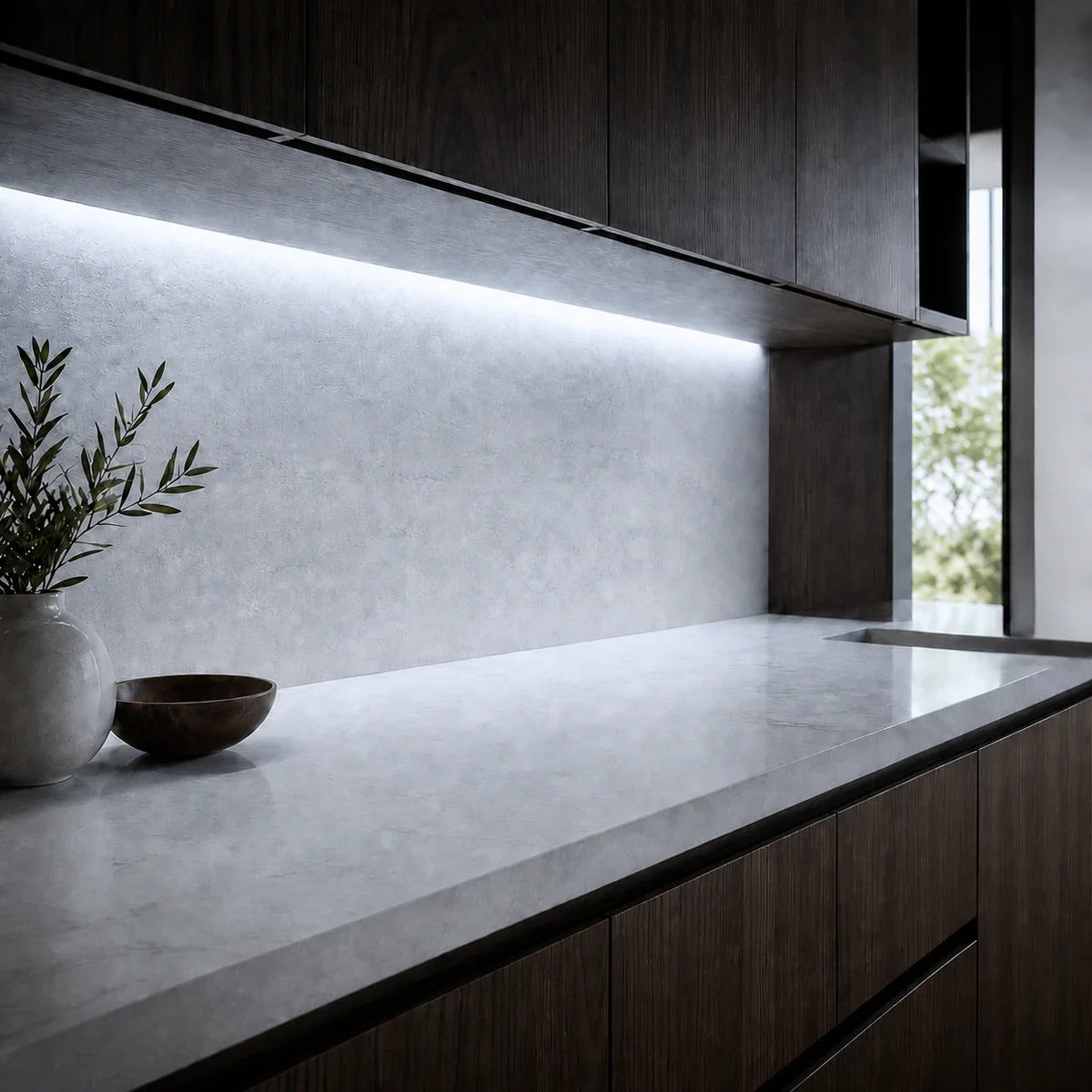

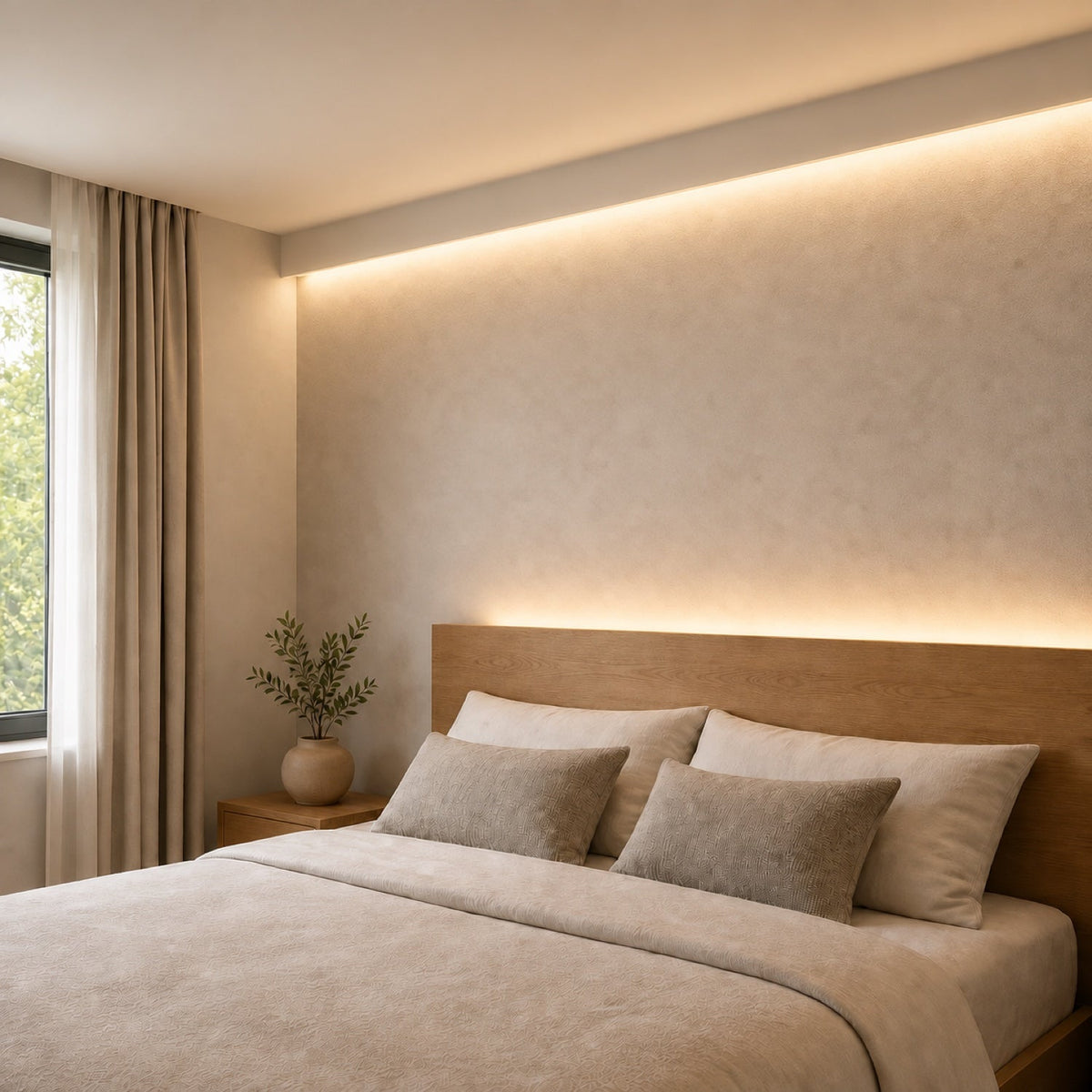

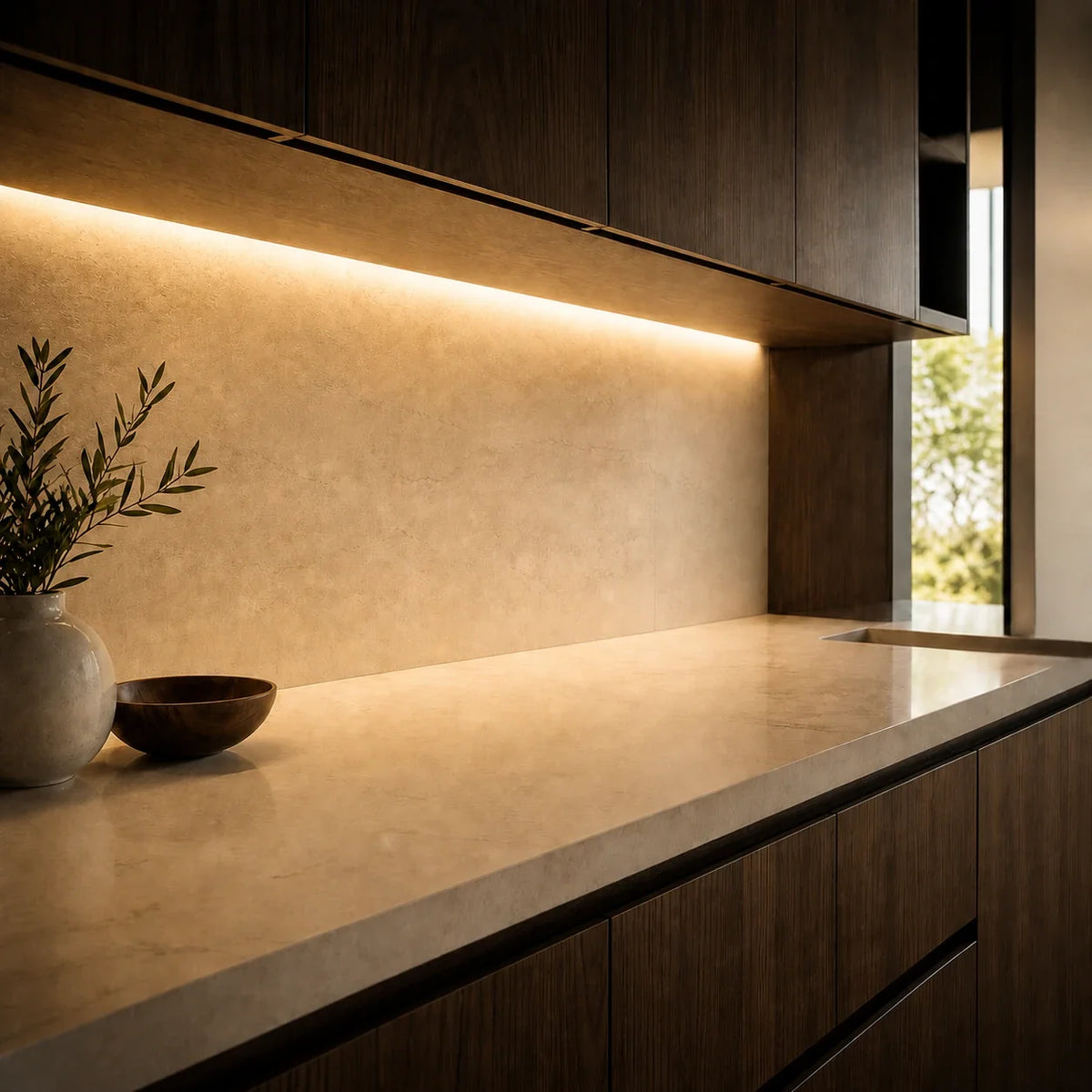

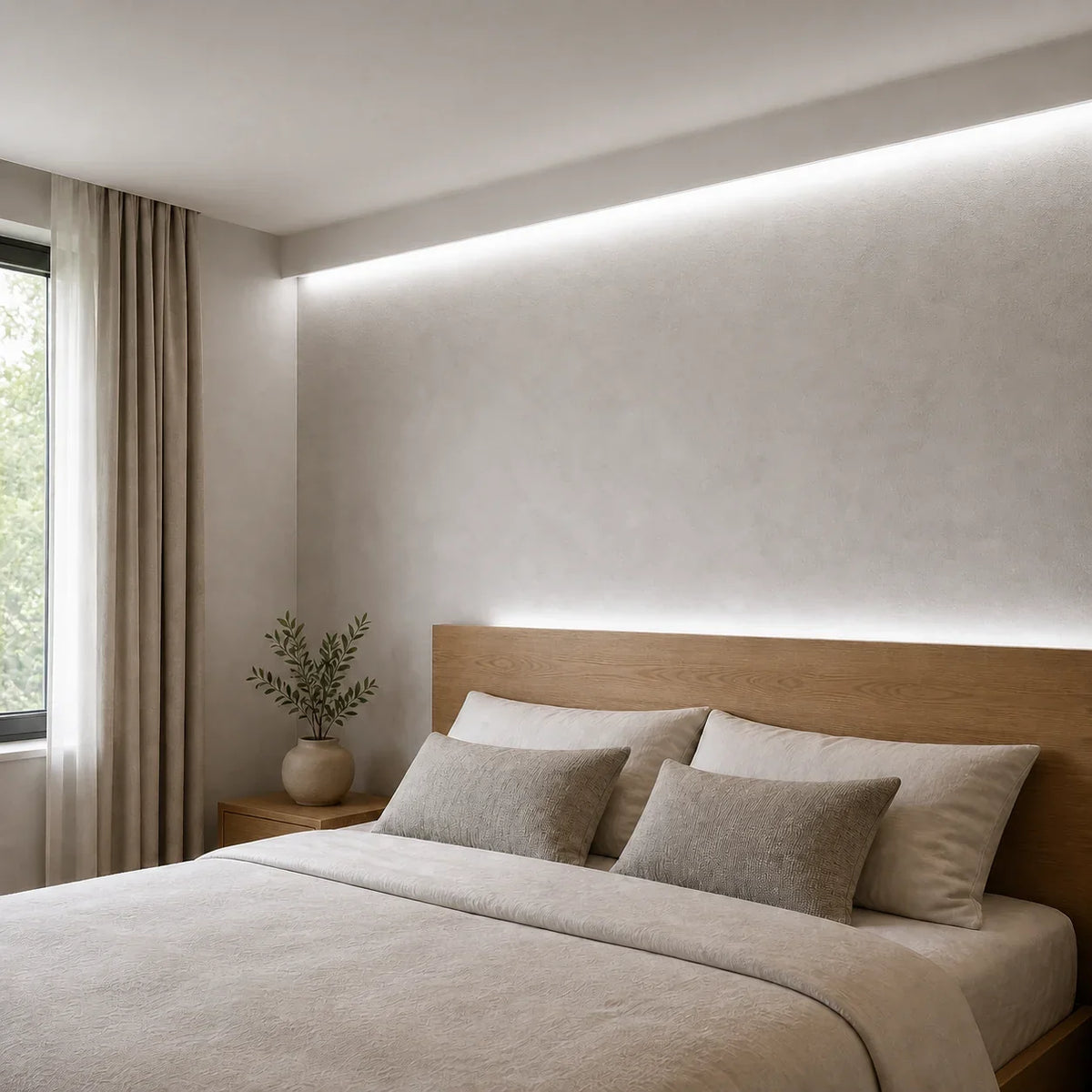

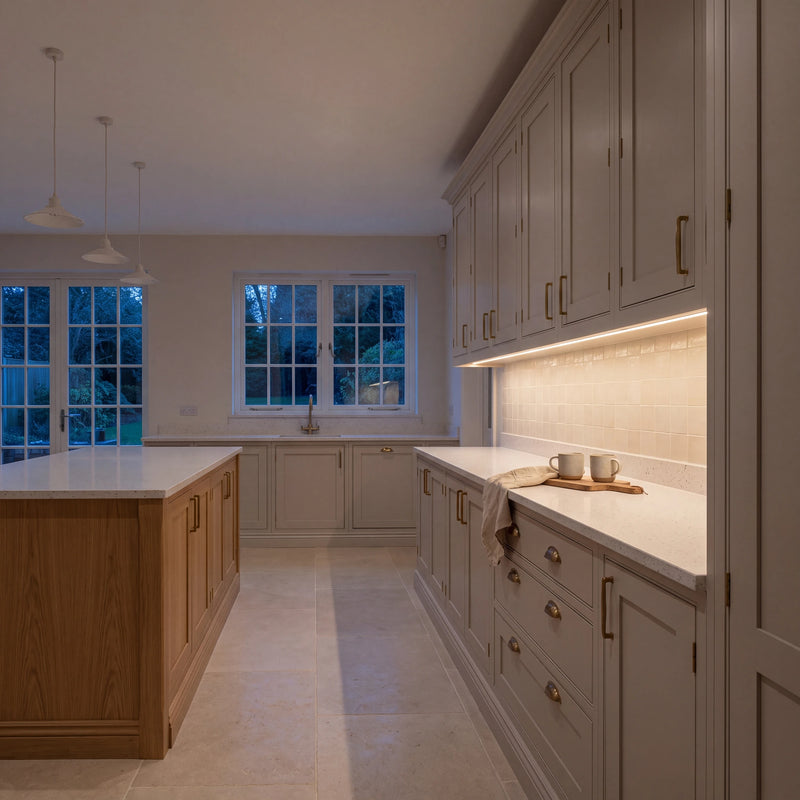

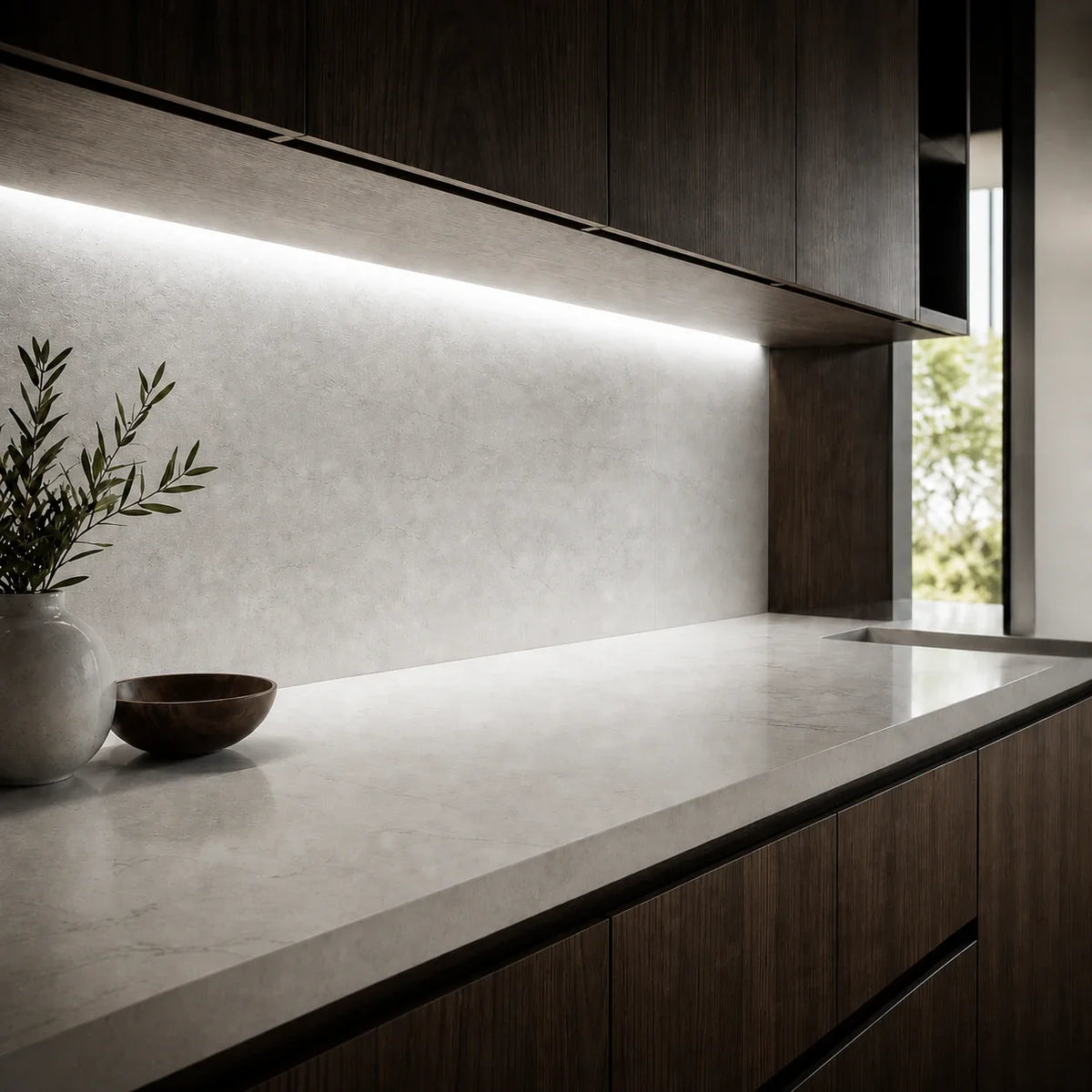

See the installed look
Illustrative lighting examples. The finished appearance varies with the room, surfaces and dimming level. Use IP20 strip in dry indoor locations.
Order specification
Max Length: 10 Metre
Cable Length: 150mm included
Specifications
- Brand
- ATOM LED
- Product type
- COB LED Strip
- Light colour
- Warm White 2700K, Warm White 3000K, Natural White 4000K, Daylight 5000K, Cool White 6500K
- Voltage
- 24V DC
- Power per metre
- 9 W/m
- LEDs per metre
- 340 LEDs/m
- CRI
- >90
- IP rating
- IP20 Non-Waterproof
- Dimensions
- 10mm wide
- Width
- 10mm
- Cut points
- Cut Anywhere
- Continuous run
- 10m
- LED type
- COB LED Strip
- Warranty
- 7 Years
