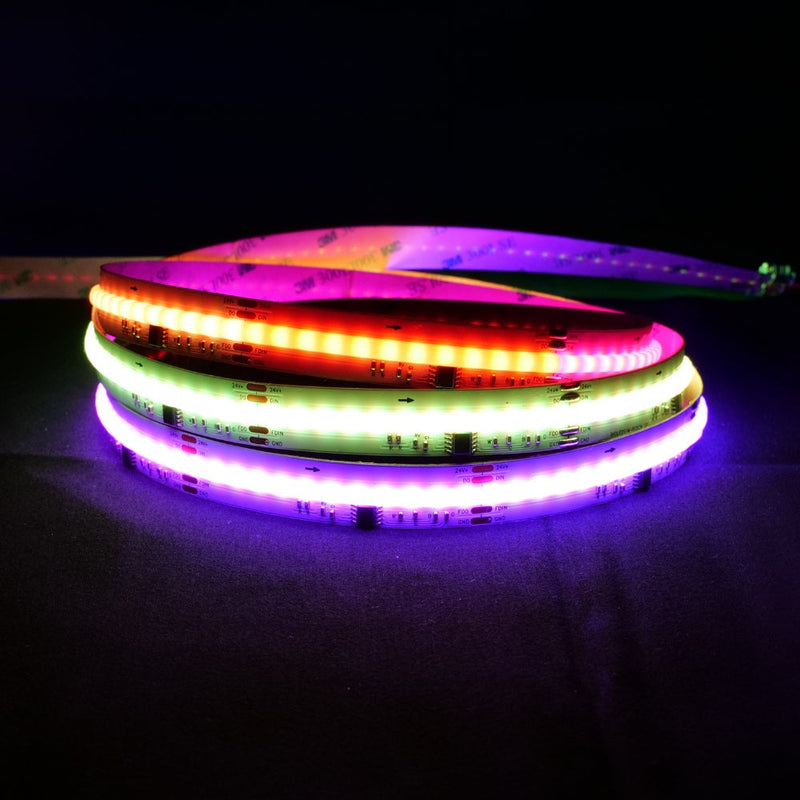

Digital Pixel RGB CCT COB Strip 24V IP20 840 LEDs/m WS2805 15mm Wide

SKU: DPRGBCCTCOBIP20-15MM
£25.76
Inc. VAT

In stock

Length
Cut to nearest cut point.

Description

Our Digital Pixel RGB CCT (2700K–6000K) COB Strip is a high-performance, flexible lighting solution that combines RGB colour control with adjustable white tones for complete creative freedom. Designed for both decorative and functional use, it comes with pre-fitted double-sided tape for easy installation and can be cut to specific lengths, making it suitable for custom projects of any size.

Powered by the WS2805 protocol, this digitally addressable COB LED strip delivers seamless pixel control for smooth gradients, colour chases, and dynamic effects. With a dense 840 LEDs per metre configuration and spotless COB technology, it produces a uniform, glare-free light that enhances the mood and character of any space.

Consuming 26 watts per metre and offering a CRI of 90, it renders colours vividly and accurately—ideal for environments where quality lighting matters, such as retail displays, event venues, studios, and high-end interiors. Energy-efficient and long-lasting, it’s a modern, sustainable choice for creating stunning visual impact.

Specification:

  • Working Voltage: 24V
  • Light Colour: RGB CCT (2700K - 6000K)
  • IC Type: WS2805
  • Pixels: 14 per metre
  • LEDs: 840 COB LEDs/m
  • Width: 15mm
  • Cutting: 7.14cm (71.42mm)
  • Standard Packing: 10m Continuous run
  • Waterproof Rating: IP20 non-waterproof
  • Working Temperature: -20 - 45 degree
  • Dimensions: 15mm wide x 2mm Depth
  • Lumens: 870 lm/m
  • Power: 26W/Meter
  • Cable: 20cm cable length
  • Warranty: 3 years

Specifications

Brand
ATOM LED
Product type
COB LED Strip
Light colour
RGB Multicolour
Voltage
24V
Power per metre
26 Watts
LEDs per metre
840
Lumens per metre
870 lm
CRI
>90
IP rating
IP20 Non-Waterproof
Dimensions
15mm x 2mm
Width
15mm
Bending
Vertical Bend
Cut points
7.14cm (71.42mm)
Continuous run
10m one side & 20m two side
Operating temperature
'-25°C to 40°C
LED type
COB
Rated life
50,000
Input
14 Pixels / metre
Output
WS2805 Protocol
Certification
UKCA, CE, RoHS
Warranty
5 year warranty
