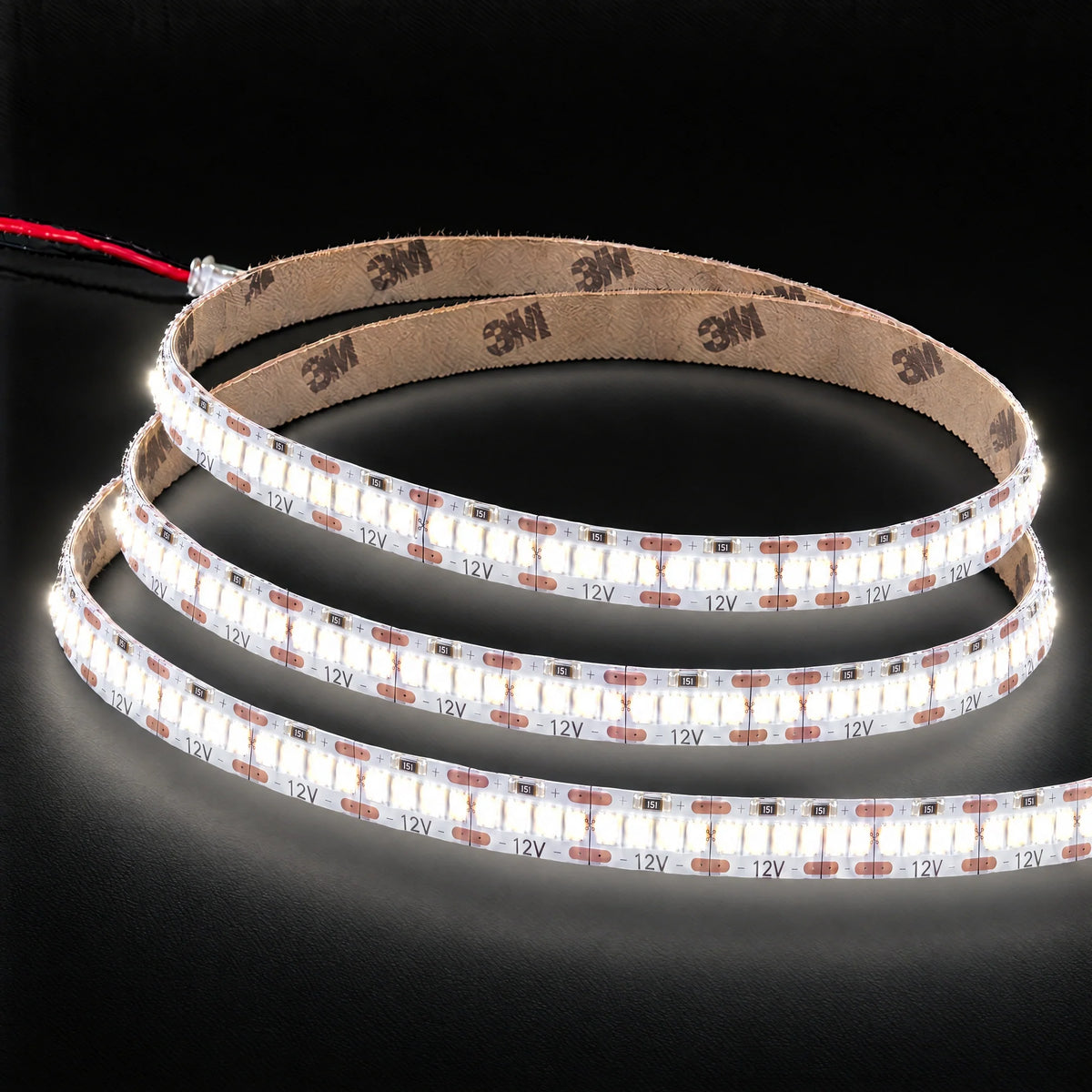

Natural White 4000K LED Strip 12V 240 LEDs/m 5m IP20
In stock
-
IP20 indoor
-
12V DC
-
Free Delivery
-
5m run
Description

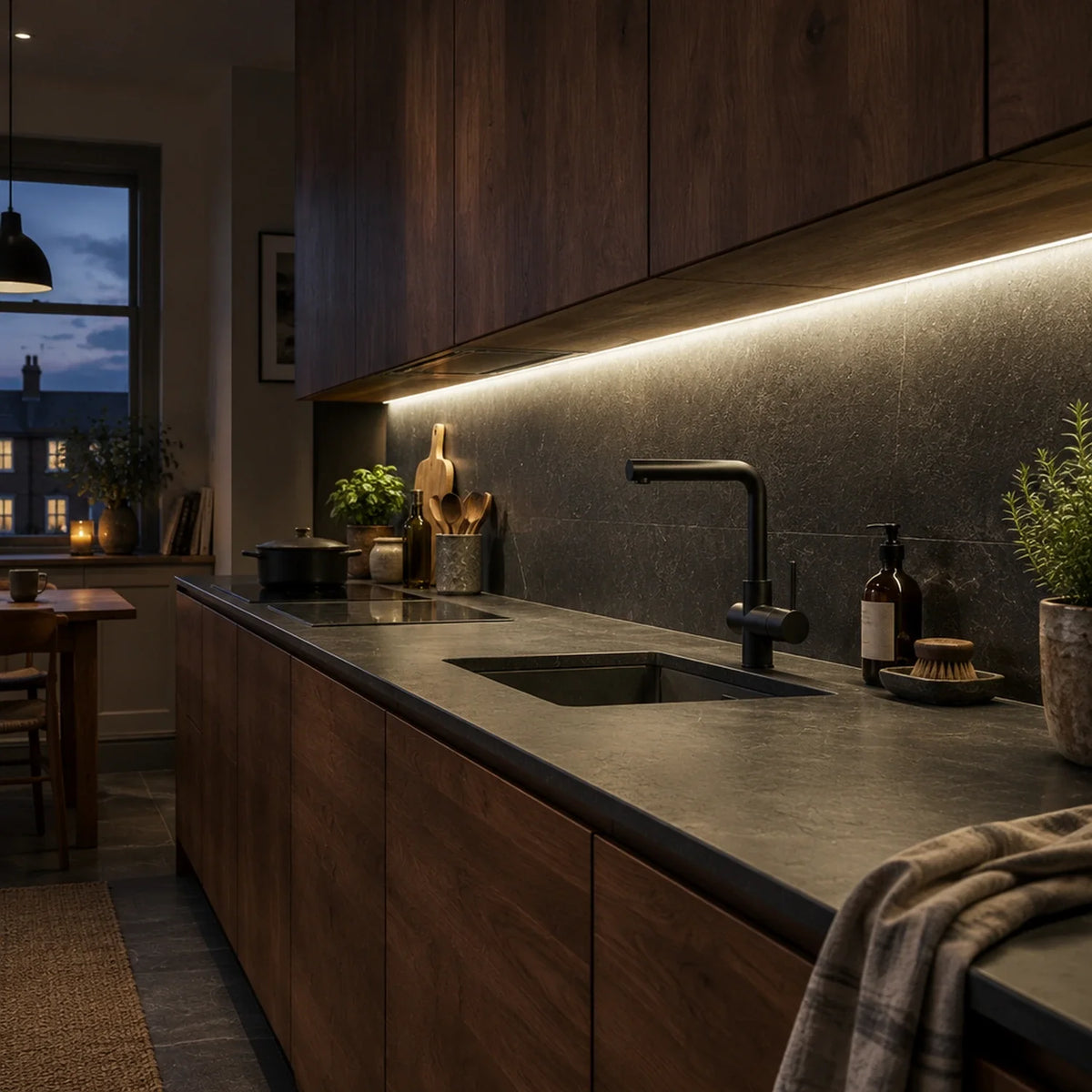

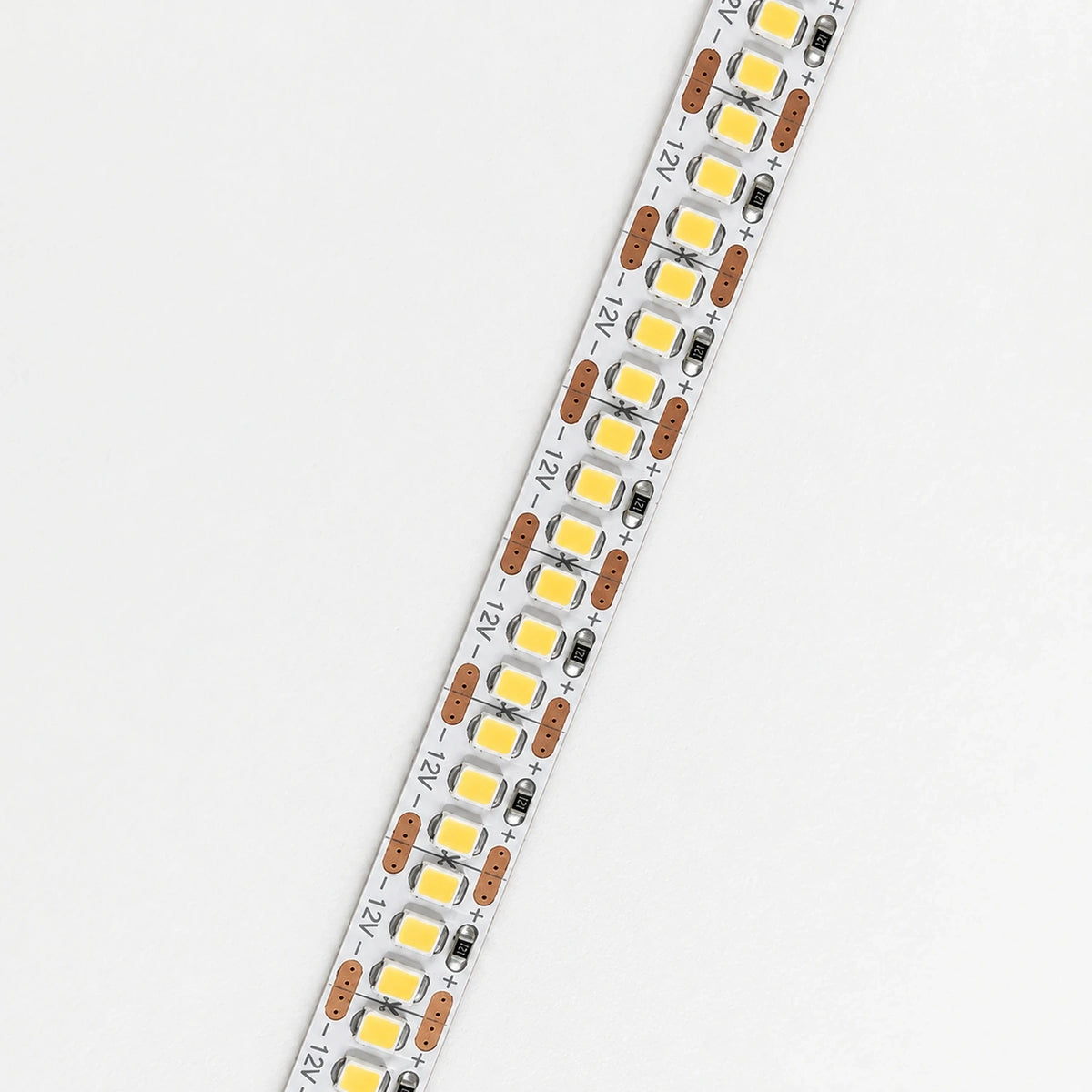

Natural White 4000K LED strip with CRI Ra 98 for detailed interior lighting. Balanced white light for kitchen worktops, home offices, shelving and retail displays. Closely spaced SMD 2835 LEDs help reduce visible gaps between light points, while the 10mm PCB fits suitable LED profiles. Supplied as a 5-metre roll with a 5-year warranty.
Power and dimming
Use a regulated 12V DC constant-voltage power supply, ordered separately. At 20W per metre, a full 5m roll has a nominal 100W load; allow at least 30% driver headroom, giving a minimum 130W rated output before any manufacturer derating. Dimming requires a compatible 12V DC controller rated for the connected load. Plan longer installations as separately fed runs of no more than 5m.
Cutting and installation

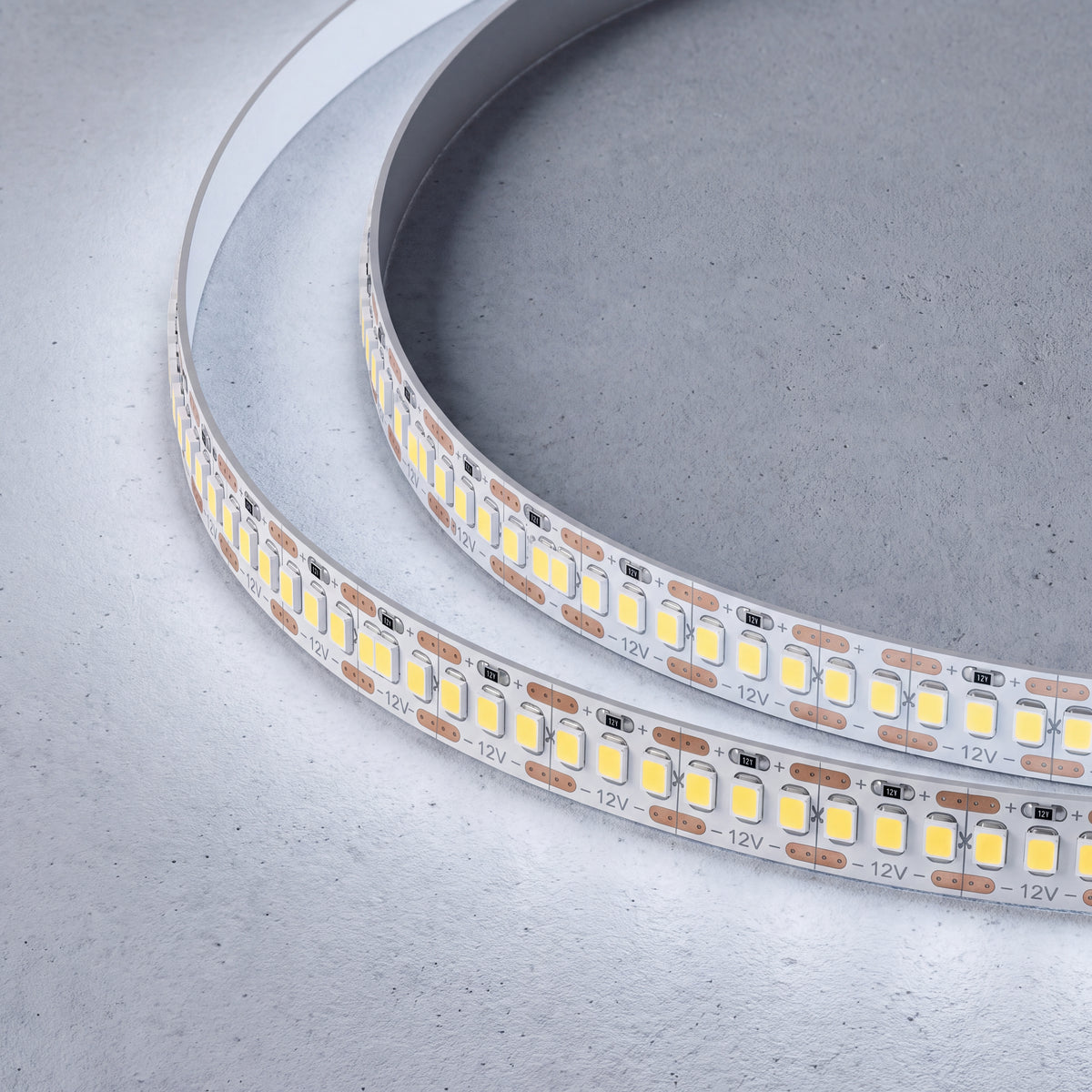

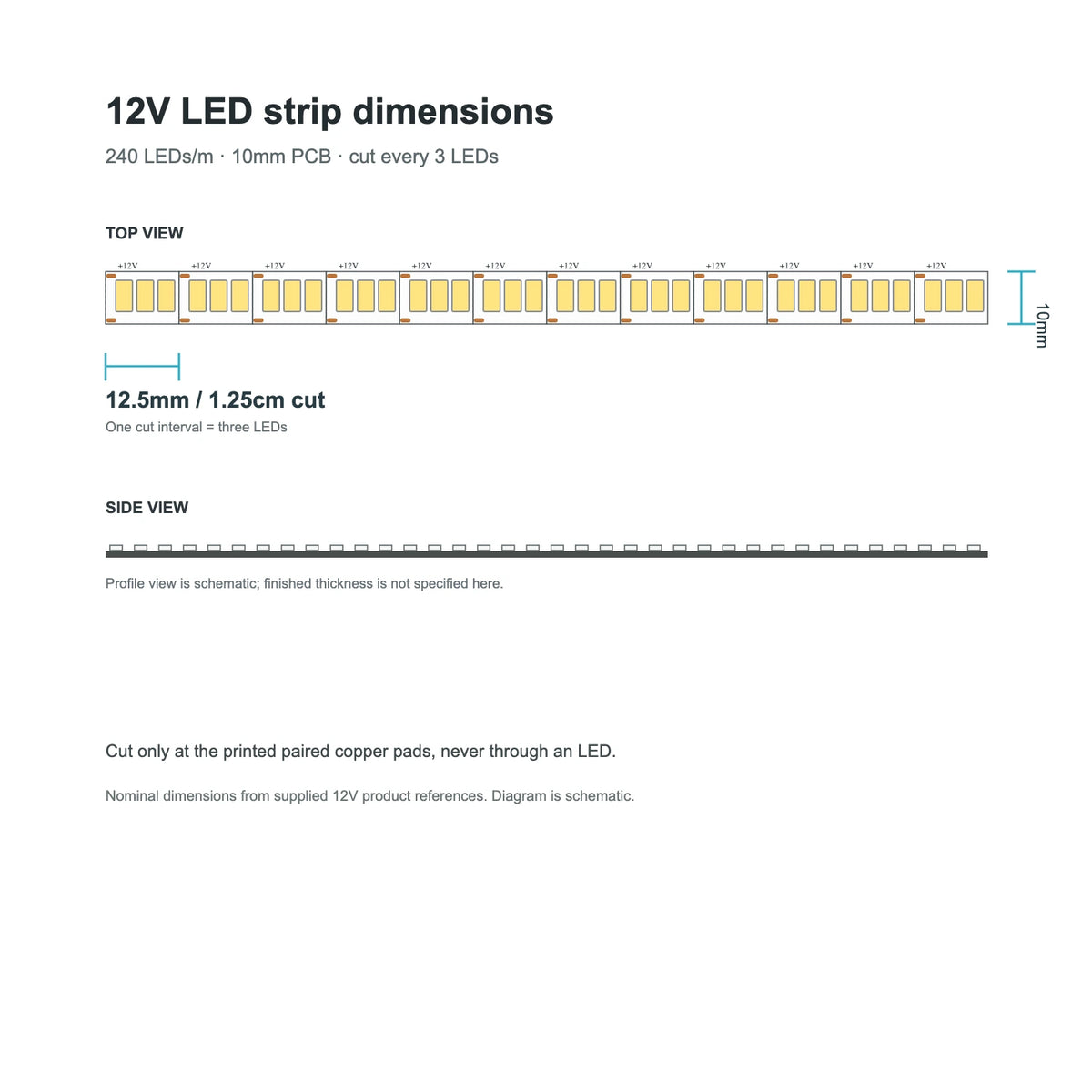

Cut only at the marked 12.5mm (1.25cm) intervals, with three LEDs per cutting unit. Mount in a suitable aluminium LED profile to dissipate heat. Apply the 3M Tape to a smooth, clean, dry surface; fully unroll and test the strip before final fixing. Keep connections correctly polarised and isolate power before cutting or wiring.
For dry indoor spaces
IP20 is non-waterproof: keep the strip away from water, splashes and condensation. Read the product datasheet and installation guide in Technical Documents before installation.
Made to measure for your project
UK LED Lights supplies bespoke lighting for UK homes, trade and commercial projects. Ask about custom-cut LED strip and project support, with lengths prepared to the permitted cut marks and run limits.
Specifications
- Brand
- ATOM LED
- Light colour
- Natural White
- Power per metre
- 20W/m
- LEDs per metre
- 240 LEDs/m
- Lumens per metre
- 1,947 lm/m
- CRI
- Ra 98
- IP rating
- IP20 Non-Waterproof
- Width
- 10mm
- Cut points
- 12.5mm (1.25cm)
- Continuous run
- 5m
- Operating temperature
- -25°C to +60°C
- LED type
- SMD 2835
- Beam angle
- 120°
- Warranty
- 5 Years
Technical Documents
-
