Bookcase & Shelf Mini LED Neon Flex 4×10mm 24V IP65
In stock
Description
Our Mini Neon Flex lights are bespoke products, made to measure and cut to your specific requirements.

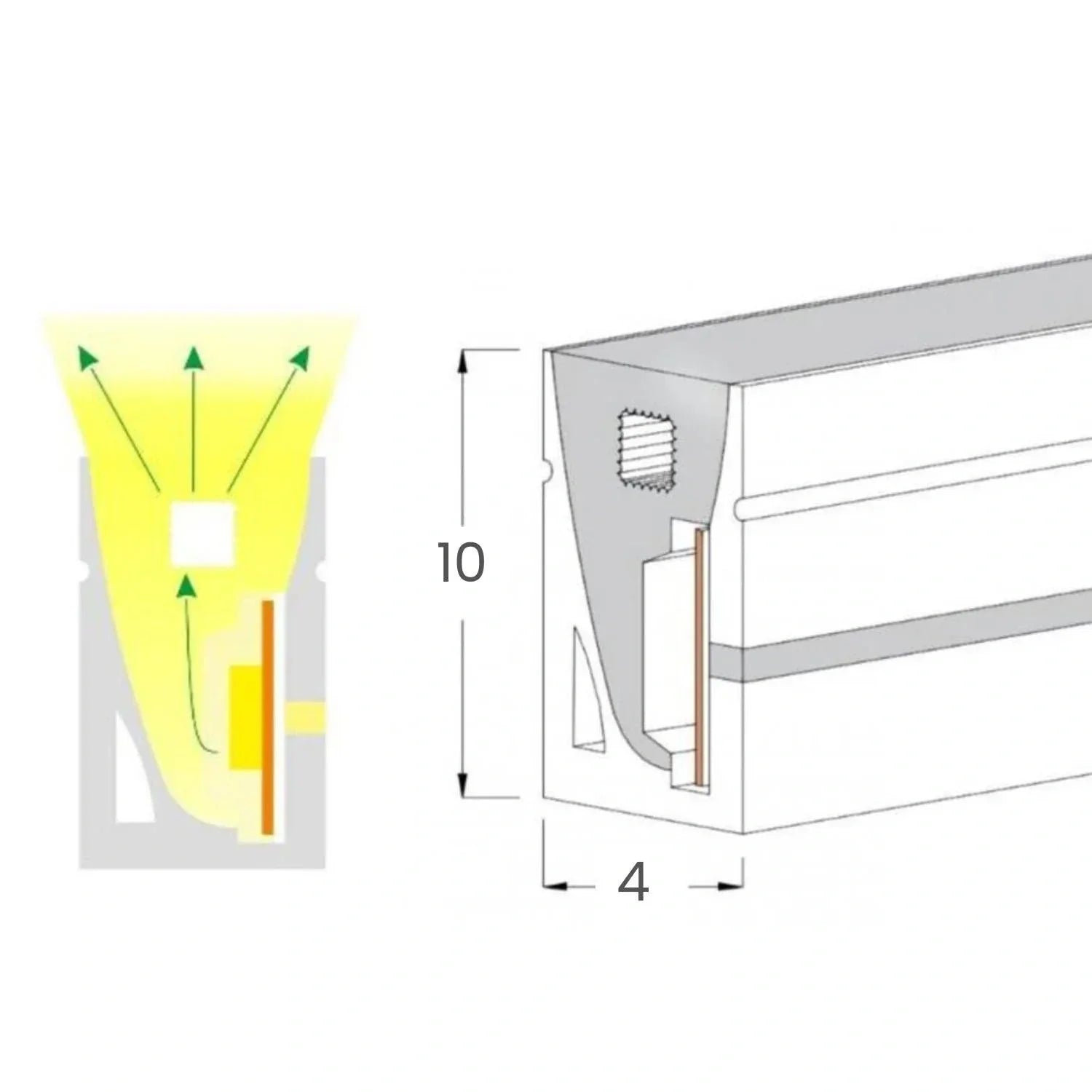

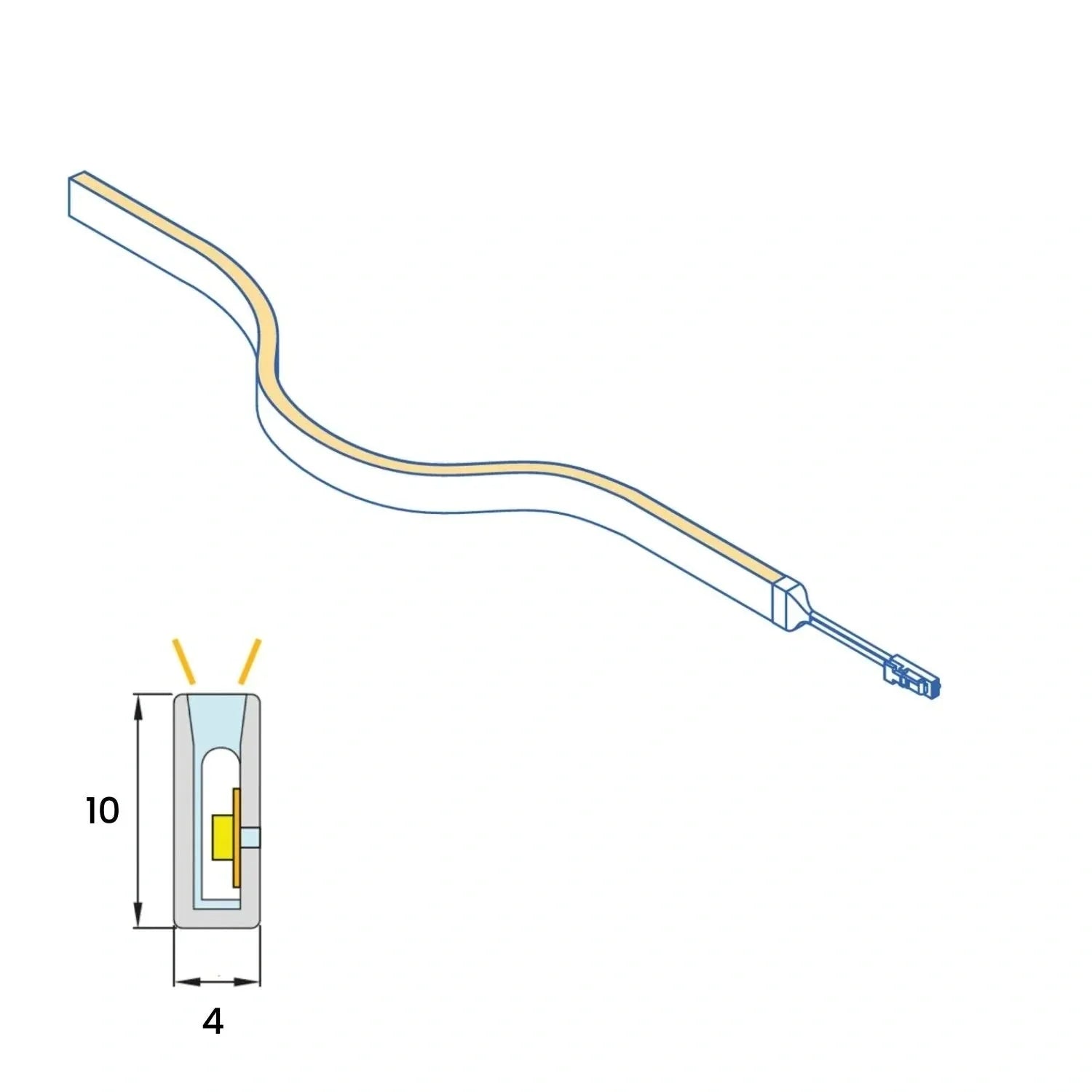

Profile dimensions: 4×10mm (W × D) — 4mm wide × 10mm deep.

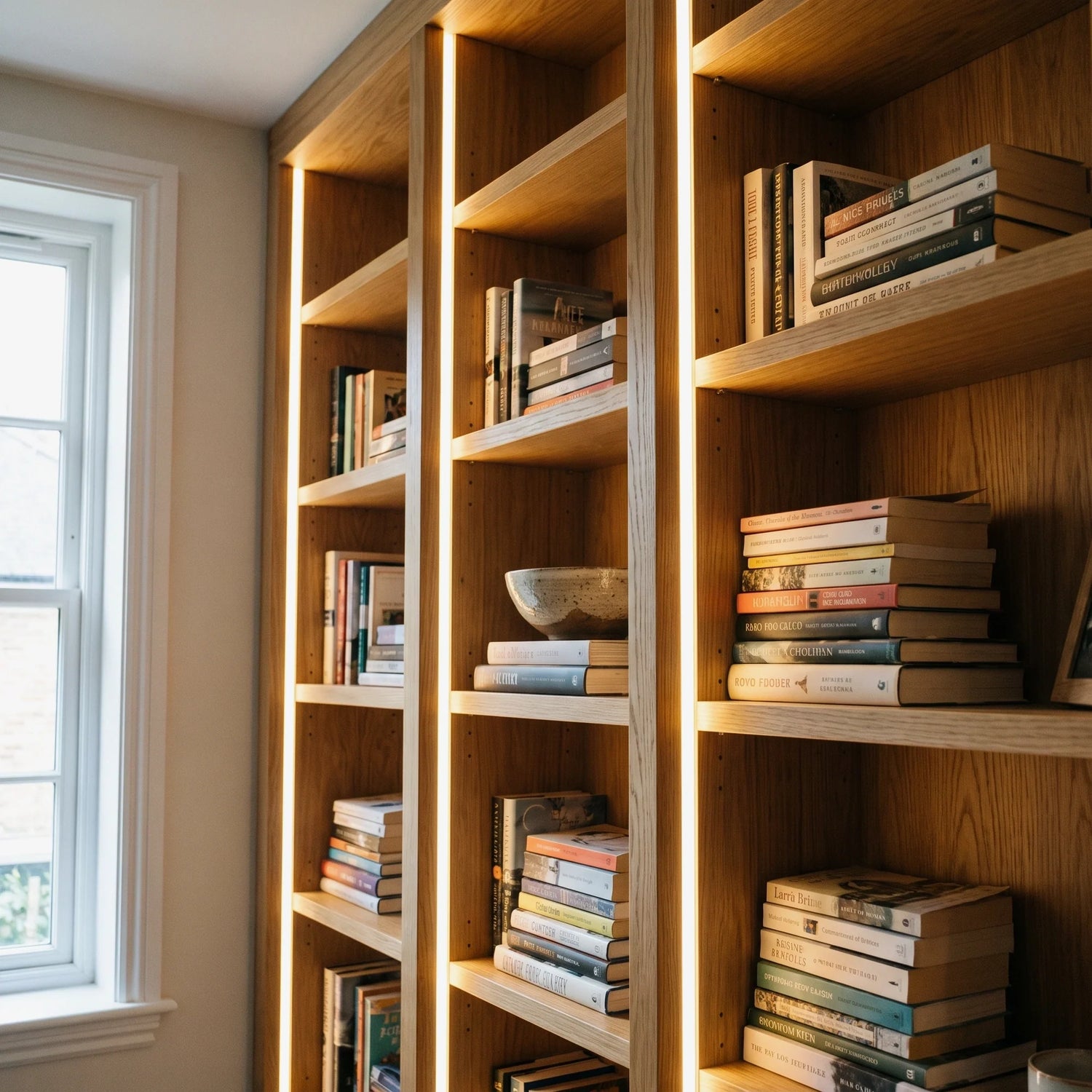

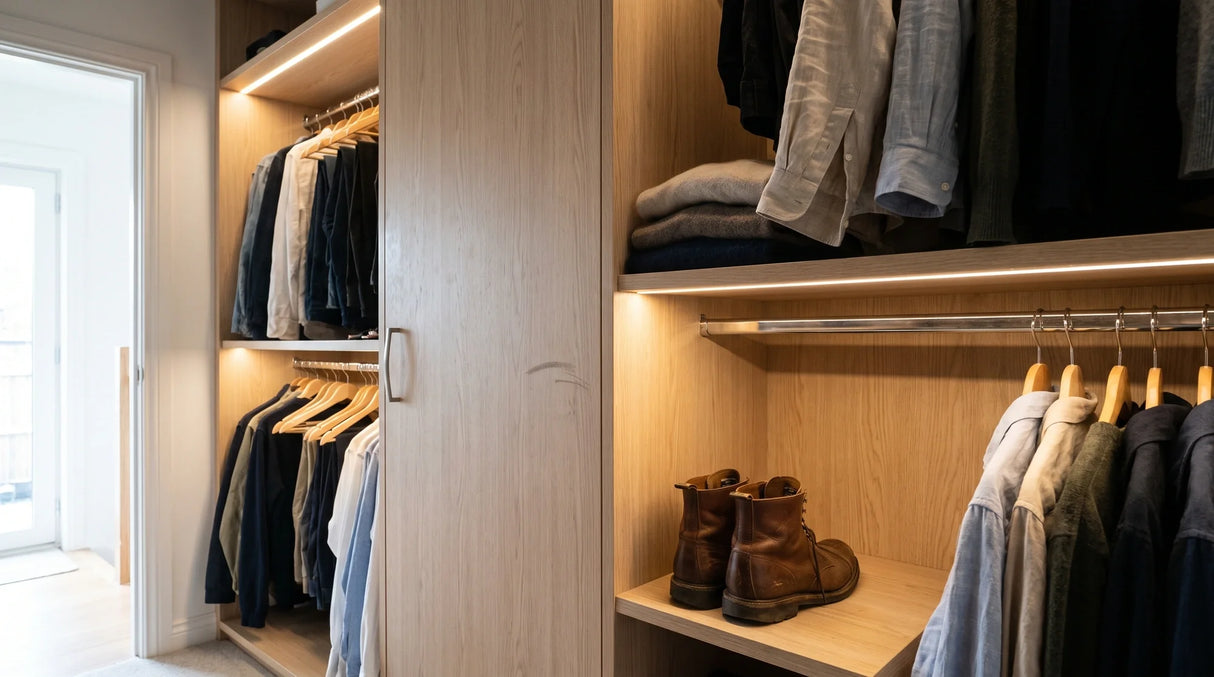

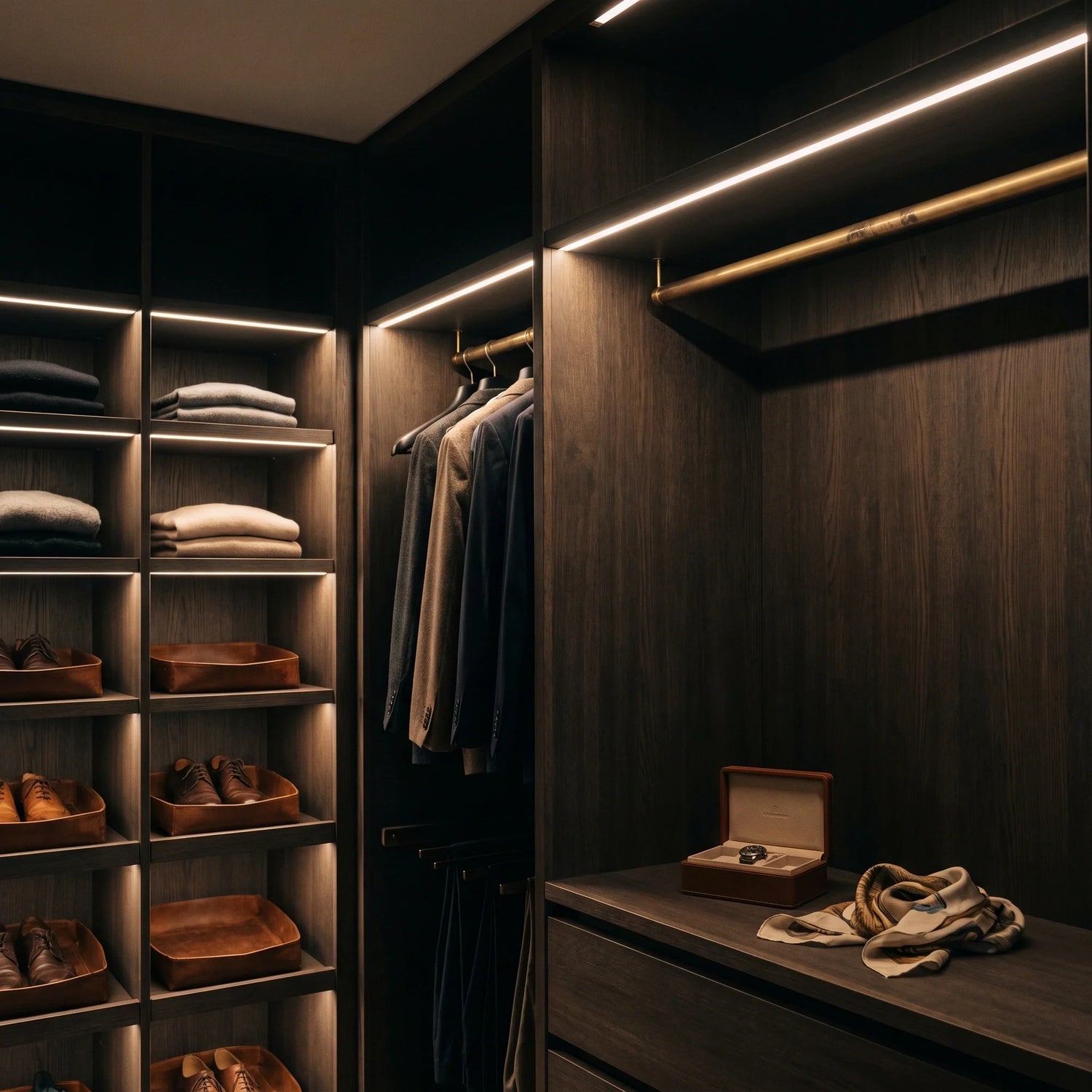

Light bookcase uprights, shelves and deep cabinet reveals with a slim 4mm face that sits neatly within detailed joinery. The 10mm body depth lets the emitter be set back from direct view, while the side-bend format follows horizontal turns across the planned recess.

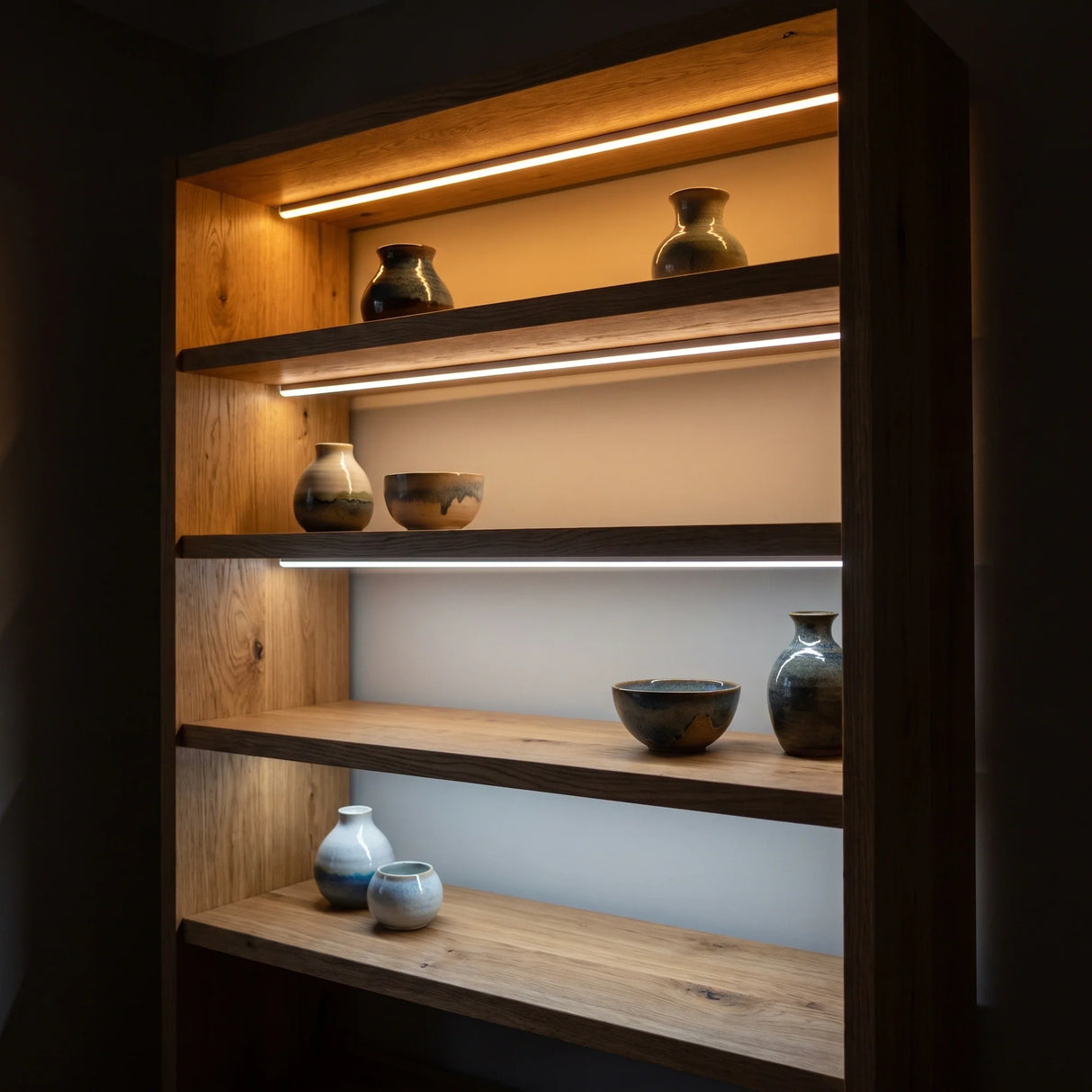

Three white-light choices

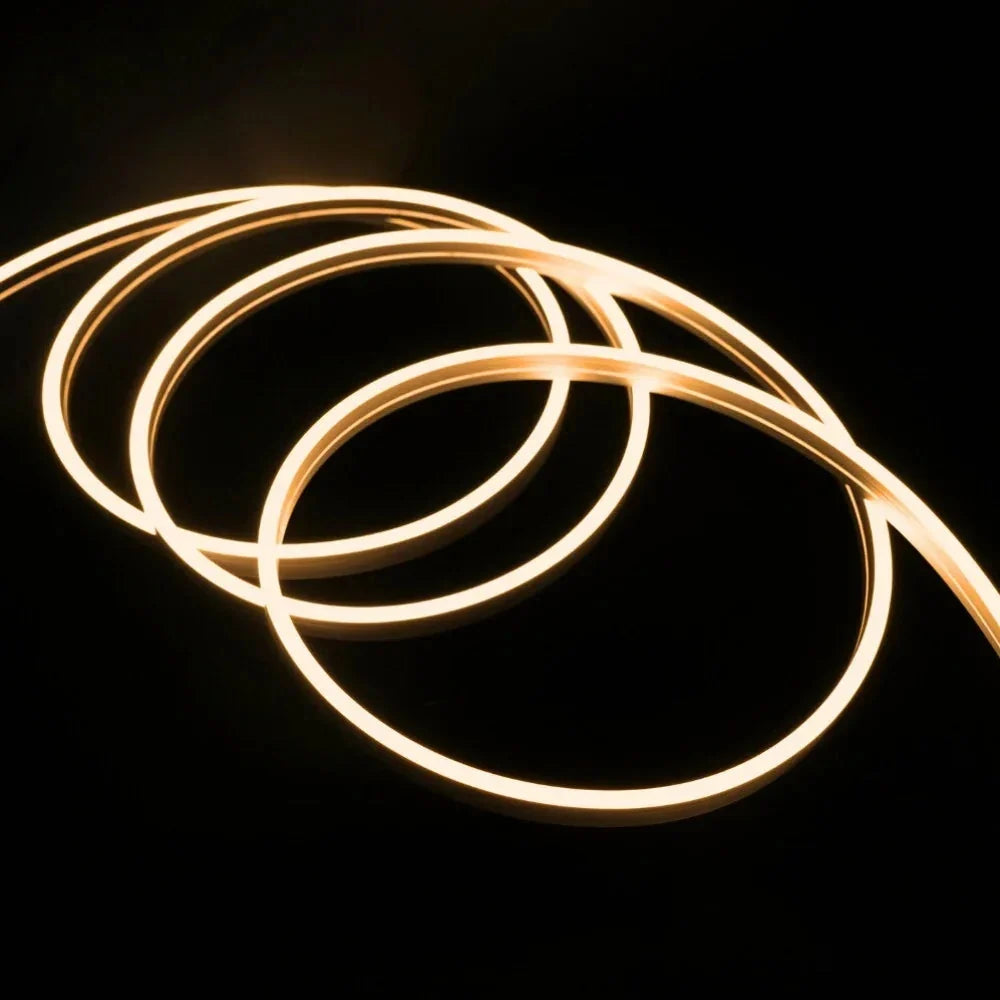

Choose 3000K for a warmer display, 4000K for a neutral working light or 6000K for a cooler presentation. The 24V product uses 168 LEDs/m at 9.5W/m, with a stated 390–395 lm/m output and CRI above 80. Use a correctly sized 24V driver and keep one continuous run to no more than 5 metres.
The strip may be cut at 35mm (3.5cm) marks. Confirm the groove and mounting method before machining the finished furniture. Its IP65 silicone body is suitable where dust and occasional water jets are a concern, provided ends and joins are sealed; it is not submersible.
UK LED Lights offers UK-based bespoke-lighting support and made-to-measure cuts at the stated marks, within the 5m run limit. Plan your joinery lighting with us.
Specifications
- Brand
- ATOM LED
- Product type
- LED Neon Flex
- Light colour
- Warm White 3000K, Natural White 4000K, Cool White 6000K
- Voltage
- 24V
- Power per metre
- 9.5W
- LEDs per metre
- 168
- Lumens per metre
- 390-395 lm/m
- CRI
- >80
- IP rating
- IP65 Waterproof
- Dimensions
- 4×10mm (W × D)
- Width
- 4mm
- Depth
- 10mm
- Bending
- Horizontal bend / side bend
- Cut points
- 35mm (3.5cm)
- Continuous run
- 5m
- Operating temperature
- -20°C to 50°C
- LED type
- 2835
- Rated life
- 50,000
- Beam angle
- 120°
- Material
- Silicone
- Certification
- UKCA, CE, RoHS
- Warranty
- 4 years
