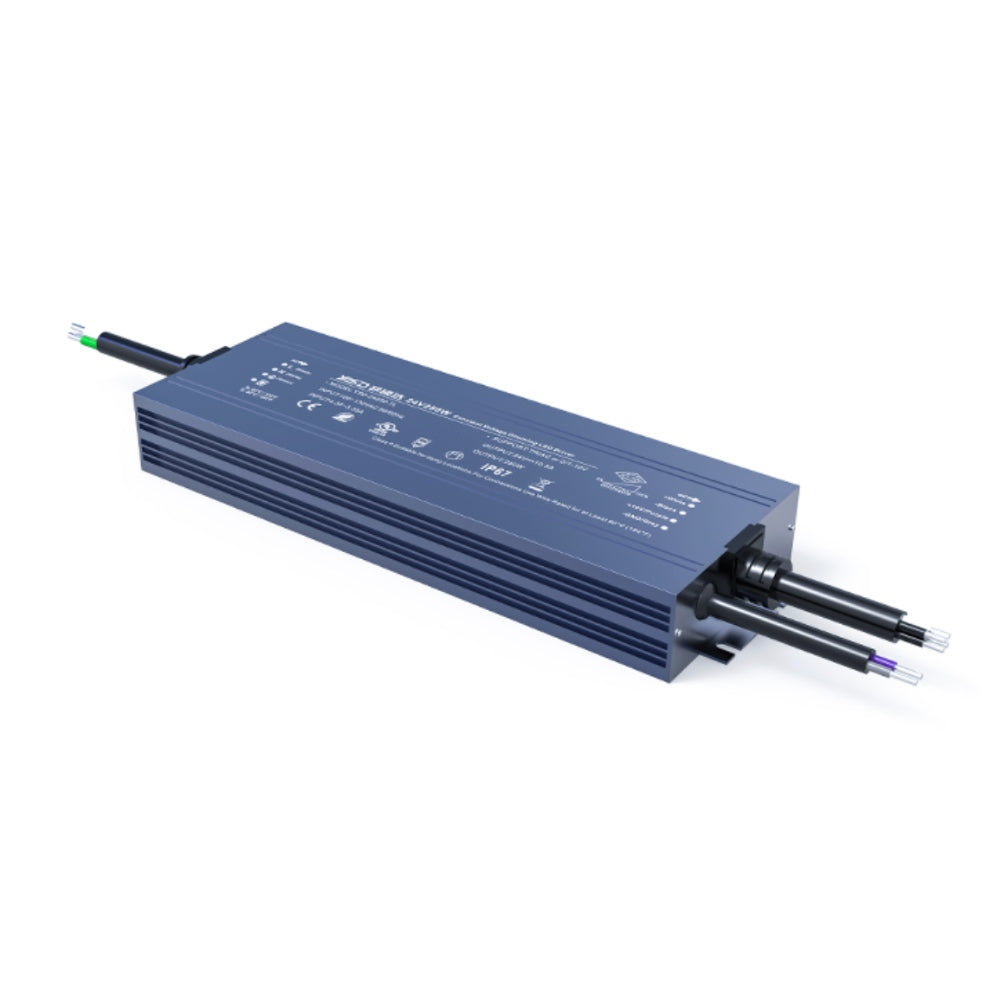

24V IP67 Power Supply Driver Constant Voltage 1000W
In stock
Description
Universal AC input/full range(175-277VAC)
Built in active PFC function
Efficiency up to 93%, super thin and small size.
Protections:short circuit/over load/over voltage/over temperature
1P67 design for indoor or outdoor installation
It can be used in dry, wet and rainy environment
Cooling by free air, high reliability
Up to 50000-hour life time
Suitable for internal lights application for I /I/I.
Widely used in LED lighting and IT equipment
Do not use it to full capacity, leave about 10% to 15%
Technical information:
Input Voltage: AC 170V - 230V
Output Voltage: DC 24V
Watts: 1000W
constant Voltage
IP rating: IP 67 Waterproof
Warranty: 5 years

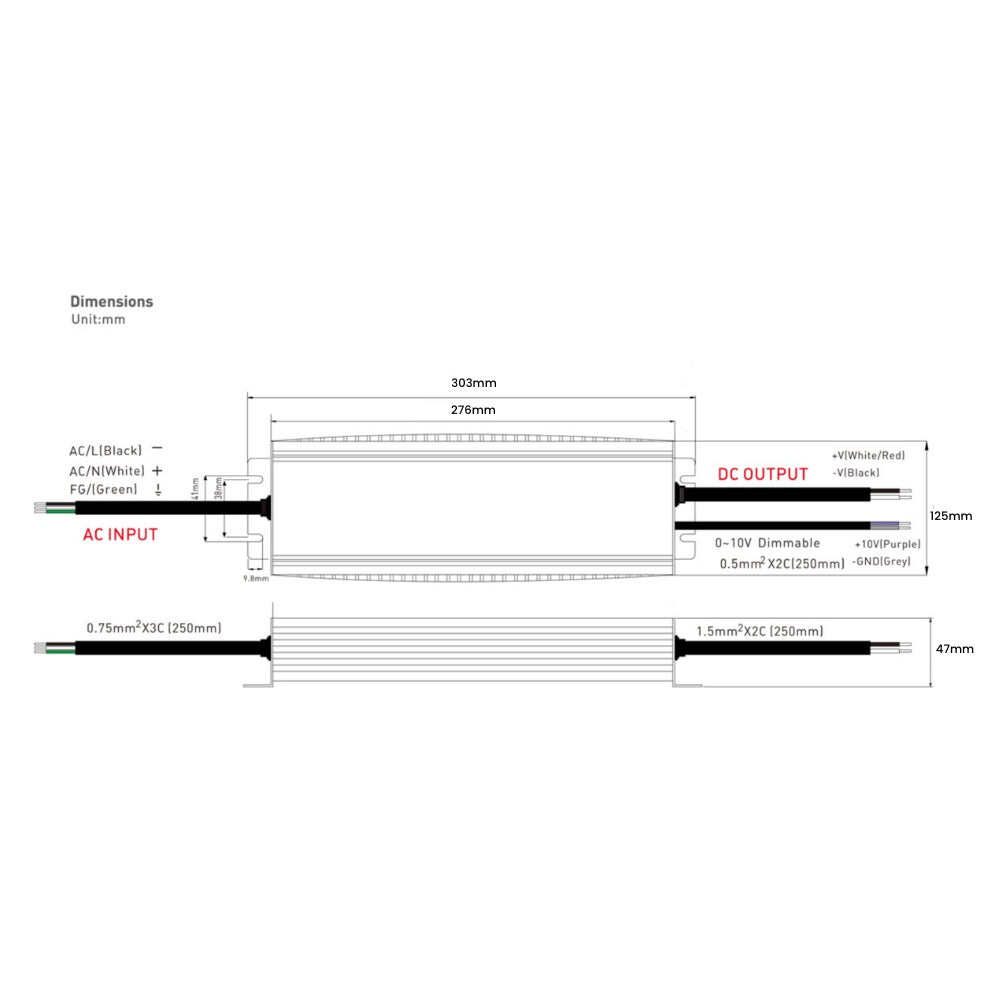

Dimensions:
1000W - 303x125x47mm (LxWxH)
Specifications
- Brand
- ATOM LED
- Product type
- Non dimmable power supply
- Voltage
- Constant Voltage
- IP rating
- IP67
- Dimensions
- 303x90x42.6mm (LxWxH)
- Operating temperature
- '-40°C to 50°C
- Rated life
- 50,000
- Input
- AC 170V/230V
- Output
- DC 24V
- Material
- Aluminium
- Certification
- CE, RoHS, UL
- Warranty
- 5 year warranty
