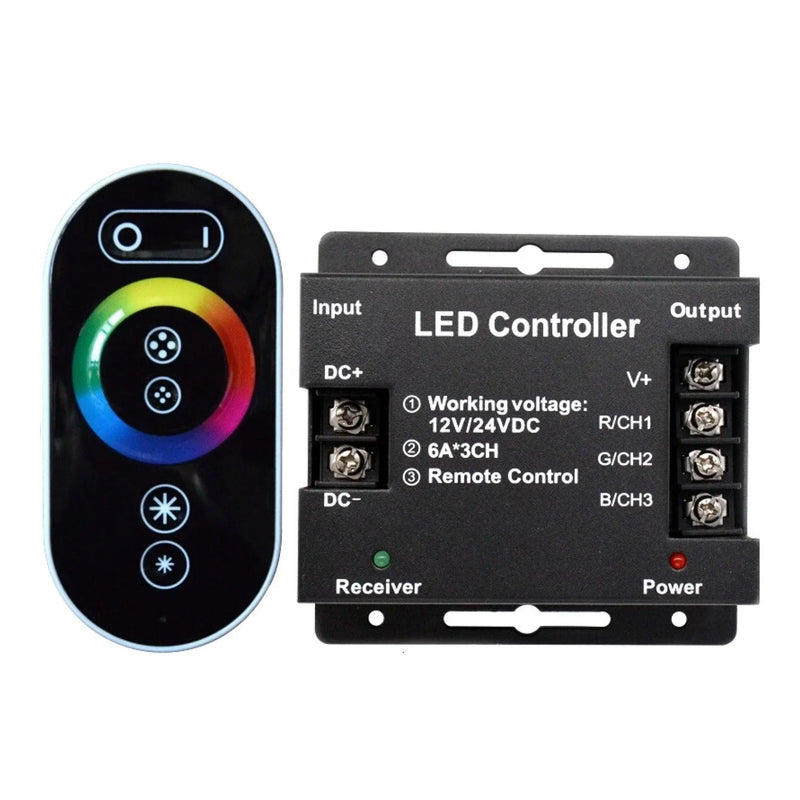

12V/24V RGB LED Strip Controller with Touch RF Remote 18A 3 Channel

Rainbow Touch RGB Controller adopts the advanced micro control unit; it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

• RF TECHNOLOGY: This device adopts the advanced micro control unit and Radio Frequency technology. The signal can penetrate objects of a certain thickness. The controller features no directionality or line of sight to receive a signal from the remote.
• PWM TECHNOLOGY: Adopts advanced PWM technology, capable of controlling various kinds of LED appliances that have the RGB colouring changing feature. For example: RGB 5050 3528 LED strip, automotive LED lighting, LED modules, LED strings and so on.
• TouchPad Controller: Rainbow Touch RGB Controller adopts the advanced micro control unit; it is used for controlling a variety of lamp whose source of light is LED
• Output Current: 6A/CH, Total max 18A with Dimming range: 0-100%

Remote Operation Instruction

• The RF remote touch RGB controller has 4 modes in total and can change its mode by touching the ON key.
• Static colour mode, both colour and brightness are adjustable
• Gradual change mode, both speed and brightness are adjustable
• Hopping change mode, both speed and brightness are adjustable
• White light mode, only brightness can be adjustable

Important – Please Note:
The input voltage of remote control must be the same as RGB strips.
When the colour doesn’t match, for example, it displays blue when touching green, or displays green when touching blue, please check whether the wiring is correct. If not, exchange blue and Green into their right connections.

Package includes
1 x LED Controller
1 x RGB Remote
1 x User Manual

Note:
The input voltage of remote control must be the same as RGB strips. When the colour doesn’t match, for example, it displays blue when touching green, or displays green when touching blue, please check whether the wiring is correct. If not, exchange blue and Green into their right connections.

Product Specification:

• Working temperature: -30-45 ℃
• Supply voltage: DC12V-DC24V
• Output: 3 channels
• Connecting mode: common anode
• Transmission/Receiving frequency: 433.92 Mhz
• External dimension: L86.5 x W55.6 x H22.8 mm
• Colour Mode: 18 Mode
• Output power: <216W/432W
• Loadable Current: 6Ax3CH 18A Max
• Control Mode: Touchable/RF Remote Control
