Silver Aluminium LED Surface Profile 17×8mm, Opal Diffuser – 1 & 2 Metre
In stock
Description

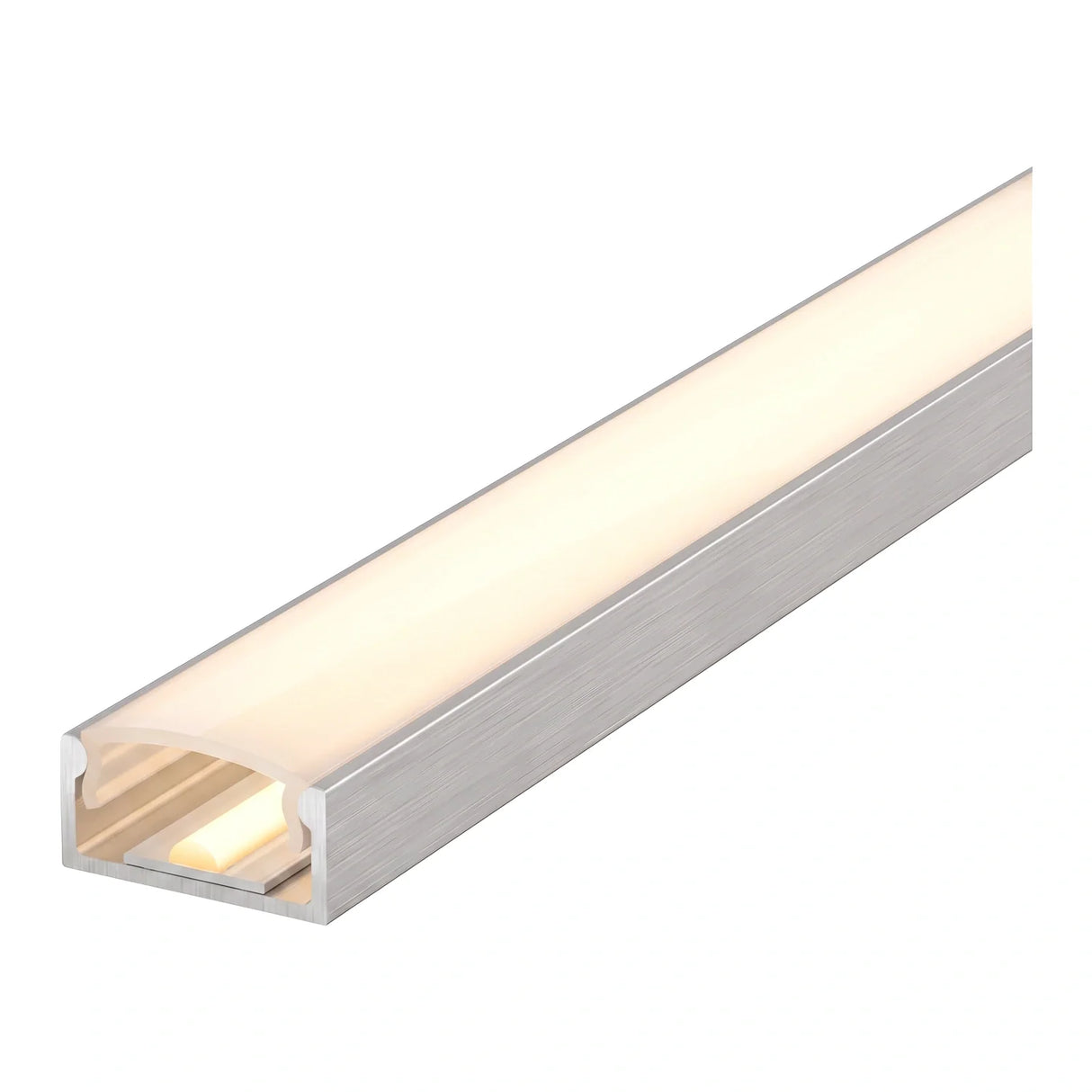

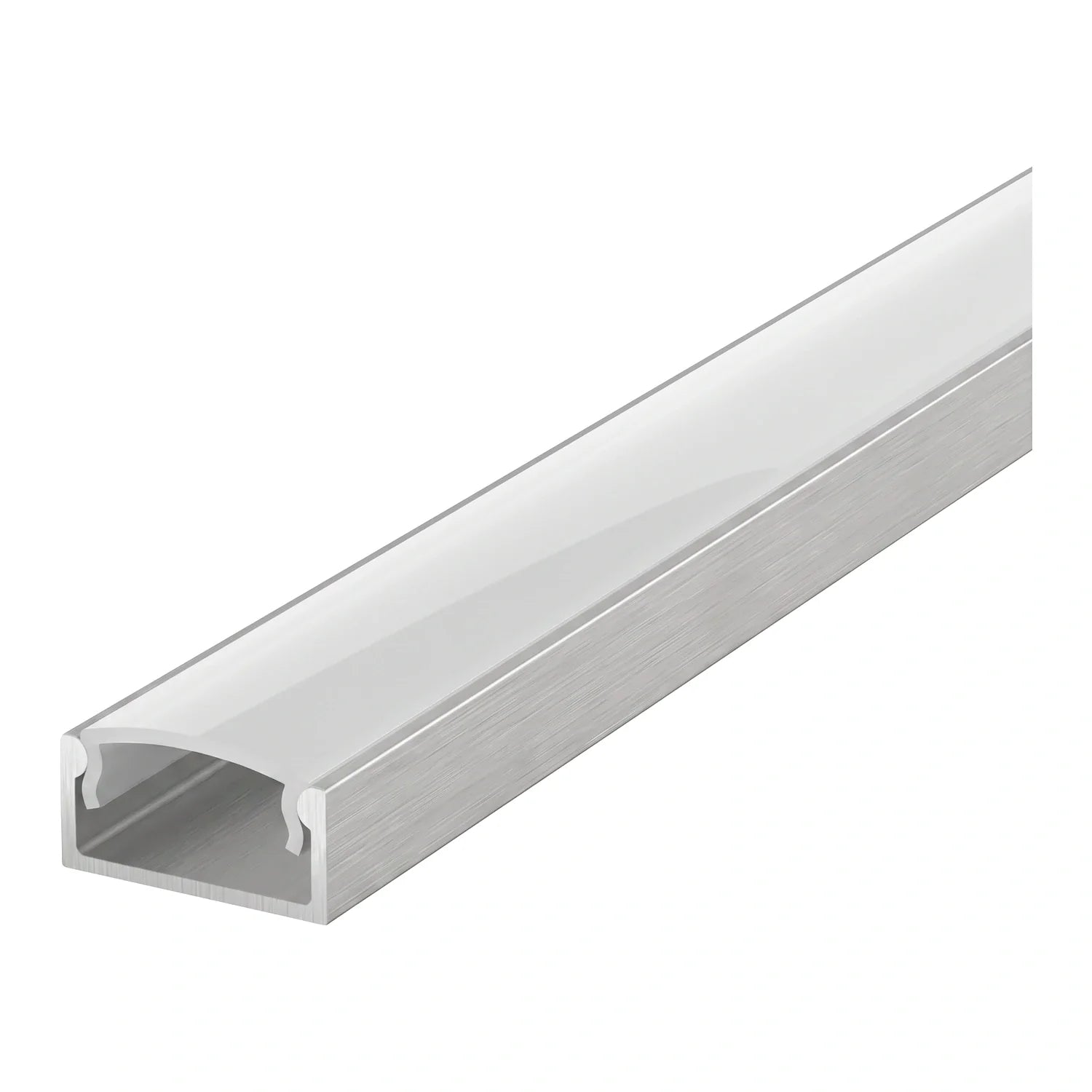

This slim silver 17 × 8 mm aluminium profile surface-mounts LED strip without a routed recess. It accepts LED tape up to 12 mm wide and includes an opal diffuser. Choose a 1 Metre or 2 Metre length.
Choose your length
- 1 Metre: suited to shorter sections and standard profile delivery.
- 2 Metre: reduces joins on longer runs; long-profile delivery applies.
Where to use it
Use this straight IP20 profile for dry indoor surface mounting beneath cabinets, along shelves, inside wardrobes, on stair details and in architectural joinery. The anodised aluminium protects the tape and helps manage heat, while the opal diffuser softens the visible LED points.
Installation
Screw the supplied mounting clips to a flat surface, install the LED strip inside the channel, then fit the diffuser and end caps. Cut the aluminium and diffuser separately with a suitable fine-tooth blade.
What is included?
Silver aluminium profile in your selected length, opal diffuser, end caps and mounting clips. LED strip, drivers and electrical connections are not included.
Explore all LED strip profiles or compare other surface-mount profiles from UK LED Lights.

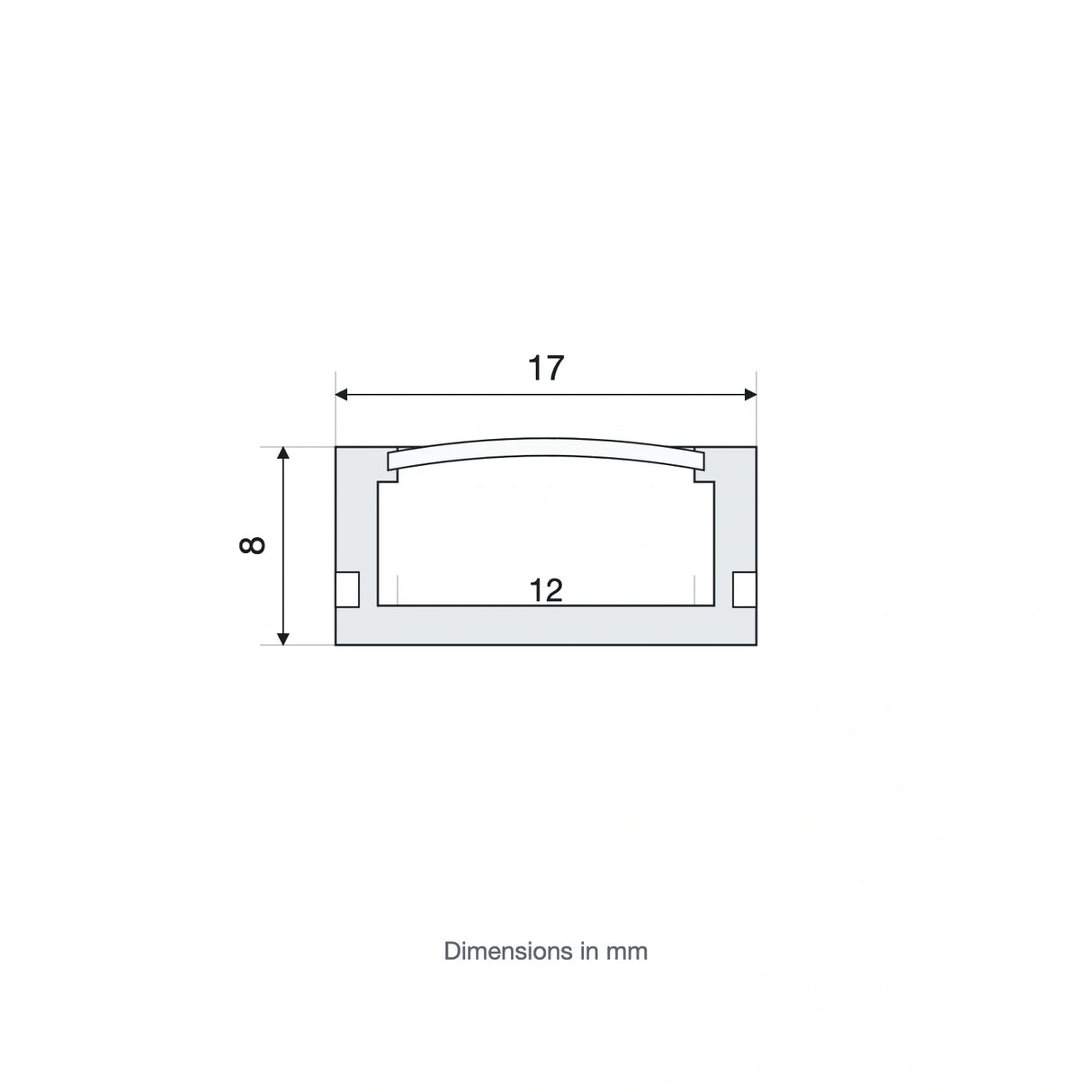

Dimensions
Delivery charges
- 1 Metre: Mainland UK standard delivery is £6.95 on orders under £90. Eligible orders of £90 or more receive free Next Day Delivery.
- 2 Metre: Mainland UK DX delivery is £19.85 per order at every order value, including mixed baskets.
If a Mainland UK basket contains any rigid profile longer than 2 metres, the £34.65 DX rate applies once to the order instead, including mixed baskets and orders over £90. The applicable delivery charge is shown at checkout.
For Northern Ireland and the Republic of Ireland, delivery of rigid profiles 2 metres or longer is £39.85 per order by DX. See our delivery information for charges and exceptions.
Specifications
- Brand
- ATOM LED
- Product type
- Aluminium Profile
- Light colour
- Silver
- Voltage
- DC Voltage
- IP rating
- IP20
- Dimensions
- 17mm x 8mm
- Width
- 17mm
- Depth
- 8mm
- Material
- Anodised aluminium, opal diffuser
- Warranty
- 7 Years
Technical Documents
-
Technical Documents
Shipping & Returns
Delivery
We use DPD, Royal Mail and DX. Available services, costs and delivery estimates are shown at checkout for your address. Mainland UK rigid profiles exactly 2m are £19.85 per order by DX; rigid profiles longer than 2m are £34.65 per order by DX, including mixed baskets and orders over £90. To Northern Ireland and the Republic of Ireland, rigid profiles 2m or longer are £39.85 per order. Established bendable-profile and flexible-cover exceptions remain on their applicable services. Made-to-measure products may require additional preparation time.
Returns
Eligible unused standard products can be returned in line with our published policy. Products cut or prepared to your measurements cannot be cancelled or returned once preparation has started unless they are faulty.
Read our shipping policy and returns policy before ordering a custom-cut item.
