Description
Description

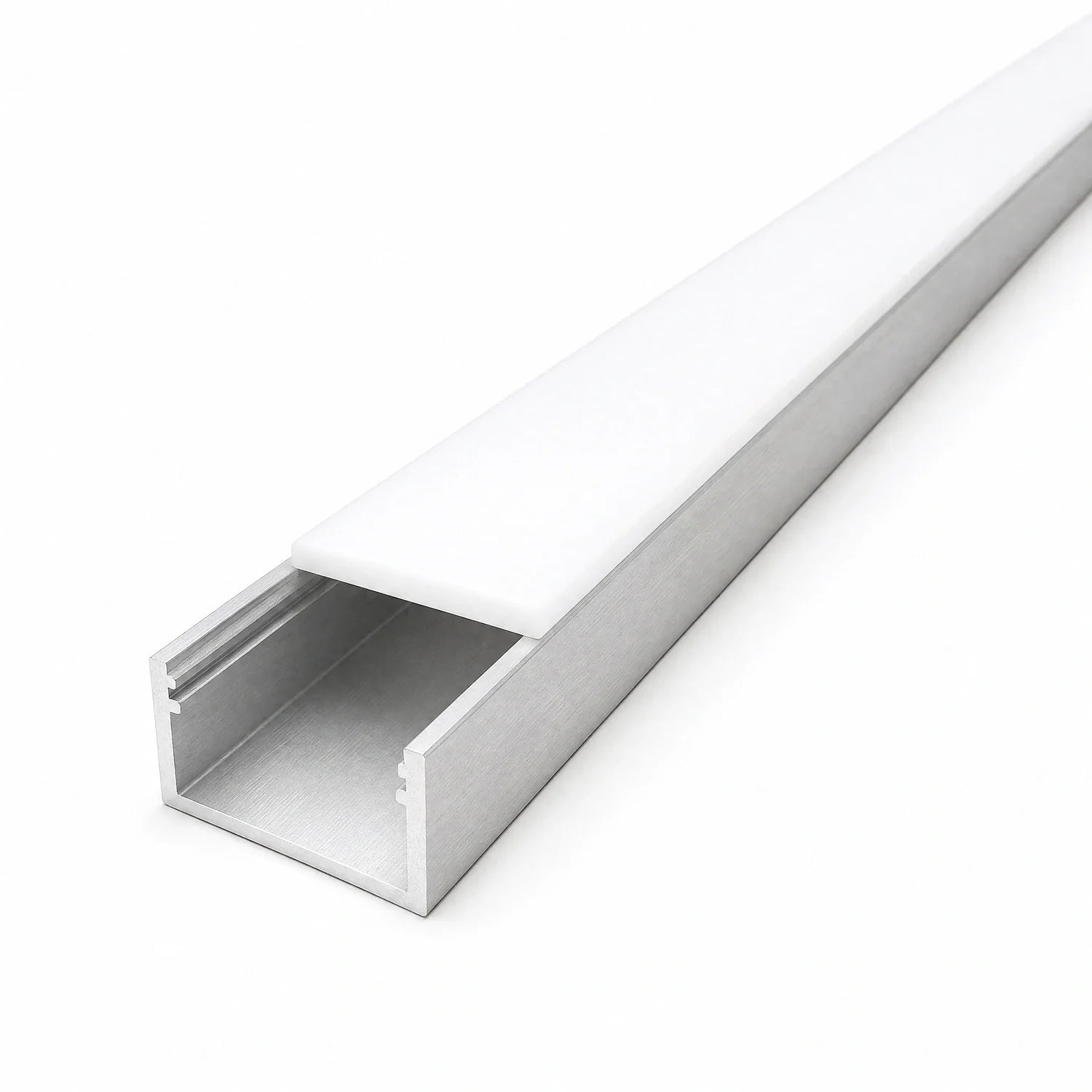

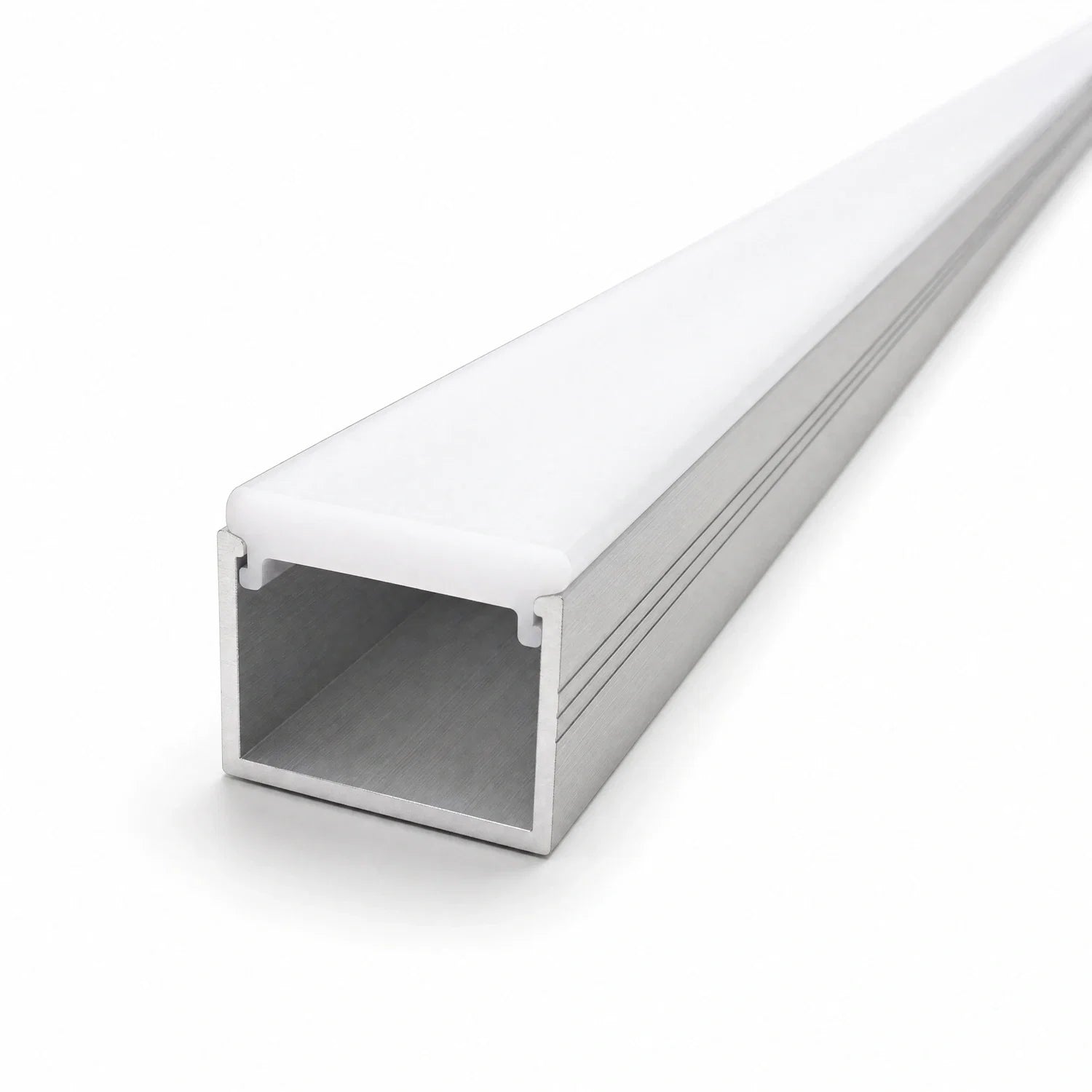

CN635 is a deep 32.2 x 20mm aluminium floor channel that recesses LED neon flex into paving, decking, driveways and door thresholds so the opal cover finishes flush with the surface. The 26mm internal channel takes wide neon flex that shallower channels will not hold, and the natural silver anodised body holds the flex straight and protects it once set into the floor.
Specification
- Model: CN635 floor-in aluminium channel.

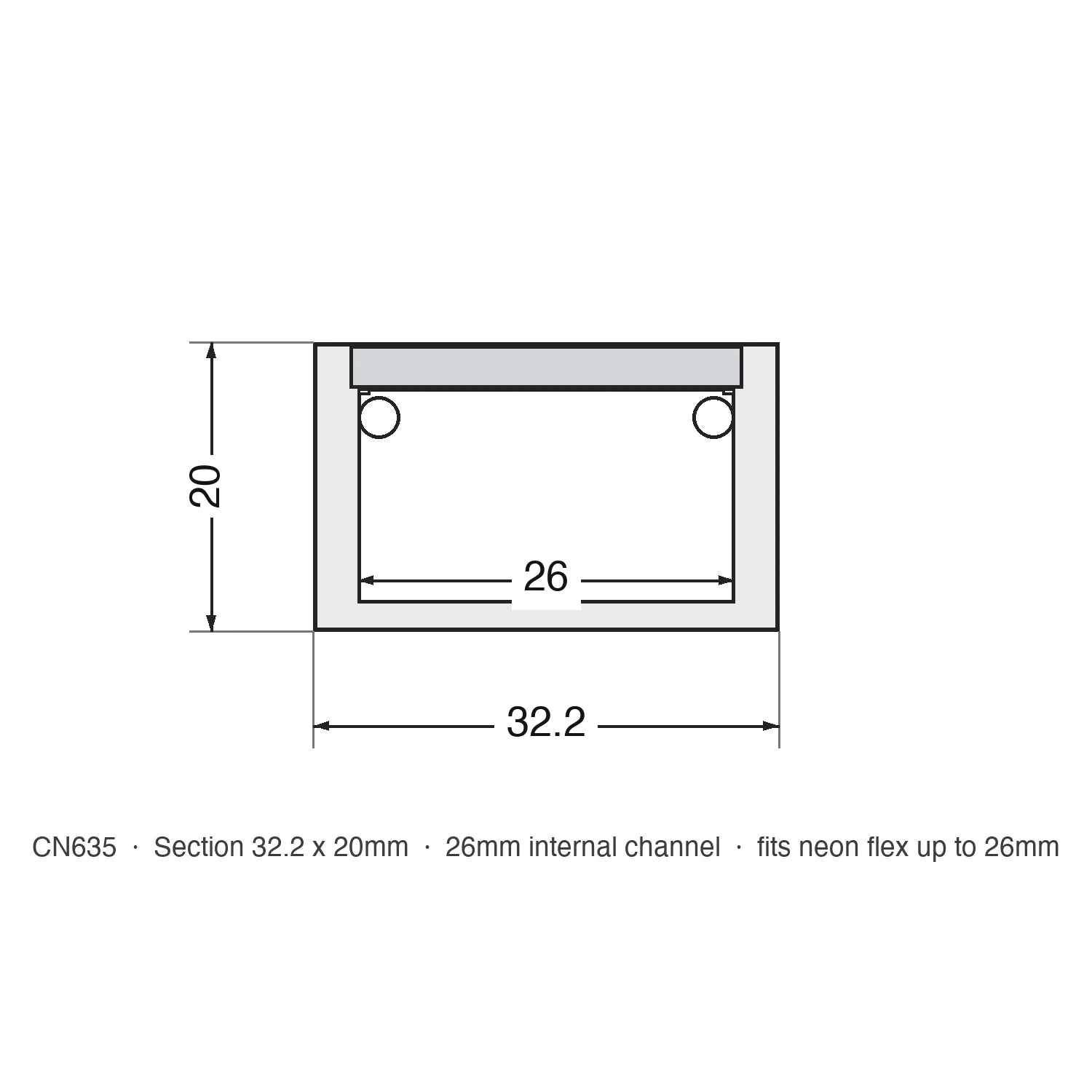

- Section: 32.2mm wide x 20mm high, with a 26mm internal channel.
- Takes: LED neon flex up to 26mm wide.
- Length: 2 metres per piece; custom lengths made to measure on request.
- Body: natural silver anodised aluminium. Cover: opal, push-in.
- Guarantee: 7 years.
Where the water protection comes from
The channel is an open extrusion with a push-in cover, so as a housing it is IP20 and it is not sealed. In a floor installation the water protection comes from the IP67 or IP68 neon flex sealed inside it, while the aluminium provides mechanical protection and the flush finish. Specify flex rated for the site, and keep drivers and joints indoors or in a rated enclosure.
Loading and traffic

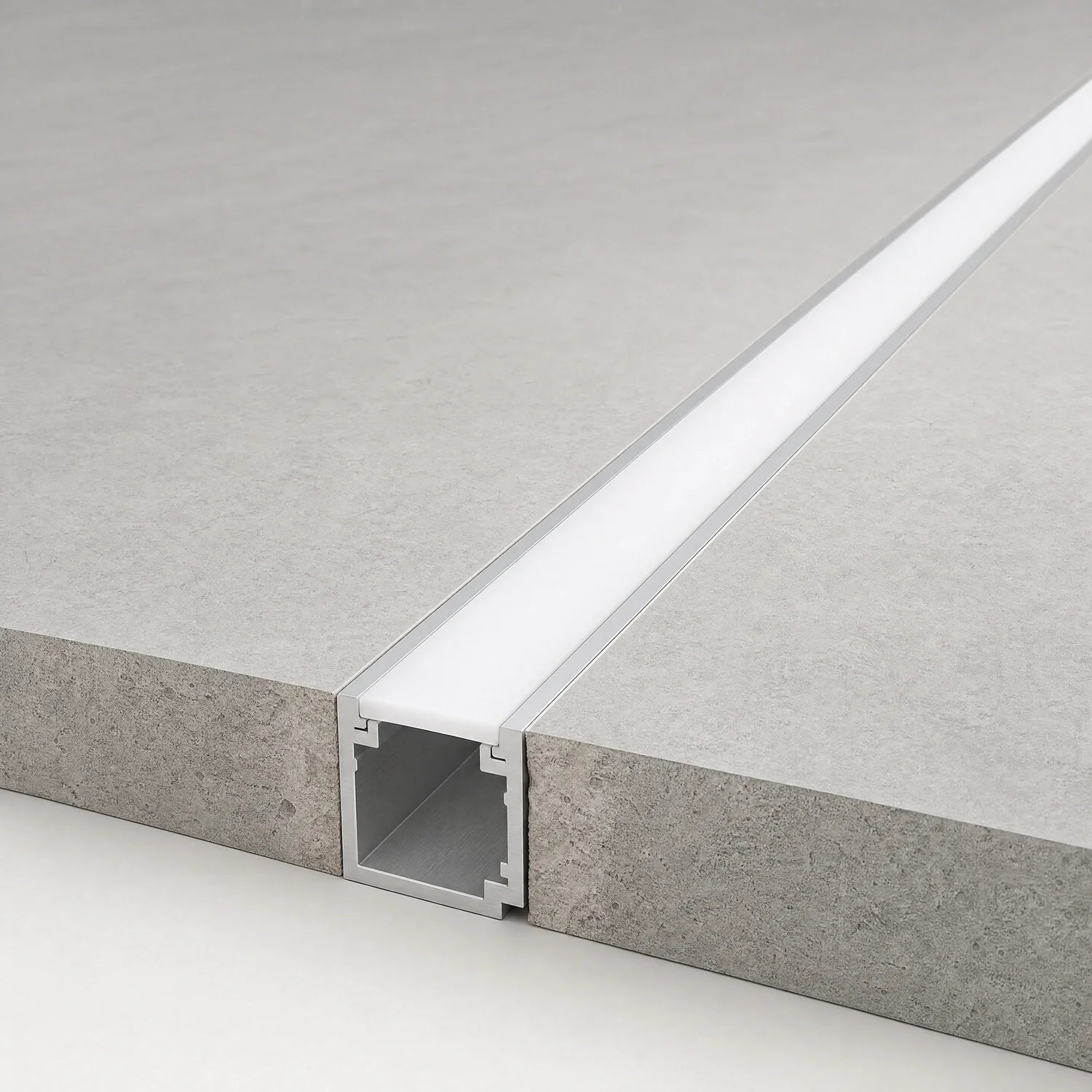

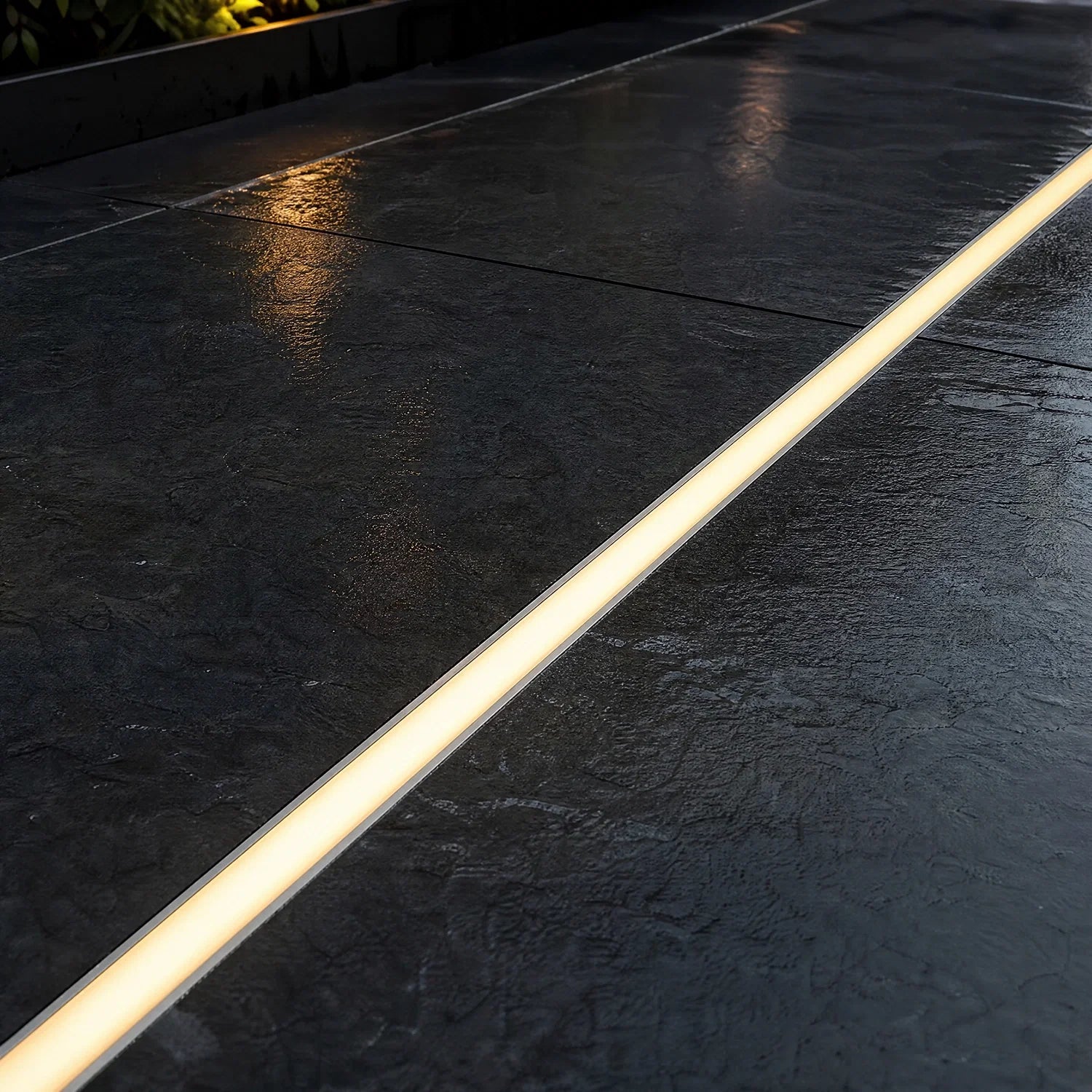

Set flush into paving, decking or concrete, the cover sits level with the finished surface and is walked over. We hold no published load rating or EN classification for this channel. If the run crosses a driveway or any surface that carries vehicles, confirm the substrate build-up and the loading with your installer before you specify it.
Installation notes
- Support it fully: bed the channel continuously in sand, mortar or a routed timber slot, not on spot fixings.
- Plan the cable exit: bring the tail out at the run end through a gland or conduit.
- Keep water moving: lay the surface so it drains away and water does not stand on the cover.
NO FREE DELIVERY ON 2 METRE PROFILES.
Delivery on this 2-metre profile is £19.85, on every order, at any order value. Free delivery never applies to 2-metre profiles.
2-metre profiles are a long, rigid, oversized parcel and travel on a dedicated long-goods service. If your basket contains a 2-metre profile alongside 1-metre profiles, LED neon flex or any other product, the £19.85 charge applies to the whole order however much you spend. Next-day and timed services are not available on 2-metre profiles. Need a shorter length? Our 1-metre profiles ship at £6.95, free over £90.
What goes inside it

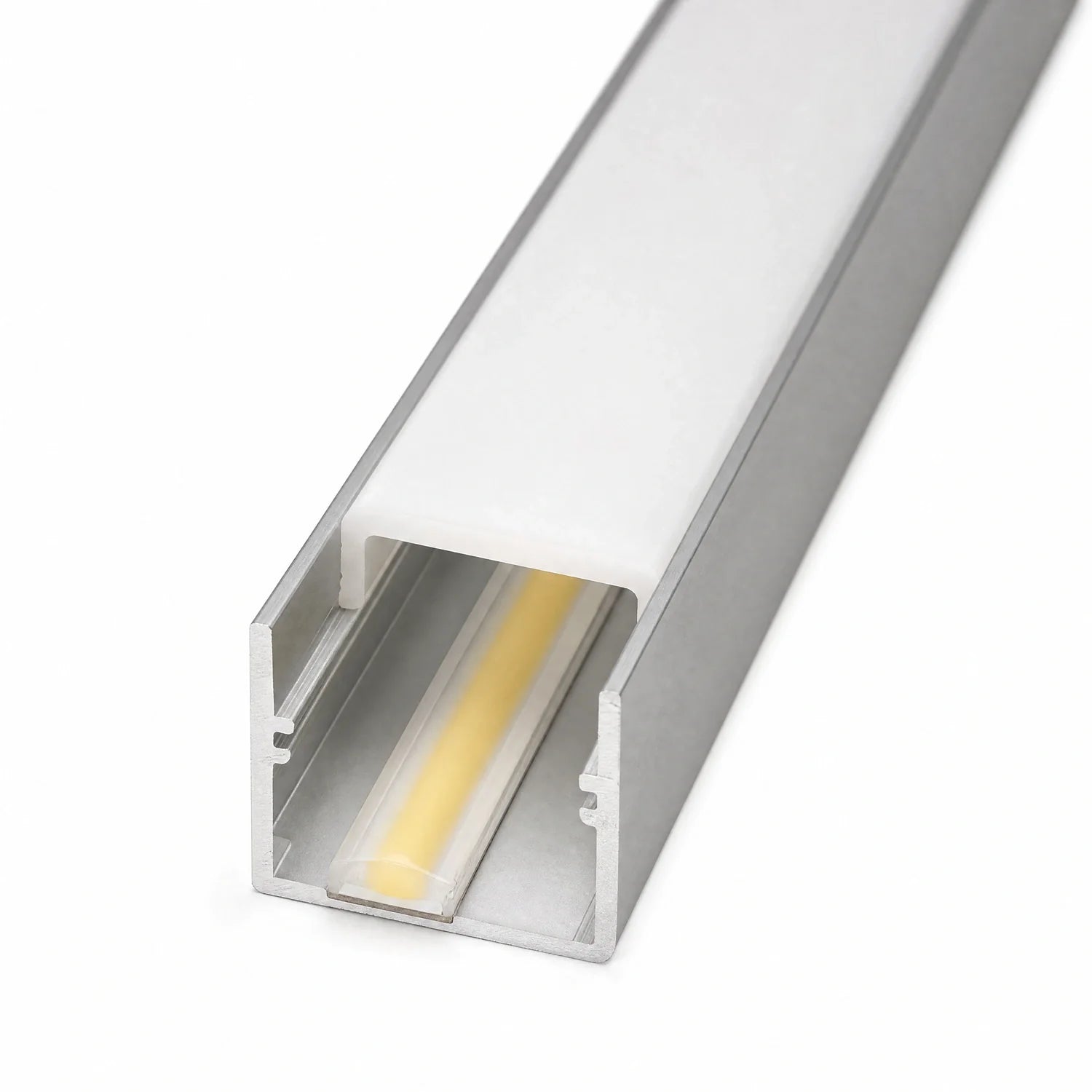

The channel is the housing; the sealed strip or neon flex inside is what makes the run weatherproof. The 26mm internal channel takes either an IP67 COB strip or IP67/IP68 neon flex, so pick the light source for the run length and the exposure.
- Runs up to 20 metres: 24V IP67 COB strip at 480 LEDs/m, available as a single 20-metre run in 2700K, 3000K, 4000K and 6000K. One feed, no join, no visible voltage drop across the length.
- Runs up to 30 metres: 48V IP67 COB strip at 480 LEDs/m, as a single 30-metre run. At 48V the voltage drops at roughly half the rate of 24V over the same distance and wattage, which is what buys the extra length on one feed.
- Damp or splashed locations: IP67 neon flex — rated for temporary immersion, which covers patios, decking and garden runs.
- Standing water or full exposure: IP68 neon flex — rated for continuous submersion, for thresholds and driveways that pond in heavy rain.
- Browse the outdoor range: outdoor COB LED strip and outdoor LED neon flex.
IP65 is splash-resistant only and is not suitable for a floor recess that can hold water. Specify IP67 as the minimum here, and IP68 anywhere the channel may sit in standing water.
