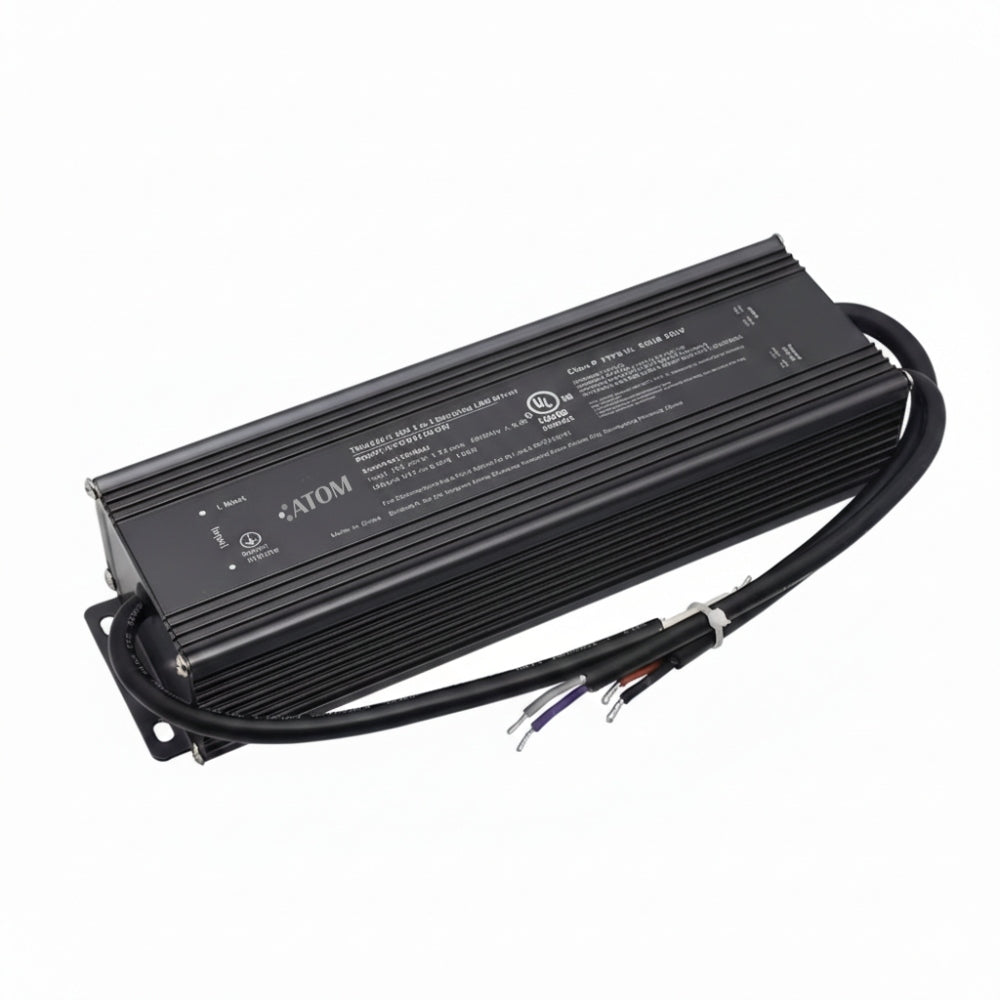

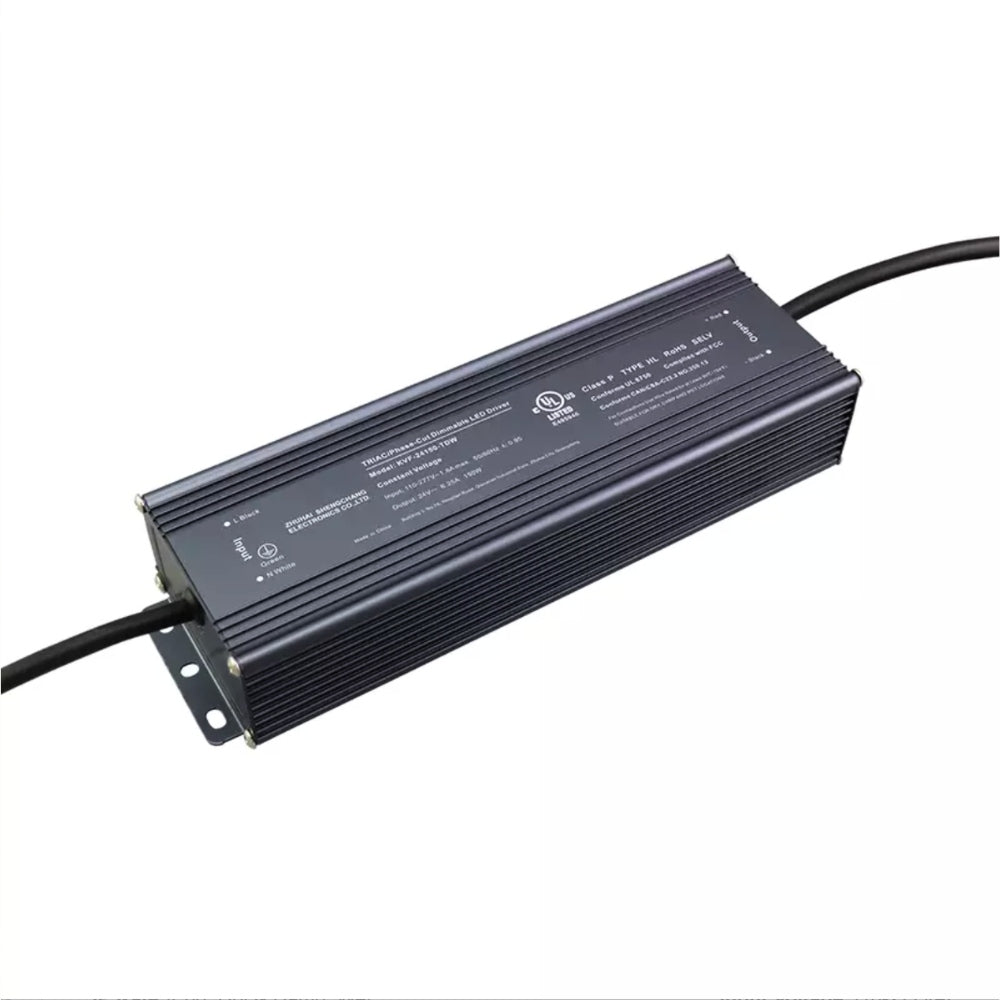

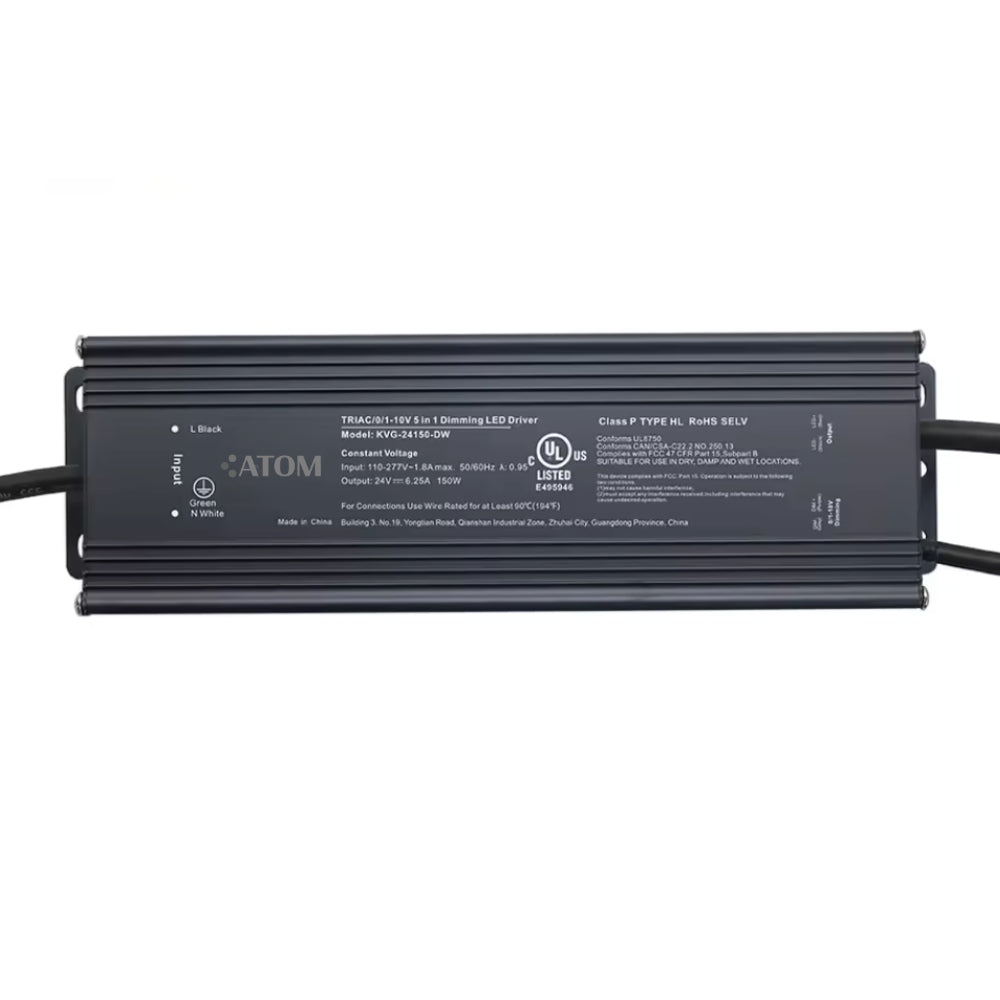

80W 24V 5-in-1 Triac Dimmable LED Power Supply – IP66 Constant Voltage

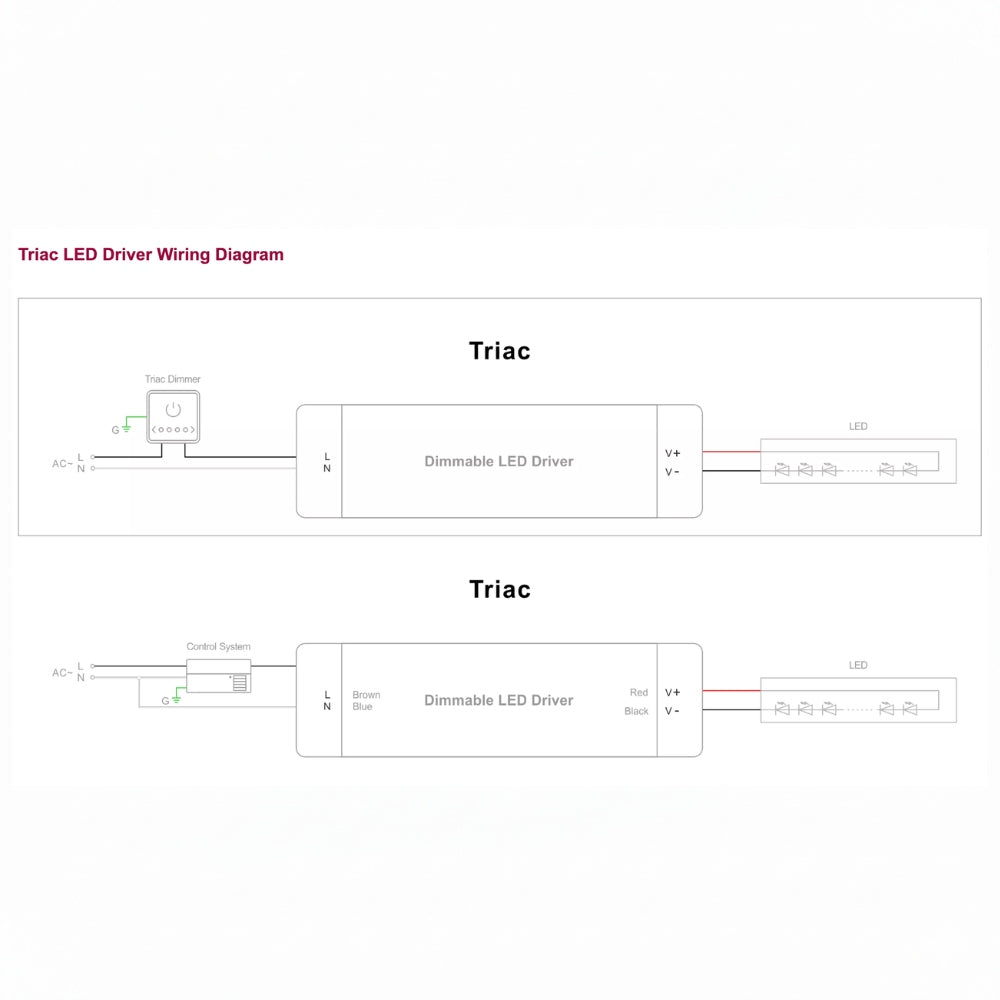

This 80W 24V Triac dimmable LED power supply is designed for small to medium LED installations requiring smooth dimming and reliable performance. Featuring advanced 5-in-1 dimming technology, it supports Triac (leading and trailing edge), 0–10V, 1–10V, potentiometer and 10V PWM control in one compact and versatile unit.

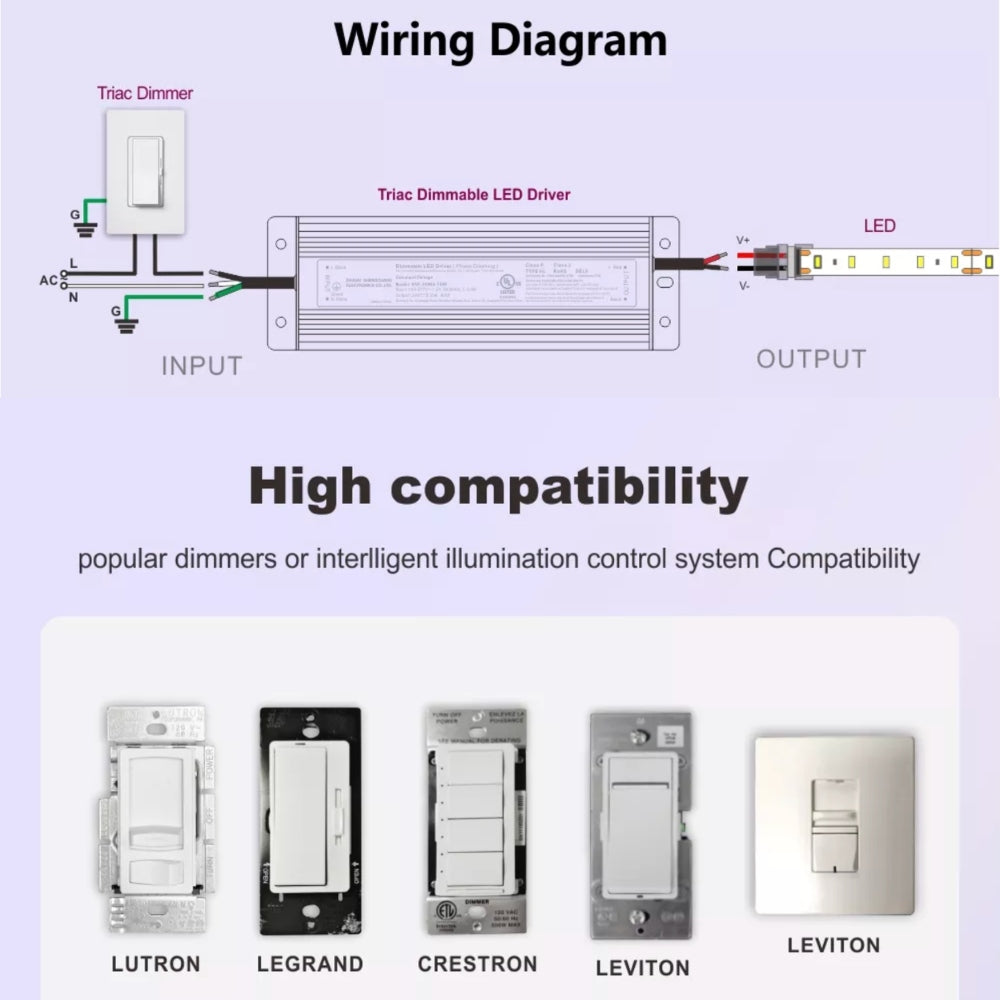

Built for wide compatibility, the driver integrates seamlessly with major dimmer brands and lighting control systems including Lutron, Legrand, Crestron and Leviton. It delivers smooth 0–100% flicker free dimming, making it ideal for residential, commercial and architectural LED strip lighting projects.
The unit operates on a universal AC 200V–240V input range and provides a constant 24V DC output at 80W with a maximum output current of 3.34A. Its isolated design enhances electrical safety and long-term durability. The IP66 rated housing allows installation in dry, damp and wet locations, suitable for both indoor and outdoor lighting applications.
With efficiency up to 93.5% and a power factor ≥0.98, this driver improves power quality, reduces harmonic distortion and supports energy-efficient LED systems.
Specifications:
Model: Triac Dimmable LED Power Supply
Output Power: 80W
Output Voltage: 24V DC
Output Current: 3.34A
Output Type: Constant Voltage
Dimming Type: Triac (Leading & Trailing Edge Compatible)
Input Voltage: AC 200V–240V
Isolation: Isolated Design
IP Rating: IP66 (Dry, Damp & Wet Locations)
Certifications: UL & cUL, FCC, Class 2, CE, RoHS, REACH
Size: 230x70x43mm (LxWxH)
This 80W 24V constant voltage Triac LED driver is a reliable solution for smaller LED strip installations requiring stable dimming and durable outdoor-rated protection.
