Digital Pixel RGB Flex is a flexible light that shows colour patterns you can control. You do not get one solid colour along the whole length. You control sections called pixels. Each pixel changes on its own. That is why people also call it Addressable Pixels or Individually Controllable LEDs.
You see it in signs, camper builds, caravans, display walls, bar fronts, and garden features. It looks like neon when it uses a diffused cover. People often call that Programmable Neon.
The first time I used it, I put it around a small display shelf. I wanted a soft glow. I got a fast strobe instead. I wired the power wrong and I picked a controller with the wrong settings. It looked bad. It also taught me what actually matters.
This guide keeps it simple so you skip the mistakes.
What makes it different from normal RGB strip
Normal RGB strip works like a single lamp that happens to be long. You set one colour and the whole strip follows it.
Digital Pixel RGB Flex works like a line of tiny lamps. The controller sends instructions down the strip. Each pixel reads the part meant for it then passes the rest along. Adafruit explains this style as individually addressable pixels controlled with a single wire data signal on products based on WS2812 and WS2811 drivers.
That one detail changes everything. You can create Animation Effects like a chasing line, a colour wipe, a slow rainbow, or a moving warning pattern.
What WS2811 Neon means
WS2811 is a common driver chip used in addressable lighting. You will see it listed on product pages as WS2811 Neon or WS2811 pixel neon.
The WS2811 datasheet describes it as a three channel LED driver that uses a single wire data method. It also lists two common data rate patterns, 400 kbps and 800 kbps.
In real installs, the name matters because it tells you what controller and settings you need. It also hints at how the pixels group together on some products. You do not need to memorise the details. You just need to match the controller to the driver type.
What Programmable Neon looks like
Neon flex style lighting hides the point dots you see on bare strip. It uses a diffuser, often silicone, to spread the light. You get a smooth line instead of a row of bright points.
This is where Digital Pixel RGB Flex looks its best. The pixel control gives motion and patterns. The neon style cover keeps it calm and clean.
What you need for a working setup
You need more than the strip. Plan the full chain.
1) The Digital Pixel RGB Flex itself
Pick an outdoor rated version if you install it outside or under a caravan awning. Water and dust protection matters.
2) A controller
The controller sends the data that drives the Addressable Pixels. Some are simple remote control boxes. Others connect to apps. Some use a microcontroller.
A popular option in hobby builds is the Adafruit NeoPixel library which supports single wire addressable pixels like WS2812 style products.
You do not need to code if you do not want to. You can choose a controller with built in patterns.
3) A power supply
Your power supply must match the strip voltage and provide enough current. Too small and your lights dim, flicker, or reset.
4) Wire and connectors
Use wire that suits the current and distance. Use waterproof connectors for outdoor and caravan use.
5) Mounting and protection
Neon flex often needs clips or a channel. You also need end caps and sealant if you cut the strip.
The real pros of Digital Pixel RGB Flex
You control the look in a way normal strip cannot
You get motion. You get patterns. You get segments that shift at different speeds. This is the main reason people choose it.
You can keep it subtle
People hear “programmable” and think bright party lights. You can run it at low brightness with slow movement. It becomes a soft accent.
It helps with wayfinding and safety
In a caravan, you can set a gentle pathway glow. You can set a door step marker. You can also set a warning pattern when you pack up at night.
It works well for signs and outlines
If you want letters, shapes, or trim lines, neon style flex gives a clean edge.
The real cons you should know before you buy
Setup takes more thought
You need to match voltage, controller type, and wiring. You also need to think about power drop on long runs.
Some products cut only at certain points
Many pixel products let you cut at marked sections only. If you cut in the wrong place, that section stops working.
Long runs need extra power points
Addressable strips can dim toward the end if you feed power from one side only. This happens because voltage drops along the copper traces and wiring.
QuinLED explains power injection as adding extra power feed points along the strip, and notes it becomes important fast on 5V addressable strips.
Bad controllers make the light look rough
Cheap controllers can create flicker, harsh steps in fades, or unstable colours. You do not notice it in a quick demo. You notice it every night.
How to choose the right Digital Pixel RGB Flex for your job
Step 1: Decide where you will use it
Ask yourself this first.
-
Inside a caravan or motorhome
-
Outside under an awning
-
On a sign or panel
-
Around steps or floor edges
-
Along a ceiling line or shelf
This decides your protection level, mounting method, and brightness needs.
Step 2: Pick a voltage that fits your run
Short runs work well with common low voltage options. Longer runs often work better when you plan power feeds carefully.
Do not guess. Measure the full path the strip will follow, including corners.
Step 3: Check the driver type
If you want WS2811 Neon, make sure the controller supports WS2811 style signal.
If you already own a controller, match the strip to it. If you already own the strip, match the controller to it.
Step 4: Decide how smooth you want the light line
If you want a clean neon look, choose a diffused style. If you want visible pixel points for a retro look, choose a bare pixel strip.
Step 5: Decide how you will control it day to day
Be honest about how you live.
If you want quick changes from the sofa, choose a remote or app controller.
If you want a custom show, choose a controller that supports detailed patterns.
A simple wiring plan you can follow
This section saves you the most time.
1) Start with a bench test
Before you mount anything, test it on a table.
-
Connect the controller to the strip
-
Connect the power supply
-
Run a basic solid colour
-
Run a slow pattern
If it fails here, it will fail in the vehicle or on the wall.
2) Keep data wiring clean
Route the data wire away from noisy power cables where you can. Keep connections firm. Loose data causes random colours and glitches.
3) Plan your power feeds
If your strip run is long, plan extra power points. This keeps brightness even.
QuinLED’s guide shows why power injection matters, especially on addressable strips where the current draw rises with brightness and patterns.
4) Add protection for outdoor and caravan installs
Seal cut ends. Use waterproof connectors. Keep your power supply in a dry ventilated spot.
5) Set a sensible brightness limit
Full brightness looks impressive for ten seconds. It also increases heat and power draw. Most installs look better at lower levels.
Common problems and quick fixes
The end of the strip looks dim
You need extra power feed points closer to the dim section. You also need thicker wire on longer runs.
The strip flickers when patterns move fast
Check power first. Many flicker issues come from voltage sag when the pattern changes quickly. Then check data connections.
Colours look wrong
Confirm the colour order in your controller settings. Some strips use a different internal order.
Random pixels flash
Data line noise or a loose connector often causes this. Re seat connectors. Shorten the data run if you can.

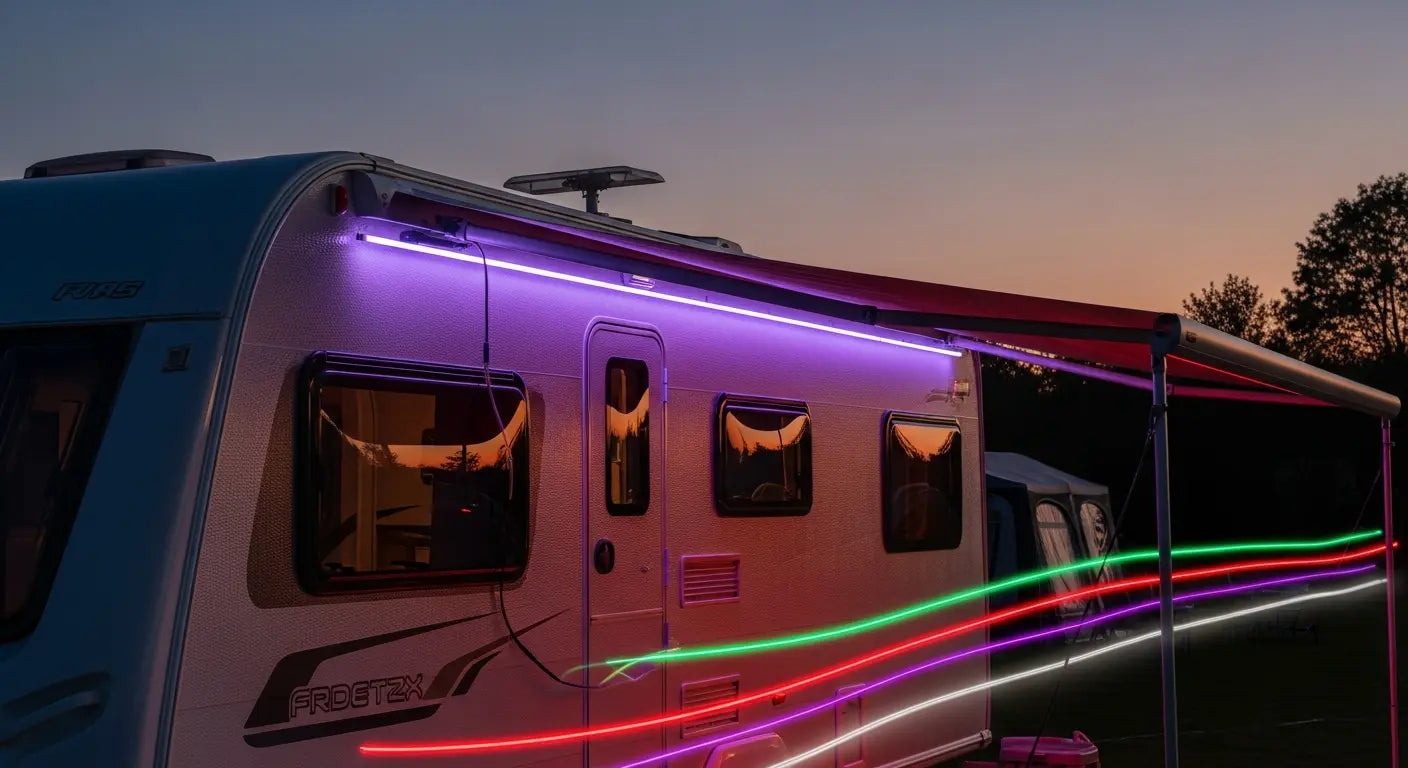

How Digital Pixel RGB Flex fits a caravan build
Caravans have tight spaces and lots of vibration. That changes your priorities.
You want secure mounting so it does not peel off in heat.
You want protected wiring so it does not snag.
You want easy control so you actually use it.
Here is a setup that works well in real life.
-
Use neon flex under the awning rail for a smooth line
-
Use a second short run for step lighting
-
Use a controller with a simple remote
-
Set two presets, one soft warm tone, one brighter work light
When I did this on a small camper, the step lighting helped the most. It stopped the late night foot slip. The awning glow felt nice too. It made the space usable without blasting the whole pitch.
A balanced review you can use before you buy
Digital Pixel RGB Flex feels like a big upgrade when you come from normal strip. It gives you control and movement with a clean look.
You also take on more setup work. You need the right controller. You need a plan for power. If you rush it, you get dim ends and glitchy patterns.
If you want a smooth neon line with simple presets, you will enjoy it.
If you want a plug in strip that always works with no planning, you will get frustrated.
Where UK LED Lights fits in
UK LED Lights focuses on LED strip and neon style products plus the parts you need to install them. That includes drivers, controllers, connectors, and mounting channels. When you buy Digital Pixel RGB Flex, those parts matter as much as the strip. Getting them from one place helps you match the system without mixing random components.
Quick checklist before you install
-
You tested the strip and controller on a table
-
You matched voltage across strip and power supply
-
You confirmed driver type such as WS2811 Neon
-
You planned power feed points for long runs
-
You sealed ends and used the right connectors
-
You set a brightness limit you will actually use
FAQs
What are Addressable Pixels in Digital Pixel RGB Flex
Addressable Pixels are sections of the strip that you control on their own. Each section reads the data meant for it then passes the rest along. This lets you run patterns and movement.
What does Individually Controllable LEDs mean in real use
It means you change colour on one part of the strip without changing the rest. You can make a chasing line, a moving fade, or a warning marker.
Is WS2811 Neon the same as normal RGB neon flex
No. Normal RGB neon flex changes as one solid length. WS2811 Neon uses a driver method that supports pixel control and common data rate patterns listed in the WS2811 datasheet.
Why do long runs get dim at the end
Voltage drops along the strip and wiring. Add power feed points along the run to keep brightness even. QuinLED explains this as power injection and shows why it matters on addressable strips.
Do you need coding for Animation Effects
No. Many controllers include built in Animation Effects you select with a remote or app. If you want custom effects, you can also use libraries made for single wire pixels like the Adafruit NeoPixel library.
